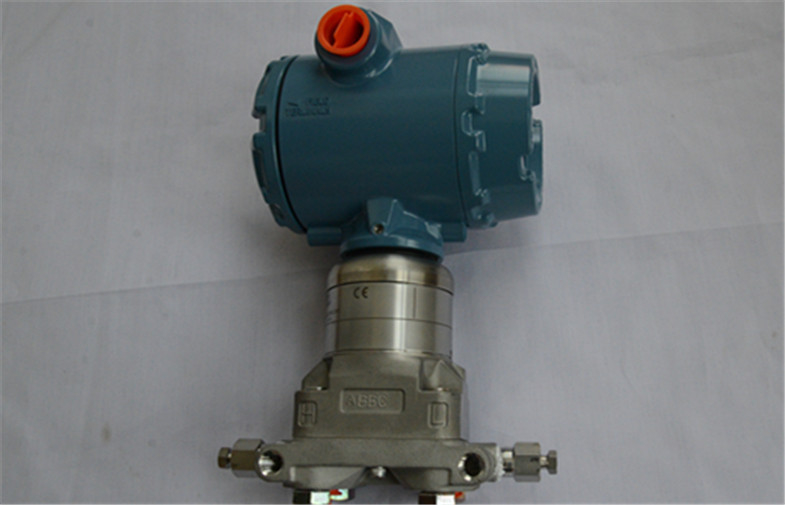

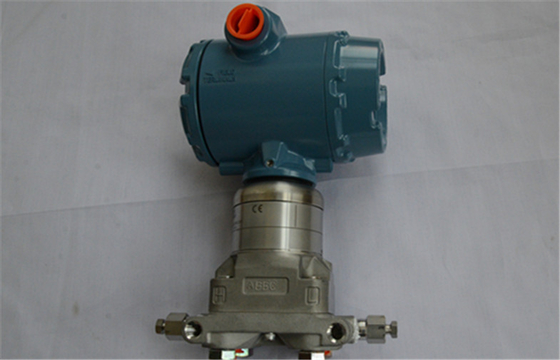

3051SMV transmitter Rosemount , precision pressure transducer
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Process Temp. RTD Interface: | ±0.67 °F (0.37 °C) | Ultra And Ultra For Flow: | 12-year Limited Warranty |
|---|---|---|---|
| Transmitter Type: | Scalable MultiVariable | Rnagedown: | 200:1 |
| Housing Material: | Aluminum,SST | Conduit Entry Size: | 1/2-14 NPT,M20 X 1.5 |
| High Light: | pressure indicating transmitter,smart pressure transmitter |
||
3051SMV transmitter Rosemount , precision pressure transducer
Quick Detail:
- ±0.65% flow accuracy over 14:1 flow turndown
- Variables: Mass, Volumetric and Energy Flow, Totalized Flow, Differential Pressure, Static Pressure (Gage and Absolute), Process Temperature
- 10-year stability, 15-year warranty
- 4-20 mA HART output
Description:
The Rosemount 3051S MultiVariable Transmitter is the most versatile DP Flow product on the market. Learn more about how the wide range of capabilities available with the Rosemount 3051SMV can help better manage your application .
Reduce installation and maintenance costs :
• Reduce pipe penetrations and save on impulse piping and connection systems with three measurements in a single device
• Configure the Rosemount 3051S MultiVariable transmitter in two easy steps using Rosemount’s Engineering Assistant Software
Improve energy management :
• Control air and fuel flow rates more precisely to optimize combustion in boilers and furnaces
• Eliminate additional trips to the field for routine maintenance rounds
Applications:
- Gas and natural gas measurement
- Saturated and superheated steam measurement
- Liquid measurement
Specifications:
|
Measurement Type |
MultiVariable Measurement |
|
Output |
HART, WirelessHART |
|
Reference Accuracy |
Flow: 0.65% Flow Accuracy over 14:1 Flow Turndown Differential Pressure: 0.04% of DP Reading and 200:1 DP Turndown Absolute & Gage Pressure: +_0.055% of span and 200:1 Rangedown Process Temperature RTD Interface: +_0.67 ° F (0.37° C) - Sensor Matching enabled by Callendar-Van Dusen constants |
|
Long Term Stability |
10-year stability |
|
Warranty |
15-year limited warranty |
|
Varialbles |
Mass, Volumetric, and Energy Flow Totalized Flow Differential Pressure Static Pressure (Gage and Absolute) Process Temperature |
|
Available |
Fully Compensated Mass and Energy Flow |
|
Calculation Types |
Direct Process Variable Output |
|
Available |
Differential Pressure, Static Pressure, Process Temperature |
|
Measurement |
Differential Pressure and Static Pressure |
|
Combinations |
Differential Pressure and Process Temperature Differential Pressure |
|
Configuration |
Rosemount 3051SMV Engineering Assistant 6 |
Competitive Advantage:
Gain More Insight with Less Effort :
• Easily expand your WirelessHART network with unparalleled network capabilities
• Track production, demand and usage with repeatable energy flow measurements
