3051 Scalable Industrial Pressure Transducer For gas measurement
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Output: | HART\WirelessHART | Measurement Type: | MultiVariable Measurement |
|---|---|---|---|
| Warranty: | 15-year Limited Warranty | Long Term Stability: | 10-year Stability |
| Available Calculation Types: | Fully Compensated Mass And Energy Flow Direct Process Variable Output | Varialbles: | Mass, Volumetric, And Energy Flow Totalized Flow Differential Pressure Static Pressure (Gage And Absolute) Process Temperature |
| High Light: | industrial pressure transducers,smart pressure transmitter |
||

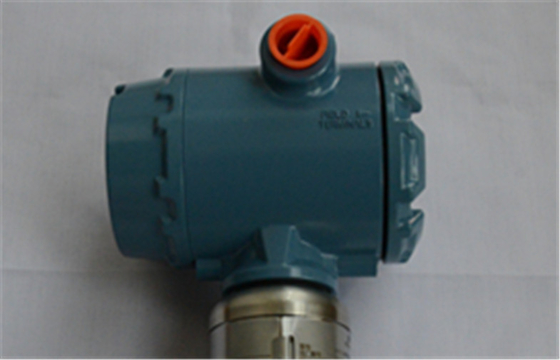

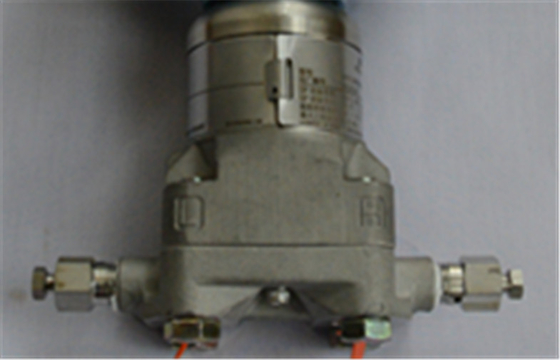

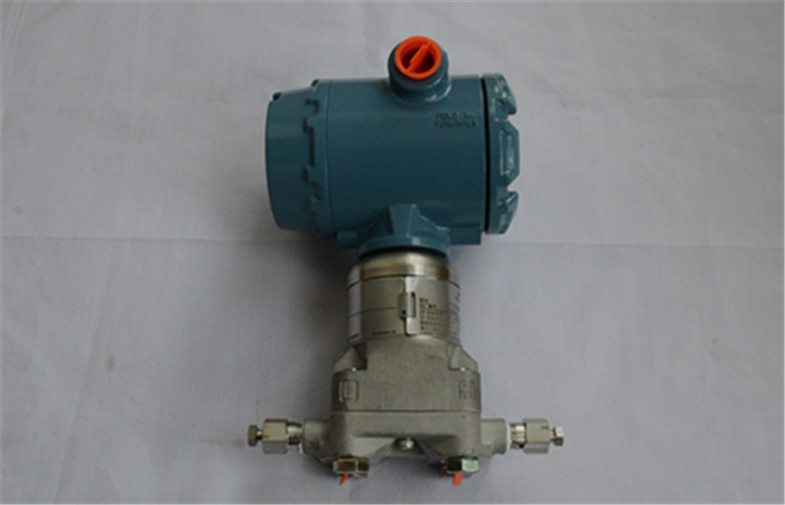

3051 Scalable Industrial Pressure Transducer For gas measurement
Quck Detail:
• Enhance quality and improve productivity
• Enhance availability with proactive monitoring
• Detect abnormal conditions before it causes a major problem
Description:
Better measurement is the key to better control. The 3051SMV delivers unprecedented performance and capabilities by integrating MultiVariable measurement into the industry-leading, scalable 3051S platform.
With its simplified mass and energy flow measurement, accuracy is increased and faster updates are provided through patented, advanced compensation techniques. The result is better and effortless flow optimization for tighter control.
The Rosemount 3051SMV with the Smart Wireless THUM adapter allows easy information access and powers the PlantWeb digital plant architecture by delivering more advanced field intelligence for even better decision-making to help you achieve unparalleled efficiency and productivity.
Applications:
- Gas and natural gas measurement
- Saturated and superheated steam measurement
- Liquid measurement
Specifications:
|
Measurement Type |
MultiVariable Measurement |
|
Output |
HART, WirelessHART |
|
Reference Accuracy |
Flow: 0.65% Flow Accuracy over 14:1 Flow Turndown Differential Pressure: 0.04% of DP Reading and 200:1 DP Turndown Absolute & Gage Pressure: +_0.055% of span and 200:1 Rangedown Process Temperature RTD Interface: +_0.67 ° F (0.37° C) - Sensor Matching enabled by Callendar-Van Dusen constants |
|
Long Term Stability |
10-year stability |
|
Warranty |
15-year limited warranty |
|
Varialbles |
Mass, Volumetric, and Energy Flow Totalized Flow Differential Pressure Static Pressure (Gage and Absolute) Process Temperature |
|
Available |
Fully Compensated Mass and Energy Flow |
|
Calculation Types |
Direct Process Variable Output |
|
Available |
Differential Pressure, Static Pressure, Process Temperature |
|
Measurement |
Differential Pressure and Static Pressure |
|
Combinations |
Differential Pressure and Process Temperature Differential Pressure |
|
Configuration |
Rosemount 3051SMV Engineering Assistant 6 |
Competitive Advantage:
Achieve tighter control of reactions :
• Add new wireless measurement points without stressing your budget or I/O capacity
• Compensate flow readings for changes in line pressure and process temperature
• Maximize insight into process conditions with flow calculations that update 22 times a second
