High accuracy industrial pressure transmitter 3051C for general - gas / liquid
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | industrial pressure transducers,pressure indicating transmitter |
||
|---|---|---|---|

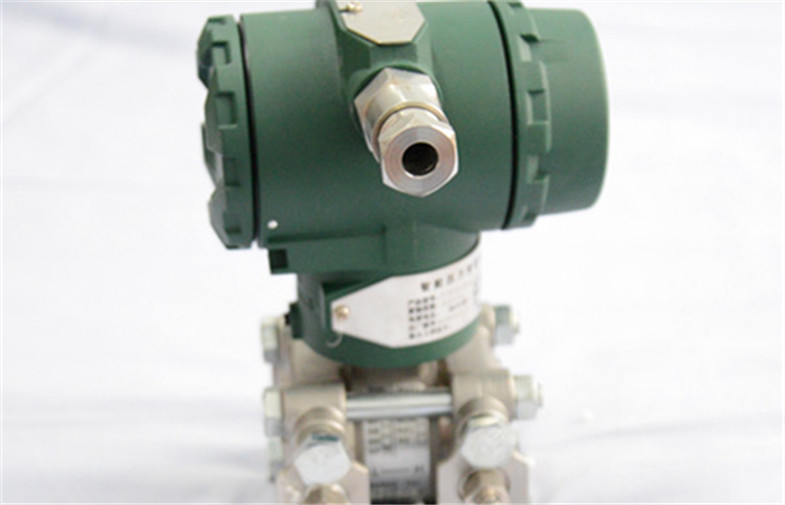

High accuracy industrial pressure transmitter 3051C for general - gas , liquid pressure measurement and control
Quick Detail:
- Performance up to 0.04% accuracy
- Five year installed stability of 0.125%
- Coplanarplatform enables integrated manifold, primary element and diaphragm seal solutions
- Calibrated spans/ranges from 0.1 inH 2 O to 4000 psi (0,25 mbar to 276 bar)
- 316L SST, Hastelloy Æ C276, MonelÆ , Tantalum, Gold-plated Monel, or Gold-plated 316L SST process isolators
Description:
Total performance is the true measure of “real-world” transmitter performance. Through aggressive simulation testing beyond standard IEC 770 testing, the 3051 has proven its ability to maintain performance over a five year period under the most demanding process conditions. Superior transmitter stability reduces calibration frequency to save operation and maintenance costs. Unmatched dynamic performance In dynamic applications, speed of measurement is as important as repeatability. The 3051 responds up to eight times faster than the typical pressure transmitter to detect and control variations quickly and efficiently. Superior dynamic response yields more accurate measurements to reduce variability and increase profitability. Coplanar platform enables complete point solutions. The versatile Coplanar platform design enables 3051C series of Pressure Transmitter could support various industrial purposes with combination of manifold (305RC series, requires ordering code S5) and single / dual remote seal(s) diaphragm (1199 series, requires ordering code S1 or S2). Please feel free to reach us for request of formal quote.
It has the whole temperature range of compensation and linear compensation, wide voltage design, impact jamming lightning design, high accuracy, high stability, wiring reverse and overvoltage protection, current limiting protection.
Type: Differential Pressure
Specification:
| output: | 4-20 mA with digital signal based on HART Protocol; Low Power, 1-5 V dc with digital signal based on HART Protocol; Low power, 0.8-3.2 V dc with digital signal based on HART Protocol, optional |
| range: | 0-0.01 in H2O to 0-2000 psid |
| accuracy: | 0-1: +/-0.1% of span |
| power: | 4-20 mA: 10.5-55 V dc with no load Low Power: 6-12 V dc with no load |
| materials: | Sensor Wetted Parts: SST, Hastelloy, Monel, Tantalum |
| fluid: | Sensor fill fluid: Silicone, Inert (Halocarbon) |
| mounting: | Coplanar and Traditional flanges and Adapters: Cadmium and Nickel-plated CS, 316 SST |
Type: Gauge Pressure
Specifications:
| output: | 4-20 mA with digital signal based on HART Protocol; Low Power, 1-5 V dc with digital signal based on HART Protocol; Low power, 0.8-3.2 V dc with digital signal based on HART Protocol, optional |
| range: | 0-8.3 in H2O to 2000 psig |
| accuracy: | 2-5: +/-0.075% of span |
| power: | 4-20 mA: 10.5-55 V dc with no load Low Power: 6-12 V dc with no load |
| materials: | Sensor Wetted Parts: SST, Hastelloy, Monel, Tantalum |
| fluid: | Sensor fill fluid: Silicone, Inert (Halocarbon) |
| mounting: | Coplanar and Traditional flanges and Adapters: Cadmium and Nickel-plated CS, 316 SST |
The 3051C smart pressure transmitter combines advanced technology with the versatile Coplanar ™ process connection to create a new standard in pressure measurement technology.
The 3051C smart pressure transmitter is capable of differential, gage, or absolute pressure measurement.
Applications:
- For application in the process engineering
- Suit for liquid, steam and gases medium
- Apply in industrial process control systems
- Applyin the field of level measurement
- Apply in the oil and gas industrials
- Apply in relative pressure measuring of liquid.
Specifications:
| Rated range | |
| measurement range | ±0.1MPa…0…41MPa |
| max static pressure | 13MPa…25MPa |
| measurement mode | differential pressure,gauge pressure,absolute pressure |
| Output signal/power supply | |
| standard | 2-wire: 4-20mA+Hart / VS=10…36VDC |
| Type of sensors | metal capacitor |
| Performance | |
| comprehensive accuracy | ±0.075% ±0.1% ±0.2% ±0.5% |
| range of medium temperature | -40…150°C |
| stability | 0.1%FS |
| zero point range | adjustable |
| protection degree | IP65 |
| Specification | |
| process connection | M20x1.5 as customer’s required |
| display | LCD |
| Order information | order No. |
| ES 3051C - * * - **** - * * | |
| gauge pressure | G |
| absolute pressure | A |
| differential pressure | D |
| liquid level | L |
| range code(0001 for 1 psi) | |
| displayed variable: bar | 0 0 |
| displayed variable: psi | 0 1 |
| displayed variable: % | 0 3 |
| displayed variable: mA | 0 4 |
|
Example: differential pressure transmitter |
ES 3051CD-0005-00 |
Competitive Advantage:
Our products have competitive price advantage . Ensure high precision, low temperature, long-term stability, resistance to adverse environmental impacts, and suitable for general-gas, liquid pressure measurement and control.
