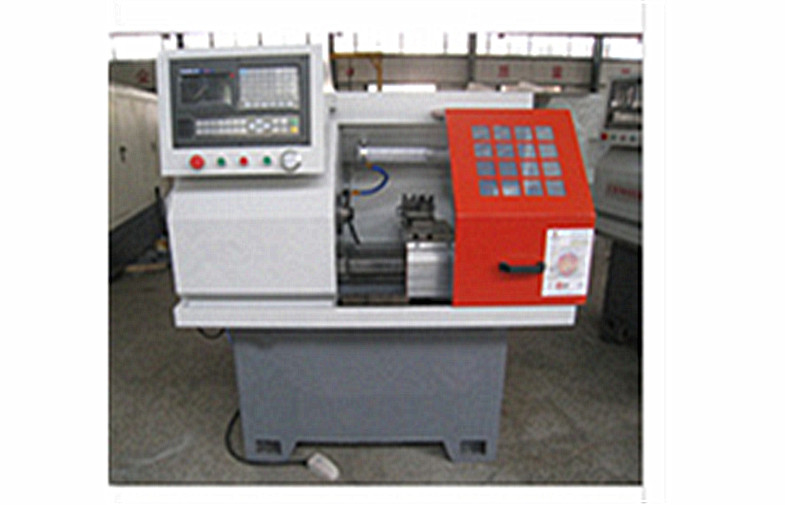

Automatic Economy CNC Precision Lathe Machine , small metal CNC lathe
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Automatic Grade: | Automatic | Max. Swing Diameter: | 160 Mm |
|---|---|---|---|
| Voltage: | 380v Or 220v | Dimension(L*W*H): | 1480*980*1510mm |
| Power(W): | 2.2 Kw | Weight: | 900kg |
| After-sales Service Provided: | Overseas Third-party Support Available | ||
| High Light: | computerised Lathe Machine,precision Lathe Machine |
||
Automatic Economy CNC Precision Lathe Machine , small metal CNC lathe
Quik Detail:
work light, gang type tool post, pneumatic chuck, foot padel, full set of lubrication system, full set of
coolant system, tools spare parts etc
Description:
a. The reasonable design and thermal type structure effectively improve the stability .
b.the good stability and high load bearing.
c. The wear-resisting cast iron casting, guide rail and the super audio quenching and fine grinding, to
ensure the long-term stability of machining precision and service life.
d. X axis and Z axis screw work more smoothly, more convenient to maintain .
e. Z guide with double swallow tail can protect guide rail better.
f. Spindle with pneumatic chuck
Specifications:
|
Specification |
economy lathe, small metal CNC lathe
|
|
Max.swing over bed |
Φ160 |
|
Max.swing over carriage |
Φ60 |
|
max length of work piece |
150 |
|
Maximum diameter of the bar |
Φ25 |
|
X / Z axis repeat positioning accuracy |
0.012/0.013 |
|
X-axis max motion traveling schedule |
280 |
|
Z- axis max motion traveling schedule |
160 |
|
X-axis fast moving speed |
5 |
|
Z- axis fast moving speed |
8 |
|
Range of spindle speed |
150-3000 |
|
Turret form |
row turret |
|
Power of the main drive motor |
2.2 |
|
Overall dimensions(L×W×H) |
1480×930×1510 |
|
Net weight |
900 |
Warranty for this PIPE THREADING MACHINE
1. engineers are available to do oversea machinery service. In some countries, we have oversea agent doing after-sale service in time and professionally.
2.24 hours heart to heart service on-line or mobile.
3. training in our factory and on-line are free of cost.
4. warranty is 12 months, small broken parts are free of cost to replace, spare parts are delivered with machine for customer convenience.
5.We offer best agent price and distributer price.
Customer and delivery
accept ODM, OEM,
accept FOB, CFR, CIF, EXW price,
T/T 30% as deposit and the balance before machine tools leave our factory.
normal products with standard configuration manufacturing time is 7-15 working days.
