Turning CNC Facing Lathe / automatic lathe machines Horizontal
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Type: | Horizontal | Automatic Grade: | Manual |
|---|---|---|---|
| CNC Or Not: | Normal | Max. Swing Diameter: | 180 MM |
| Voltage: | 380V | Power(W): | 400w |
| Dimension(L*W*H): | 3500×2600×2100mm (138''×102''×83'') | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| High Light: | computerised Lathe Machine,precision Lathe Machine |
||
Turning CNC Facing Lathe / automatic lathe machines Horizontal
Quick Detail:

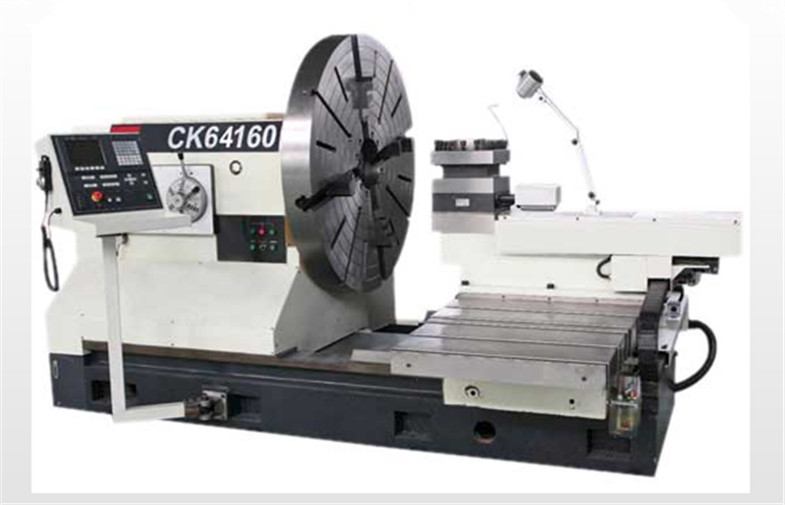

Turning CNC Facing Lathe CK64160 CNC Lathe
1100mm wide base with double convex guide ways supersonically hardened distance between cross bed and chuck can be manually adjusted.
Square type for cross guide way and dovetail type for longitudinal guide way.
Longitudinal and cross feeds are effected by servo motor drive through ball screws.
Geared headstock to ensure food rigidity for turning.
Description:
Sell various high quality lathes , like Horizontal Lathe,Machine Tools,Machine Tool,Lathe,CNC Lathe,Floor Lathe,Big Lathe,large lathe,face lathe,floor lathe,processing flange lathe,vertical lathe, Lathe machine,Heavy duty
horizontal lathe,chunk lathe.We are able to manufacture various sizes Lathe,also can make customized lathe.
Applications:
Suitable for turning of large flat parts of plate and ring type.
Specifications:
|
ITEMS |
CK64160 |
|
Max. swing over bed |
Ф1600mm (63'') |
|
Max. Swing over carriage |
Ф1000mm (40'') |
|
Width of bed |
1100mm (44'') |
|
Spindle bore |
Ф130mm (5'') |
|
Spindle nose |
A2-15 |
|
Cone hole diameter and taper of spindle hole |
MetricФ140 1:20 |
|
Steps of spindle speed (Manual) |
24(Manual) |
|
Range of spindle speed. |
2.5-250r/min |
|
Rapid feed for Axis Z |
6m/min |
|
Rapid feed for Axis X |
12m/min |
|
Max.travel for Axis Z |
500mm (20'') |
|
Max.travel for Axis X |
900mm (35.4'') |
|
Max.Longitudinal travel(Manual) |
500mm (20'') |
|
Min.input |
0.001mm (0.00004'') |
|
Tool post stations |
4 station |
|
Distance between Center & Tool |
50mm |
|
X/Z motor torque |
33/21Nm |
|
Power of main motor |
22kw |
|
Power of cooling pump |
250w |
|
Overall dimensions (L ×W × H) |
3500×2600×2100mm (138''×102''×83'') |
|
Net weight |
11000kg |
