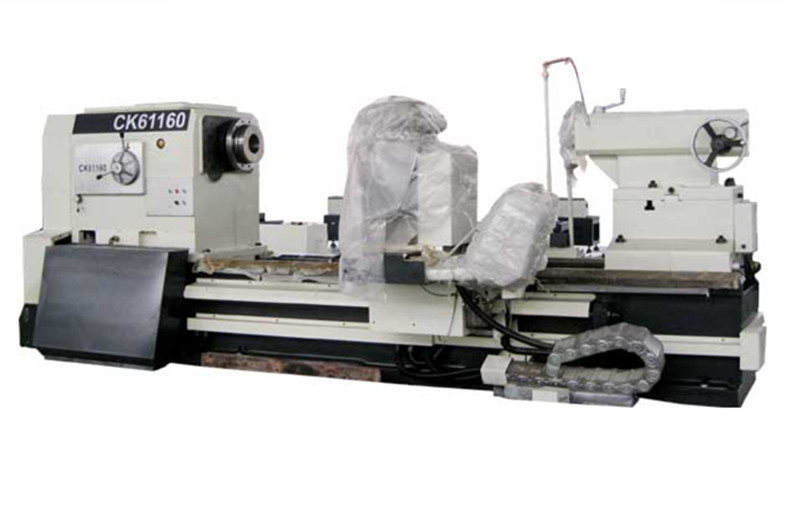

Flat Bed CNC Auto Lathe Machine heavy duty with pneumatic chuck
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Automatic Grade: | Automatic | Max. Swing Over Bed: | Ф1400mm (55'') |
|---|---|---|---|
| Max. Swing Over Carriage: | Ф990mm (40'') | Width Of Bed: | 970mm (38'') |
| Maximum Length Of Workpiece: | 1500/2000/3000/4000mm (59''/78.7''/118''/157'') | Max. Turning Length: | 1300/1800/2800/3800mm (51''/70.8''/110.2''/149.6'') |
| Max. Weight Between Center: | 6000kg | * Swing Over Gap: | Ф1930mm(76'') |
| High Light: | computerised Lathe Machine,precision Lathe Machine |
||
Flat Bed CNC Auto Lathe Machine heavy duty with pneumatic chuck
Quick Detail:
Flat Bed CNC Lathe CK61140 CK61160 CK62140 CK62160 Introduct
The Larger Flat Bed Turning CNC Lathe machine is a CNC controlled lathe machine tool, driven by step motors or servo motors.
CNC lathe is suitable for turning cylindrical and taper faces, boring, grooving and cutting threads
Description:
Features & equipments of Flat Bed Turning CNC Lathe:
1. The CNC Turning Lathe adopts ISO International Code, Keyboard Manual Date Input
2. Provided with program of power cut-off protection and the functions of automatic diagnosis.
3. Longitudinal and cross feeds are effected by servo motor drive through ball screws.
4. Centralized lubrication system in headstock for less heating and heat distortion.
5. The surface of the bedways is supersonic frequency hardened and precision ground with a long service life
6. Steps of spindle speed (Manual) : 24 step (Manual)
Applications:
Suitable for turning of large flat parts of plate and ring type.
Specifications:
|
Items |
CK61140/CK62140 |
CK61160/CK62160 |
||
|---|---|---|---|---|
|
Max. swing over bed |
Ф1400mm (55'') |
Ф1600mm (63'') |
||
|
Max. Swing over carriage |
Ф990mm (40'') |
Ф1190mm (47'') |
||
|
Width of bed |
970mm (38'') |
|||
|
Maximum length of workpiece |
1500/2000/3000/4000mm (59''/78.7''/118''/157'') |
|||
|
Max. Turning length |
1300/1800/2800/3800mm (51''/70.8''/110.2''/149.6'') |
|||
|
Max. Weight between center |
6000kg |
|||
|
* Swing over gap |
Ф1930mm(76'') |
Ф2110mm(83'') |
||
|
* Effective length of gap |
590mm(23'') |
|||
|
Spindle bore |
Ф130mm (5.1'') |
|||
|
Spindle nose |
A2-15 |
|||
|
Cone hole diameter and taper of spindle hole |
MetricФ140 1:20 |
|||
|
Steps of spindle speed (Manual) |
24 step (Manual) |
|||
|
Range of spindle speed. |
2.5-250r/min |
|||
|
Rapid feed for Axis Z |
8m/min |
|||
|
Rapid feed for Axis X |
5m/min |
|||
|
Max.travel of Axis X |
820mm (32-1/3'') |
900mm(35.4'') |
||
|
Min.input |
0.001mm |
|||
|
Tool post stations |
4 station |
|||
|
Tool cross section |
50× 50mm (1.9''×1.9'') |
|||
|
External diameter of tailstock sleeve |
Ф160mm (6.3'') |
|||
|
Taper of bore of tailstock sleeve |
Metric 80 |
|||
|
Max. Traverse of tailstock sleeve |
300mm (11.8'') |
|||
|
X/Z motor torque |
37/42Nm |
|||
|
Power of main motor |
22KW |
|||
|
Power of cooling pump |
250w |
|||
|
3m Overall dimensions (L ×W × H) |
6200×2280×2130mm (244''×89.7''×83.9'') |
6200×2280×2300mm (244''×89.7''×90.5'') |
||
|
New weight (3m) |
12700kg |
13500kg |
||
|
NOTE:The items with''*''are only for 62 series. |
||||
