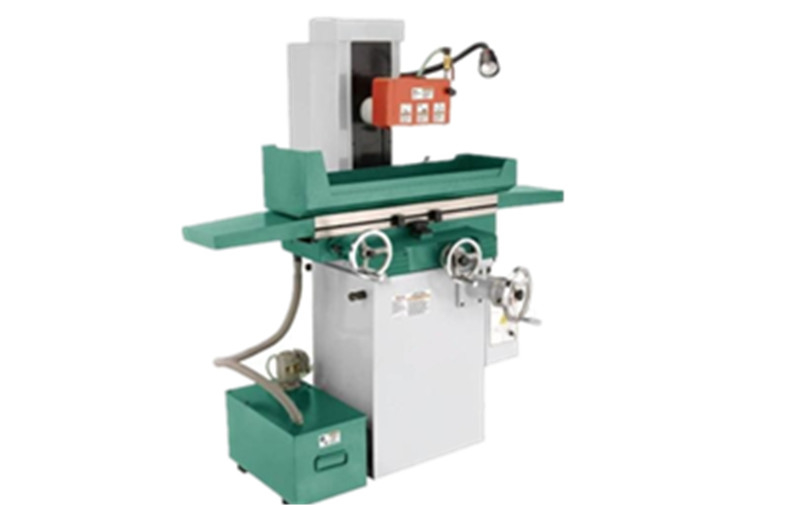

Surface Grinding Machine With Model Of M618 / M1022 For Various Complex Plane
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | CNC Lathe Machinery,precision Lathe Machine |
||
|---|---|---|---|
Surface Grinding machine with model of M618 / M1022 for various complex plane
Quick Detail:
1.With compact structure, easy operation features.
2.Table longitudinal guide rail uses the rolling guide, rope wheel structure traction , lightweight and flexible
Description:
This machine can grind various complex plane and formed surfaces,do not need to apply to
motor feed grinding,precision class P4 spindle bearings,labyrinth seal,waterproof and dustproof
performance,smooth motion,high accuracy.Longitudinal using steel ball rail,light and flexible,
column-shaped rail with large span,steel,and high stability.Centralized lubrication machine with
manual pumps.
Customers could choose any type of them .
Specifications:
M618 grinding machine
|
Technical Specifications |
Unit |
M618 |
||
|
Max.workpiece to be Ground ( L×W×H) |
mm |
500×190×335 |
||
|
Working table movement |
Crosswise |
mm |
500 |
|
|
Lengthways |
mm |
190 |
||
|
Max distance from working table to spindle center |
mm |
335 |
||
|
Working table slide way |
|
Steel ball V plate rail |
||
|
Max burden weight of working table |
Kg |
200 |
||
|
Table Size (L×W) |
mm |
460×180 |
||
|
Number of T -Slot |
mm×n |
12×1 |
||
|
speed of working table |
m/min |
3-23 |
||
|
Cross Feed On Handwheel |
mm |
0.02/Graduation 2.5/revolution |
||
|
Vertical Feed On Handwheel |
mm |
0.01/Graduation 1.25/revolution |
||
|
Wheel Size (dia.×width×bore ) |
mm |
200×16×31.75 |
||
|
Spindle speed |
50Hz |
rpm |
2850 |
|
|
Frequency modulation motor |
0-6000 |
|||
|
Spindle motor |
Kw |
1.1 |
||
|
Coolant Pump |
Kw |
0.4 |
||
|
Minimum of Numerical Display |
mm |
|
||
|
Machine Size (L×W×H) |
mm |
1550×1060×1590 |
||
|
Packing Size (L×W×H)) |
mm |
1560×1170×1870 |
||
|
Gross,Net |
T |
O.75, 0.65 |
||
M1022 Manual surface grinding machine
|
Technical Specifications |
Unit |
M1022 |
||
|
Max.workpiece to be Ground ( L×W×H) |
mm |
560×250×490 |
||
|
Working table movement |
Crosswise |
mm |
560 |
|
|
Lengthways |
mm |
250 |
||
|
Max distance from working table to spindle center |
mm |
490 |
||
|
Working table slide way |
|
Steel ball V plate rail |
||
|
Max burden weight of working table |
Kg |
250 |
||
|
Table Size (L×W) |
mm |
500×250 |
||
|
Number of T -Slot |
mm×n |
14×1 |
||
|
speed of working table |
m/min |
3-23 |
||
|
Cross Feed On Handwheel |
mm |
0.02/metre 4/round |
||
|
Vertical Feed On Handwheel |
mm |
0.01/metre 2/round |
||
|
Wheel Size (dia.×width×bore ) |
mm |
200×20×31.75 |
||
|
Spindle speed |
50Hz |
rpm |
2850 |
|
|
Frequency modulation motor |
0-6000 |
|||
|
Spindle motor |
Kw |
1.5 |
||
|
Coolant Pump |
Kw |
0.4 |
||
|
Minimum of Numerical Display |
mm |
|
||
|
Packing Size (L×W×H)) |
mm |
1280×1250×1880 |
||
|
G.W,N.W |
T |
1.1, 1.0 |
||
Applications:
The machine is suitable to a type of flat or shaped Grinding workpiece surface.
Competitive Advantage:
1.Good quality
2. CE ISO certifications
Our serives
1. engineers are available to do oversea machinery service. In some countries, we have oversea agent
doing after-sale service in time and professionally.
2. 24 hours heart to heart service on-line or mobile.
3. training in our factory and on-line are free of cost.
4. warranty is 12 months, small broken parts are free of cost to replace, spare parts are delivered with
machine for customer convenience.
5. We offer best agent price and distributer price.
