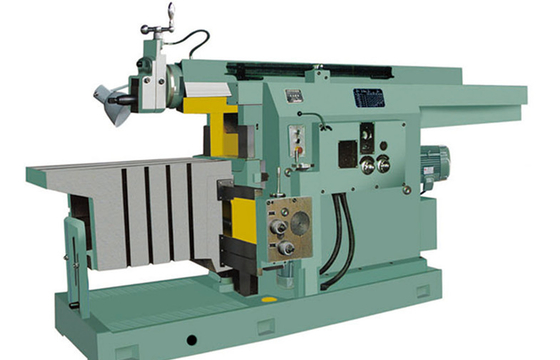

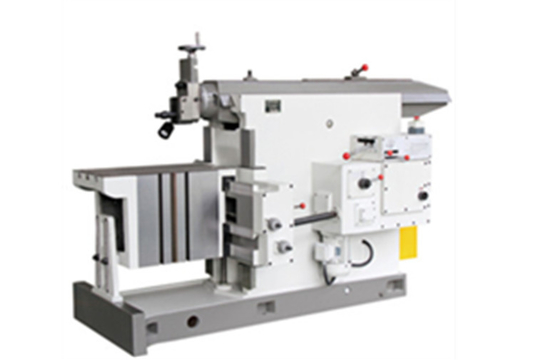

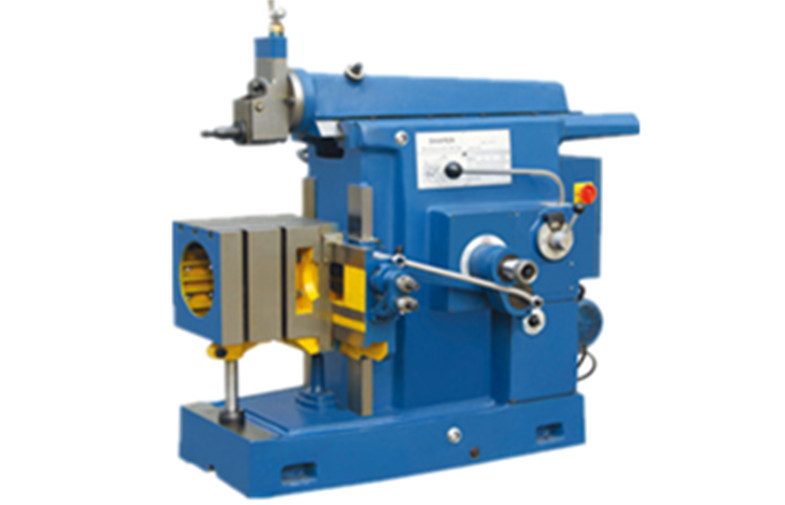

Shaper machine model BC60100 metal cutting equipment / cutting flat
Quick Detail:
- Max.cutting length 1000(mm)
- Overall Dimensions(L*W*H)(mm) 3640×1575×1780
- The weight of the machine(kg) 4870
Description:
This machine is designed for cutting flat and formed surfaces on various kinds of small or medium sized workpiece. It can also be used to cut surfaces in special shape if equipped with a special vice or a dividing head and it is suitable for single piece and small batch production as well.
The main cutting motion of the machine is linear motion being convertd from circular motion of gears by linkblock mechanism. With smooth transmission, short overange and less consume of power. The machine is easy to start and stop.
With tool lifter, and rapid motion for vertical and horizontal direction.
Customers could choose any type of them .
Specifications:
BC60100 specification
|
Specifications |
BC60100 |
|
Max.cutting length(mm) |
1000 |
|
Maximum range of the horizontal movement of the table(mm) |
800 |
|
Max.distance from the undersurface of ram to the worktable(mm) |
400 |
|
Maximum length of the vertical movement of table(mm) |
380 |
|
Dimensions of table top (LxW)(mm) |
1000×500 |
|
Max.working distance of knife rest(mm) |
160 |
|
Max.swivel of knife rest(°) |
±60° |
|
The maximum size of the plane shank(W×H)(mm) |
30×45 |
|
Ram stroke reciprocating table for each level times per minute |
15,20,29,42,58,83 |
|
Range of the worktable of the scope of the direction of level feed (mm) |
0.3~3 (10 class) |
|
Range of the worktable of the scope of the direction of vertical feed (mm) |
0.15~0.5 (8 class) |
|
Transverse rapid travelling speed of the workticall worktable(mm) |
3 |
|
Vertical movement of the worktable(mm/min) |
0.5 |
|
T he width of The T—solt in the center of the worktable (mm) |
22 |
|
Main motor power(kw) |
7.50 |
|
Overall Dimensions(L*W*H)(mm) |
3640×1575×1780 |
|
The weight of the machine(kg) |
4870 |
BY60100C specification
|
Specifications |
BY60100C |
|
Max.cutting length |
1000mm |
|
Min.cutting length |
1500mm |
|
Working speed of the ram |
3—44m/min |
|
Max.distance from the undersurface of ram to the worktable |
400mm |
|
Max.cutting force |
1500mm |
|
Max.working distance of knife rest |
160mm |
|
Max.swivel of knife rest |
60° |
|
Max.size of tool bar(width*height) |
30*45mm |
|
Ram stroke reciprocating table for each level of the scope of the direction of feed |
0.25-5mm (reciprocating travel per time) |
|
Ram stroke each table vertically reciprocating feed range |
0.05-0.25 (reciprocating travel per time) |
|
Transverse rapid travelling speed of the level worktable |
3m/min |
|
Transverse rapid travelling speed of the vertical worktable |
0.15m/min |
|
Size of the worktable(length*width) |
1000*500mm |
|
The width of the T—solt in the center of the worktable |
22mm |
|
Max.deadweight of the worktable |
20kg |
|
Max.lateral process of the worktable |
800mm |
|
Max.cutting length when knife rest turn around |
800mm |
|
Main motor power |
7.5kw |
|
The ram of the main motor power |
970r/min |
|
The motor power When the worktable quickly moved |
1.1kw |
|
The ram when the worktable quickly moved |
1400r/min |
|
Flow of duplex vane pumpCSYB-63/63 |
63*63(L*M) |
|
Overall Dimensions(L*W*H) |
3610*1545*1827mm |
|
The weight of the machine |
4600kg |
Applications:
The machine is suitable to process all kinds of small and middle-sized shaft and plate work piece, and could also turn various threads, circle arc, circular cone, inside and outside surface of revolved body
This machine is widely used in sanitary, valve, electrical appliance, instrument, automobile, motorcycle, bearings and more
Competitive Advantage:
1.Good quality
2. CE ISO certifications
Our serives
1. engineers are available to do oversea machinery service. In some countries, we have oversea agent
doing after-sale service in time and professionally.
2. 24 hours heart to heart service on-line or mobile.
3. training in our factory and on-line are free of cost.
4. warranty is 12 months, small broken parts are free of cost to replace, spare parts are delivered with
machine for customer convenience.
5. We offer best agent price and distributer price.
