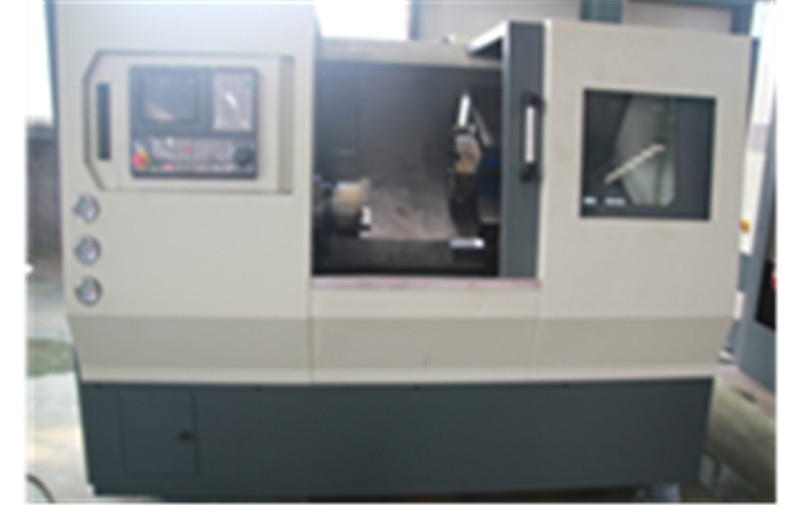

High reliability computerised CNC lathe machine of tailstock slant bed

Quick Detail:

• The machine are the slant bed CNC machine tools of higher speed, higher precision and higher reliability
• The spindle is in unit structure, the motion given by the frequency motor will be transferred to the spindle through synchronous belt, thus we can get the highest speed
• The hydraulic chuck is employed for clamping the workpiece, which makes the clamping more convenient, accuracy highly improved and the operating strength saved
• Spindle bearing is contacted by 5 angular, 3 of which are placed in the front and 2 in the back
• It makes the higher speed and higher rigidity
• Machine adopts 30 degrees oblique slide saddle and linear guide rail, stronger in rigidity, faster in feeding speed and easier in chip removal
• The X and Z axis screws are in the middle of the carriage, well-distributed in force, smooth in movement, higher in speed
• The 8-tool hydraulic turret changes tools quickly, stably, precisely and chooses tool from the nearest
• It is easy to operate hydraulic tailstock
• Fully shield machine house does not leak oil and water, green and beautiful
• Taiwan higher accuracy linear guideways
• Taiwan ball screw
• Hydraulic magazine
• Taiwan hydraulic chuck
• Hydraulic tailstock
• Taiwan hollowed rotary cylinder



Description:

 a. Machine bed adopts 45 degrees slant, one piece excellent resin sand cast  integral bed, torsional strength and flexural rigidity is obviously increased, meantime easy and fast for chip conveying.
  b. Adopt high rigid and high precision independent spindle unit, transmission is by  V belt, can start stably and smoothly.lubrication lipid, obviously reduce spindle's thermal deformation,increase thermal stability and precision.

  c. Feeding system adopt TAIWAN famous brand Hiwin linear guide way and Hiwin ball screw hardness over 58 degrees as standard configuration, ensure highest speed, highest machining precision and excellant dynamic performance.
  d. Equip Taiwan brand hollowed  chuck and hollowed oil cylinder, servo hydraulic  tool turret and hydraulic tailstock, Japan YASKAWA servo motor  as standard configuration.
  e. Taiwan LNC controller as standard configuration, GSK, KND,FANUC, MITSUBISHI,SIEMENS etc at optional.
  f. Particularly designed heavier loading bottom base,  widened machine bed, strengthened plate ensure to meet high stength machining strict requirements.


Applications:

The machine is applicable to automobile, motorcycle, electronics, aerospace, military industry, oil and other industries, could turn the conical surface, circular arc surface, end face of the rotary parts and could turn the various metric and inch threads and more with higher efficiency in bulk and high precision automatic processing
This machine adopts 45  highest rigid integrated bed, large torque spindle, Taiwan linear guide way, this ensures the machine higher rigidity, higher precision and higher speed
Spindle center close to the operator makes loading and unloading workpieces more convenient


Specifications:

TCK420


TCK520



Competitive Advantage:

1. TCK 420 slant bed CNC lathe
2. CE, ISO9001, ISO14001 certificates
3. factory price
