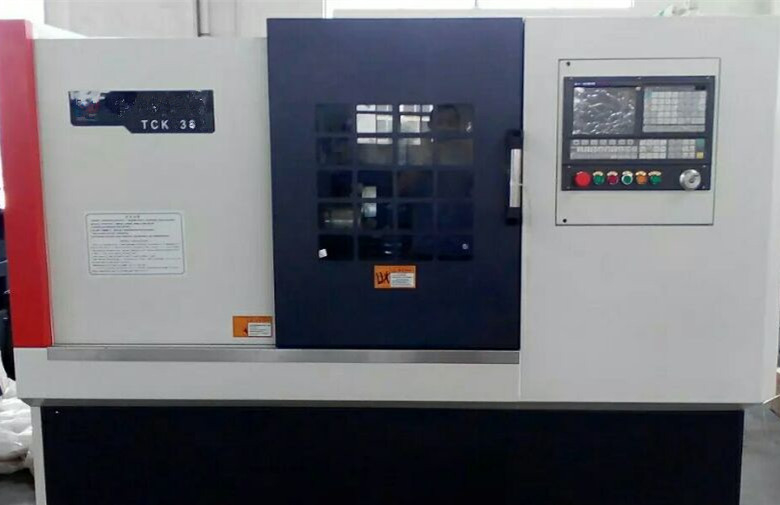

TCK36 CNC lathe machine Taiwan linear guideways / automatic lubrication

Quick Detail:

• High rigidity cast iron
• High accuracy Taiwan linear guideways
• Integrated automatic lubrication
• 45 degrees slant bed

Description:

a. Particularly designed heavier loading bottom base,  widened machine bed, strengthened plate ensure to meet high stength machining strict requirements.
b. Adopt high rigid and high precision independent spindle unit, transmission is by  V belt, can start stably and smoothly.lubrication lipid, obviously reduce spindle's thermal deformation,increase thermal stability and precision.
c. Feeding system adopt TAIWAN famous brand Hiwin linear guide way and Hiwin ball screw hardness over 58 degrees as standard configuration, ensure highest speed, highest machining precision and excellant dynamic performance.
d. Equip Taiwan brand hollowed  chuck and hollowed oil cylinder, servo hydraulic  tool turret and hydraulic tailstock, Japan YASKAWA servo motor  as standard configuration.
e. Taiwan LNC controller as standard configuration, GSK, KND,FANUC, MITSUBISHI,SIEMENS etc at optional.
f. Machine bed adopts 45 degrees slant, one piece excellent resin sand cast  integral bed, torsional strength and flexural rigidity is obviously increased, meantime easy and fast for chip conveying.

Applications:

The machine is applicable to automobile, motorcycle, electronics, aerospace, military industry, oil and other industries, could turn the conical surface, circular arc surface, end face of the rotary parts and could turn the various metric and inch threads and more with higher efficiency in bulk and high precision automatic processing
This machine adopts 45  highest rigid integrated bed, large torque spindle, Taiwan linear guide way, this ensures the machine higher rigidity, higher precision and higher speed Spindle center close to the operator makes loading and unloading workpieces more convenient

Specifications:

                                                                                                           TCK36                    TCK46

Main Configuration

Competitive Advantage:

1) All of our products have passed the CE ISO approval

2) Factory covers 120,000 square meters including casting,machinning,assemble workshops, above 70 intermediate and senior technical personel.

3) Our casting workshop adopts lost foam to guarantee the size and precision of casting parts.

4) All the parts are performed heat treatment, natural failure, vibrating stress relief(VSR) to relieve internal stresses.

5)  All the guide surface are performed quenching.

6) we implement assembly line,and the assemble workshop includes feed box team,gear box team,worktable team,hydraulic unit team,scrabbing team,drilling hole team,power distrubition team,daubing and painting team, test team and after-sale service team.

7)ERP infomation management makes our production and management more and more standardization, networked and refinement.
