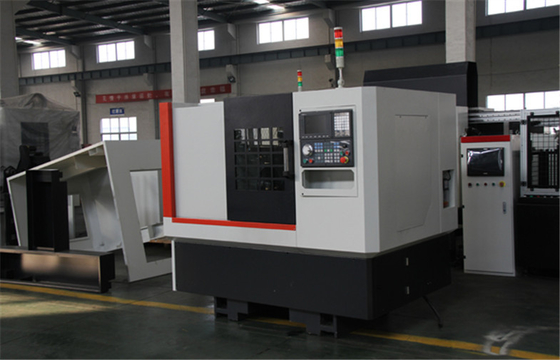

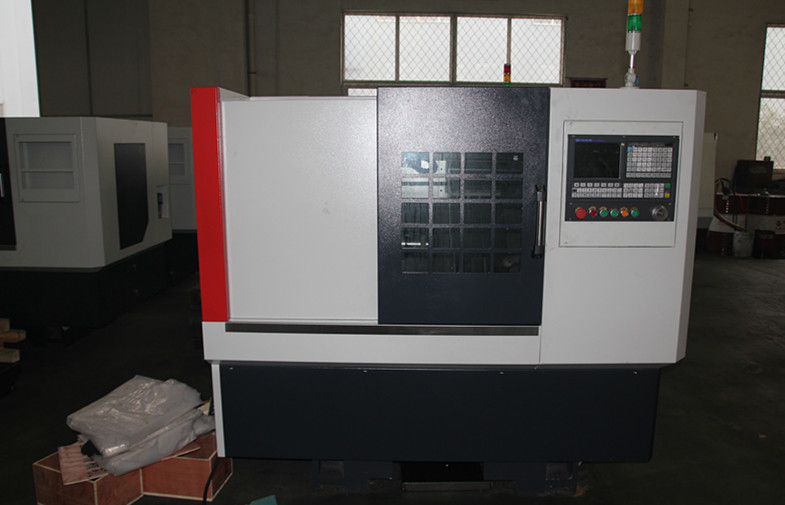

CK6136 CNC lathe machine automatic feeding device with hydraulic chuck
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Automatic Grade: | Automatic | Max. Swing Diameter: | 380mm |
|---|---|---|---|
| Voltage: | 380v | Power(W): | 5.5kw |
| Dimension(L*W*H): | 1860*1060*1600mm | Weight: | 1560kg |
| Processing Length: | 850/1500mm | Controller: | GSK.KND,LNC, Siemens, Fanuc, Mistubishi Etc |
| High Light: | CNC Lathe Machinery,computerised Lathe Machine |
||
CK6136 CNC lathe machine automatic feeding device with hydraulic chuck
Quick Detail:
- 8" hollowed(higher price) or solide (lower price) hydraulic chuck, hydraulic station, hydraulic rotary oil cylinder,
- 4 tool gany type post.
- Automatic feeding device.
- chip conveyor
Description:
1) ERP infomation management makes our production and management more and more standardization, networked and refinement.
2) Factory covers 120,000 square meters including casting,machinning,assemble workshops, above 70 intermediate and senior technical personel.
3) Our casting workshop adopts lost foam to guarantee the size and precision of casting parts.
4) All the parts are performed heat treatment, natural failure, vibrating stress relief(VSR) to relieve internal stresses.
5) All the guide surface are performed quenching.
6) we implement assembly line,and the assemble workshop includes feed box team,gear box team,worktable team,hydraulic unit team,scrabbing team,drilling hole team,power distrubition team,daubing and painting team, test team and after-sale service team.
7) All of our products have passed the CE ISO approval
Applications:
Automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also can process the single and multiple threads in metric, inch and other standards
Specifications:
| chinese lathe specification | CK6136 | CK6140 | |
| Capability | Max. swing dia. over bed | 360mm | 400mm |
| Max. swing dia. over cross slide | 190mm | 250mm | |
| Max. cutting dia. | 360mm | 400mm | |
| Max. processing length | chuck280/collet550mm | 700mm | |
| Spindle | Go-ball dia. od spindle | 48mm | 83mm |
| Spindle taper | 40 degrees | 1:20 | |
| Spindle speed | 150-2200 rpm | 150-2000 rpm | |
| Spindle nose | A2-6 | ||
| Main motor power(Variable frequency) | 5.5Kw | 7.5Kw | |
| Transducer | 7.5Kw | 11Kw | |
| X/Z axis | X/Z travel | 280/580mm | 280/750mm |
| X/Z mini setting unite | 0.001mm | 0.001mm | |
| X/Z motor torque | 4/6N.m | 6/6N.m | |
| X/Z rapid feeding speed | 5/10 m/min | 5/8 m/min | |
| Tailstock | Tailstock sleeve dia. | 60 | |
| Tailstock sleeve strock | 100 | ||
| Tailstock taper | MT4# | ||
| Tool holder | Type | 4-position electric type | |
| Tool bar size | 20*20mm | ||
| Tool holder repeatability | 0.004 | ||
| Dimension | 1860*1060*1600mm | 2230*1280*1640mm | |
| Net weight | 1560kg | 1650kg | |
| Power | 10Kw/20A | ||
|
Optional Accessories |
||||
|
1. Hydraulic clamping hollowed unite |
6” hollowed powerful chuck,hollowed rotary oil cylinder,1.5kw hydraulic station |
|||
|
8” hollowed powerful chuck,hollowed rotary oil cylinder,1.5kw hydraulic station |
||||
|
2. Hydraulic clamping solid unite |
6” solid powerful chuck, solid rotary oil cylinder,1.5kw hydraulic station |
|||
|
8” hollowed powerful chuck, solid rotary oil cylinder,1.5kw hydraulic station |
||||
|
3. Rotary air cylinder |
Hollowed rotary air cylinder |
|||
|
Solid rotary air cylinder |
||||
|
4. Row tool carrier |
Latest dovetail row tool carrier |
|||
|
5. Manual three-jaw chuck |
||||
|
6. Spindle unite |
||||
|
7. Motor |
Universal spindle motor changed into variable frequency motor |
|||
|
Universal spindle motor changed into servo spindle motor |
||||
|
8. Automatic chip conveyor |
||||
|
9. Optional controller |
GSK |
|||
|
LNC |
||||
|
FANUC |
||||
|
KND |
||||
|
MISTUBISHI |
||||
Advantage
● Four position electric turret
● Frequency conversion stepless speed regulation
● Standard confiuration: manual chuck
● Optional confiuration: spring collet, hydraulic chuck, automatic
feeding device, gang type tools
