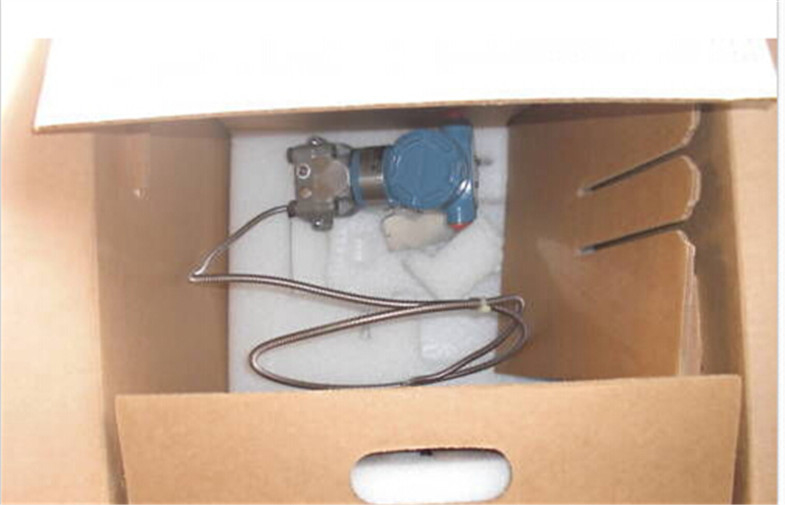

Industry Rosemount 3051CA absolute pressure measurement Transmitter

Industry standard Rosemount 3051CA Absolute Pressure Transmitter for absolute pressure measurement

Quick Detail:

Measurement instrumentation with poor performance increases your maintenance costs and can cause product quality issues and reduced throughput. With 0.14% total probable error and five-year installed stability, the Rosemount 3051 delivers accurate and reliable measurements.

Reference accuracy: 0.04% of Span
Stability: 0.125% of URL for 5 years
Rangedown: 150:1
Installed Total Performance: 0.14% of span

Description:

With the Rosemount 3051 Pressure Transmitter, you’ll gain more control over your plant. You’ll be able to
reduce product variation and complexity as well as your total cost of ownership by leveraging one device
across a number of pressure, level and flow applications. You’ll have access to information you can use to
diagnose, correct and even prevent issues. And with unparalleled reliability and experience, the Rosemount
3051 is the industry standard that will help you perform at higher levels of efficiency and safety so you can
remain globally competitive.

Rosemount 3051C Coplanar Pressure Transmitters are the industry standard for Differential,
Gage, and Absolute pressure measurement. The Coplanar Platform enables seamless
integration with manifolds, flow and level solutions. Capabilities include:
n Power Advisory can proactively detect degraded electrical loop integrity issues (Option Code
DA0)
n Local Operator Interface with straightforward menus and built-in configuration buttons
(Option Code M4)
n Scaled variable, process alerts and selectable HART® (Option Code HR5 or HR7)
n Safety Certification (Option Code QT)

Applications:

Rosemount 3051CA Coplanar Pressure Transmitters are the industry standard for Absolute pressure measurement.

Specifications:

Competitive Advantage:

· Safety Certified to IEC 61508

· Static pressure option up to 6,092 psi (420 bar)

· Process Pressure and Sensor Temperature Alerts

· User configurable alarm and saturation values

· Adjustable low flow cut-off
