3051TA Absolute Pressure Transmitter with a single isolator design , 0.3 to 10000 psi

3051TA Absolute Pressure Transmitter with a single isolator design for pressure measurements from 0.3 to 10000 psi

Quick Detail:

• Best-in-Class performance with 0.04%
reference accuracy
• Coplanar™ platform enables integrated
pressure, flow and level solutions
• Power Advisory Diagnostics provide
predictive visibility to the health of your entire
electrical loop
• Local Operator Interface (LOI) offers easy to
use configuration capabilities at the
transmitter
• Selectable HART™ Revision prepares your
plant for the latest HART capabilities while
ensuring seamless integration with today's
systems
• SIL2 safety certification to IEC 61508 is
available with the full HART offering to
simplify compliance
• Over 20 years of backwards compatibility
allows you to invest in the latest features
without adding complexity to your plant

Description:

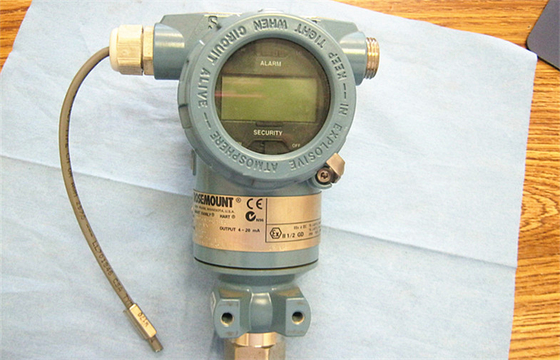

The Rosemount 3051T pressure transmitter combines proven sensor and electronics technologies with a single isolator design for absolute and gauge pressure measurements from 0.3 to 10,000 psi. The Rosemount 3051T pressure transmitter provides a superior alternative for measuring absolute or gauge pressure with the rugged, reliable performance that is characteristic of Rosemount pressure transmitters.

The Rosemount 3051T pressure transmitter utilizes advanced sensor technology to maintain a reference accuracy of 0.065% of span (up to ±0.04% with high accuracy option) resulting in total operating performance, the true measure of "real-world" transmitter performance, of ±0.15%. Additionally, the Rosemount 3051T pressure transmitter has an installed five-year stability of ±0.125% demonstrating the ability to maintain performance over a five year period under the most demanding process conditions. The high accuracy and stability of the Rosemount 3051T pressure transmitter equates to reduced variability, lower operating and maintenance costs, and improved plant safety.

Applications:

The Rosemount 3051T pressure transmitter is offered with multiple process connections and is ruggedly constructed of high quality materials. A wide range of hazardous area certifications are available. Output options available to the Rosemount 3051T pressure transmitter include 4-20mA or 1-5VDC with HART protocol, Profibus, or FOUNDATION fieldbus. The Rosemount 3051T pressure transmitter offers so many options that it can be configured for any application.

Specifications:

Competitive Advantage:

Rosemount 3051T In-line Pressure transmitters provide reliable Gage and
Absolute pressure measurement in a compact in-line design. Select from the
following capabilities for seamless integration:
• Performance up to 0.04% accuracy
• Manifolds and Seal Solutions
• 4-20 mA HART, 1-5 Vdc HART low power, FOUNDATION fieldbus, and
Profibus PA protocols
• Calibrated spans/ranges from 0.3 to 10,000 psi (10,3 mbar to 689 bar)
• 316 SST and Alloy C-276 process isolators
