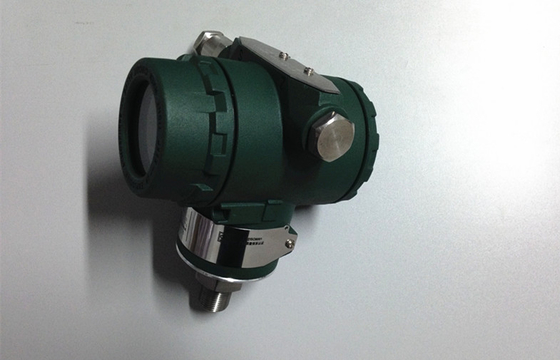

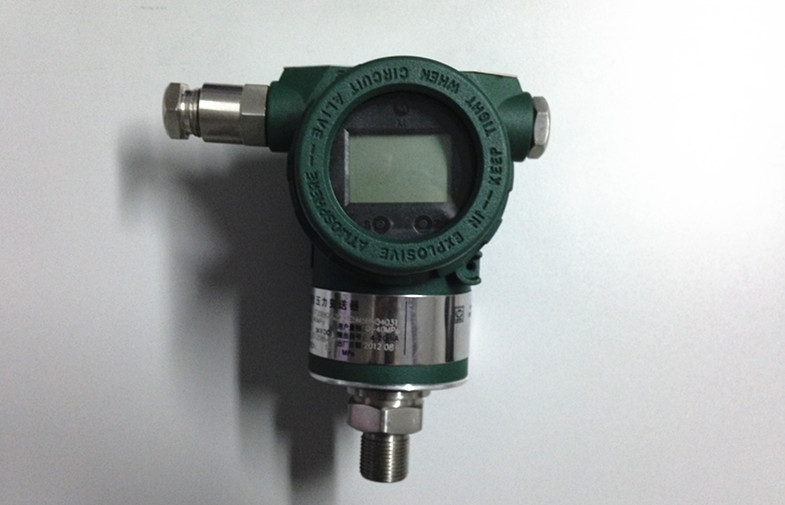

TF 3051TA Absolute Pressure Transmitter for all pressures and liquid level

TF 3051TA Absolute Pressure Transmitter for absolute pressure measurement with five - year stability of 0.125%

Quick Detail:

    · Manufactured by Zhongzhiguochuang

· Calibrated spans from 0.3 to 10000 psi

· Up 0.04% accuracy (optional)

· Total performance of ±0.15%

· Installed five-year stability of 0.125%

· Unmatched Dynamic Performance

· Optional PlantWeb Functionality to increase plant productivity

· Responds up to eight times faster than the typical pressure transmitter

Description:

Excellent measurement performance, applicable to measure all pressures and liquid level;

Adopting MEMS technology;

High accuracy;

High stability and reliability;

After 100,000 pressure tests, the tolerance is less than or equal to 0.03%/14MPa;

Not required to adjust zero point;

HART/ FoudationFieldbus communication protocols are optional;

Perfect self-diagnosis and remote communication function;

External zero/range adjustment;

Two-wire system (four-wire system is optional);

Solid-state components, plug-in printed circuit board;

Positive transfer is up to 500%, negative transfer is up to 600%;

Damper adjustable;

Excellent protective function for single overload;

No Movable mechanical parts, save maintenances costs;

Unified structure for the whole series and components are interchangeable;

The diaphragm material contacting liquid mediums are optional; (noncorrosive materials like 316L, TAN, HAS-C, MONEL and so on)

Explosive-proof structure

Applications:

TF 3051TA absolute pressure transmitter provides a superior alternative for measuring absolute pressure with the rugged, reliable performance that is characteristic of TF pressure transmitters.

Specifications:

Competitive Advantage:

TF 3051T In-line Pressure transmitters provide reliable Gage and
Absolute pressure measurement in a compact in-line design. Select from the
following capabilities for seamless integration:
• Performance up to 0.04% accuracy
• Manifolds and Seal Solutions
• 4-20 mA HART, 1-5 Vdc HART low power, FOUNDATION fieldbus, and
Profibus PA protocols
• Calibrated spans/ranges from 0.3 to 10,000 psi (10,3 mbar to 689 bar)
• 316 SST and Alloy C-276 process isolators
