Pressure Transmitter with HART , FOUNDATION fieldbus , PROFIBUS PA protocol
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | industrial pressure transducers,smart pressure transmitter |
||
|---|---|---|---|
Pressure Transmitter with HART , FOUNDATION fieldbus , PROFIBUS PA protocol
Quick Detail:
1- Flexible Coplanar, traditional, inline and level process connections to meet your installation requirements
2- Protocols include 2-20mA HART®, FOUNDATION™ fieldbus, PROFIBUS PA, 1-5Vdc HART® Low Proper for easy integration with any host
3- Stainless steel, alloy C-276, and tantalum wetted parts for compatibility with your applications
4- Fully configurable LCD to display process variable, percent of range and diagnostic messages
5- Aluminum and Stainless steel housings for all environmental compatibility
Description:

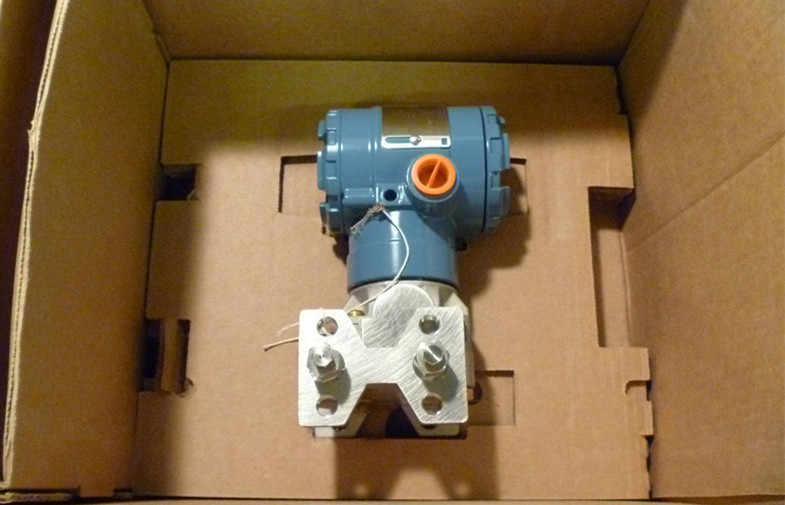

The Rosemount 2051 family of pressure transmitters empowers you to measure pressure with confidence.
The 2051 provides a reliable differential, gage, and absolute pressure measurement with a variety of output protocols, materials and process connections. Meet your pressure, level, and flow application needs with its flexible Coplanar™ platform so that you can lower project and ongoing maintenance costs.
Applications:
Rosemount 2051CD Differential Pressure transmitters provide reliable Differential pressure measurement.
Specifications:
| output: | 4-20 mA with digital signal based on HART Protocol; Low Power, 1-5 V dc with digital signal based on HART Protocol; Low power, 0.8-3.2 V dc with digital signal based on HART Protocol, optional |
| range: | 0-0.3 to 0-10,000 psi |
| accuracy: | 1-5: +/-0.075% of span |
| power: | 4-20 mA: 10.5-55 V dc with no load Low Power: 6-12 V dc with no load |
| materials: | Sensor Wetted Parts: SST, Hastelloy, Monel, Tantalum, Gold Plated SS, Gold Plated Monel |
| fluid: | Sensor fill fluid: Silicone, Inert (Halocarbon) |
| mounting: |
Coplanar and Traditional flanges and Adapters: Cadmium and Nickel-plated CS, 316 SST |
Competitive Advantage:
- Performance up to 0.04% accuracy
- Total performance of ±0.15%
- Installed five-year stability of 0.125%
- Unmatched Dynamic Performance
- Coplanar platform enables integrated pressure, flow, and level solutions
- Optional PlantWeb Functionality to increase plant productivity
- Responds up to eight times faster than the typical pressure transmitter
