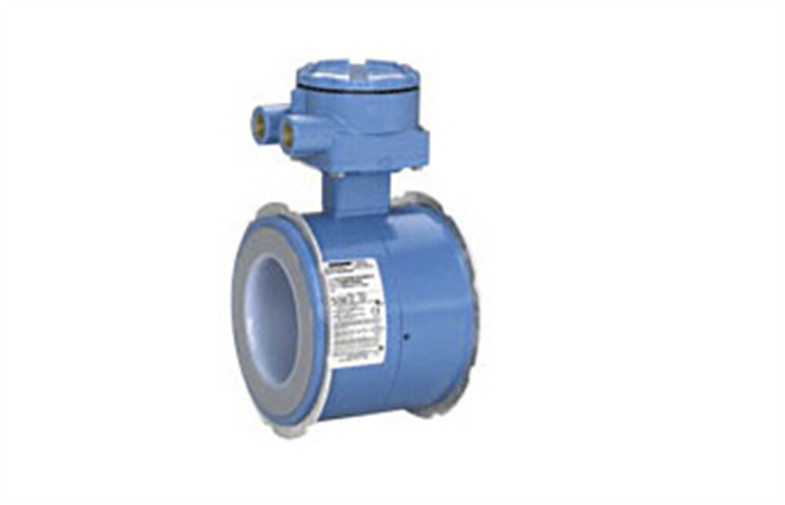

Rosemount 8711 Wafer Flowtube Sensor Economical, compact and lightweight alternative to flanged magnetic flowmeters


Quick Detail:

    · Manufactured by Rosemount

· Flangeless design

· Included alignment rings for easy installation

· 0.25% standard accuracy; 0.15% high accuracy option available

· 0.15 to 8 inch sizes available

· PTFE and PFA lining available

· 303 SST flowtube sensor

· Optional grounding electrode available


Description:

Rosemount 8711 type clamping type flow sensor without flange design makes it the flange of the electromagnetic flowmeter is an economical, compact, lightweight alternative products.Each type 8711 ring flow sensor are random provides calibration, calibration loop flow sensor can be positioned in the center of the process piping, makes it easier to install.All welded flow sensor ensures reliable performance under the most severe environment
Lightweight, easy to install the flow sensor, suitable for a variety of flow measurement.
Offers a variety of caliber and electrode material, meet your various needs.
The economic and reasonable design.

The Rosemount 8711 wafer flowtube sensor is designed for conductive liquids. The Rosemount 8711 is available in line sizes from 0.15 through 8 inches with a wide range of electrode materials to meet your needs.

The flangeless design of the Rosemount 8711 wafer flowtube sensor makes it an economical, compact and lightweight alternative to flanged magnetic flowmeters. Alignment rings provided with every Rosemount 8711, center the flowtube sensor in the process line for easy installation.

Rosemount magmeter systems use pulsed DC technology that provides continuous automatic zeroing to compensate for variations in the process environment. Process liquid must have a conductivity of 5 microsiemens/cm (5 micromhos/cm) or greater.

The Rosemount 8711 flowtube sensors are interchangeable with both the 8732E and 8712D transmitters. System accuracy on the Rosemount 8711 wafer flowtube is maintained regardless of line size or optional features. Each flowtube sensor nameplate has a sixteen-digit calibration number that can be entered into a transmitter through the Local Operator Interface (LOI) or the HART Communicator - depending on model.


Applications:

The Rosemount 8711 wafer flowtube sensor is designed for conductive liquids. The Rosemount 8711 is available in line sizes from 0.15 through 8 inches with a wide range of electrode materials to meet your needs.


Specifications:







Competitive Advantage:

The flangeless design of the 8711 wafer sensor make it an economical, compact, and lightweight alternative to flanged magnetic flowmeters. Alignment rings provided with every 8711 center the sensor in the process line and make installation easier.

· Lightweight, easy-to-install sensor for many common flow applications

· Wide range of sizes and electrode materials to meet your needs

· Cost-effective design

• Flangeless construction for minimum size and weight
• Available in sizes from 0.15 to 8 inches (4 to 200 mm)
• ETFE-lined sensors comes with a choice of electrode materials to suit most process fluids
• PTFE-lined sensors are available for applications requiring FDA approved lining material
