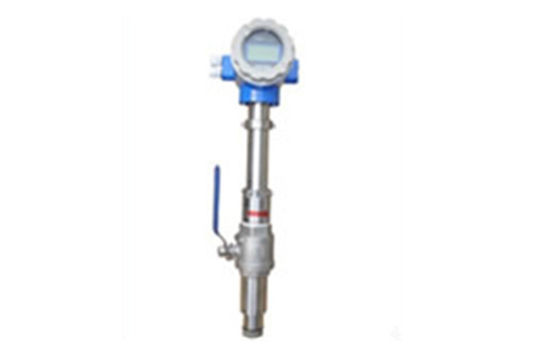

Integrated insertion electromagnetic flow meter / flowmeter for water flowrate

Integrated insertion electromagnetic flow meter / flowmeter for water flowrate

Quick Detail:

1. Medium: Conductive Liquid
2. Accuracy: +_0.5%, +_0.2% ,+_1% for flowrate
3. Material of electrode SS316L ,HC ,HB,Tianium,Tantalum,Platiniridium,Tungsten Carbide
4. Lining material: Chloroprene Rubber,Polyurethane Rubber ,PTFE ,F46 ,PFA ,FEP,Ceramics
5. Output Signal: 4-20mA ou tput ,Pulse Frequency ,Alarm for upper and lower limits
6. Communication: RS485, RS232C, HART, Profibus,MODBUS etc.
7. Power supply: 220V AC ,24VDC ,3.6V Battery power supply
8. Connection: Flange in GB ,ANSI ,JIS ,DIN all available

Description:

The magnetic flowmeter can measure the volume flow of electrically conductive liquid ,seriflux and so on.The structure of flowmeter is simple, function is reliable because there are no transmission parts, the working lifetime is long. There is no mechanical inertia, fast response, excellent stability. It can be applied on automatic inspection adjustment and program process system.

Characteristics

1. Not affected by the fluid density, viscosity, temperature,pressure and power rate change.Linear measurement

principle can achieve high precision measurement.

2.The measuring tube without a flow resistance,small pressure loss,low strait-pipe section requirement.

3.Nominal diameter is DN6-DN2000, lining and electrode has multiple choices and satisfy the measurement of multiple conductive fluid requirements.

4.Low power consumption , strong stability.

5.High speed, strong anti interference capability, high precision and measuring flow rate range up to 1500 : 1

6.High definition LCD backlight display, convenient to use.

7.Also be used in explosion-proof occasion.

8.Adopting SMD device and surface mounting technology of SMT. Circuit reliability is high.

9.High definition backlighting LCD display, easy to use and operation ,easy to learn and understand.

10.With RS485 or RS2320 digital communication signal output.

11.With the function of conductivity measurement, can judge the commutator is empty or not, with the function of self-inspection and self diagnosis.

We have senior engineers, with more than 10 years experience on the industry technology, and devote themselves to the strict QC and the thoughtful services, besides, we can talk about the client's special demand efficiently to ensure their satisfaction.

We anticipate intensive cooperation with yourself and your company to our mutual benefit, and hereby offer professional products, active and efficient support, and worry-free after-sales service.

If you have any inquiries, contact us .

Applications:

The main application area;

Pure water, sewage water

Electronic manufacture and assign

Chemistry and industrial medicine

Specifications:

Competitive Advantage:

1.Integrated type ,
2.Digital display,
3.Professional mfr
4.High accuracy good price
