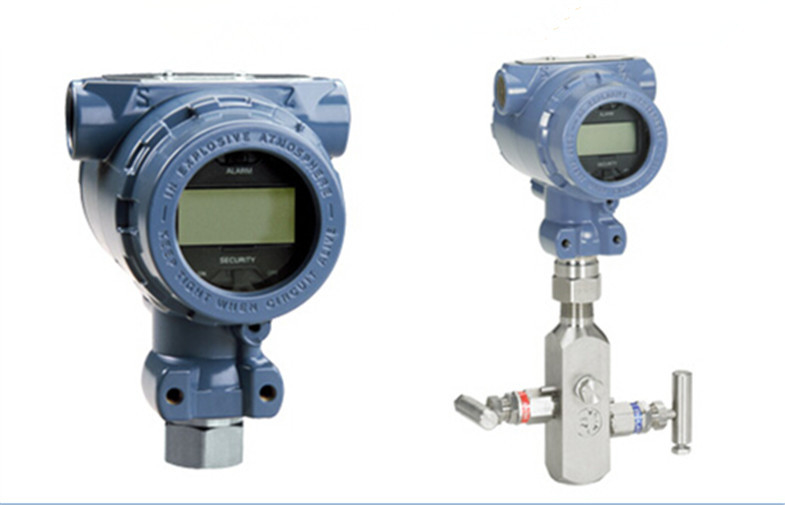

small compact Rosemount 2088A Pressure Transmitter for line pressure / tank level

Rosemount 2088A Pressure Transmitter with  small compact design providing quick , easy , cost effective installation

Quick Detail:

    · Manufactured by Rosemount

· Absolute of gauge pressure measurement

· For pressures up to 4000 psi

· Accuracy: ±0.10%

· Rangeability: 20:1

· Integral manifold

· Stainless steel or Hastelloy wetted materials

· Smart communications

· External push button zero and span capabilities

Description:

The Rosemount 2088 pressure transmitter provides accurate, stable, and reliable pressure measurement in difficult applications. The small compact design allows the Rosemount 2088 pressure transmitter to be directly connected to a process - providing a quick, easy, and cost effective installation.

The Rosemount 2088 pressure transmitter provides superior measurement capability that can be used for almost any line pressure or tank level applications. The Rosemount 2088 pressure transmitter is available in either gauge or absolute pressure in pressure ranges to 4,000 psi (275 bar). The Rosemount 2088 pressure transmitter utilizes a solid-state, polysilicon pressure sensor with a choice of either 316L or Hastelloy C-276 isolating diaphragms. The low oil fill of this design has very little temperature effect and outstanding accuracy.

The Rosemount 2088 pressure transmitter is suitable for almost any location in which value is a priority. Its patented piezoresisitive silicon sensor, dual-compartment housing, and compact, lightweight design adds up to a reliable, convenient, an economical installation wherever it is applied. The Rosemount 2088 pressure transmitter is designed with reliability, long-term performance, and maintainability in mind.

The Rosemount 2088 pressure transmitter is available with a wide range of options to provide solutions for virtually any application.

Applications:

The Rosemount 2088 pressure transmitter provides superior measurement capability that can be used for almost any line pressure or tank level applications. The Rosemount 2088 pressure transmitter is available in either gauge or absolute pressure in pressure ranges to 4,000 psi (275 bar).

Specifications:

Competitive Advantage:

· Available protocols include 4-20 mA HART and 1-5 Vdc HART Low Power

· Scaled Variable enables application specific engineering units

· Choice of Stainless Steel or Alloy C-276 wetted materials

· Lightweight, compact design for easy installation

· Internal and external button options are available to simplify commissioning and maintenance
