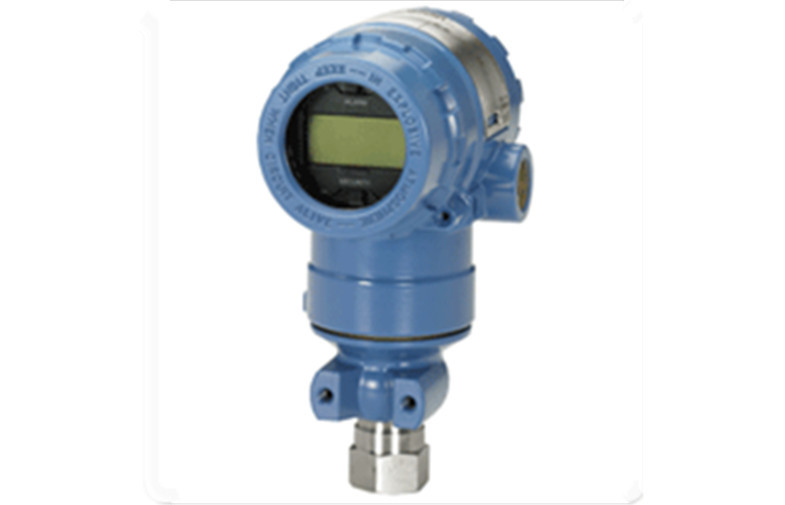

high performance absolute pressure measurement Rosemount 2051TA

Rosemount 2051TA for absolute pressure measurement with a wide range of hazardous area certifications

Quick Detail:

    · Manufactured by Rosemount

· Reference Accuracy of 0.075%, optional 0.065%

· Two-year stability of 0.10%, optional five-year stability

· Rangeability of 100:1

· Pressure ranges of 30, 150, 800, 4000and 10,000 psi

· Protocols available include 4-20 mA HART, FOUNDATION fieldbus, 1-5 Vdc HART Low Power

· 316L SST and Hastelloy C-276 process wetted parts

Description:

The Rosemount 2051T pressure transmitter offers absolute or gauge pressure measurements to 10,000 psi with advanced capabilities designed to meet a wide range of applications and to easily integrate into existing or new installations.

The versatile Rosemount 2051T pressure transmitter has a standard reference accuracy of 0.075% along with 100:1 rangedown and extended two-year stability of 0.10% to provide confidence in your pressure measurements. For applications demanding even more precision, an enhanced accuracy of 0.065% with 5-year stability is available as an option.

The Rosemount 2051T pressure transmitter is available with a range of process connections and features 316L stainless steel and Hastelloy ® C-276 process wetted parts. The Rosemount 2051T pressure transmitter is also available with a wide range of hazardous area certifications.

Output options available to the Rosemount 2051T pressure transmitter include 4-20mA HART, Low Power HART, or FOUNDATION fieldbus output protocols. The Rosemount 2051T pressure transmitter offers so many options that it can be configured for any application.

Applications:

The 2051 family of pressure transmitters offers
differential, gage, and absolute pressure
measurements. The complete offering ensures the
2051 meets your measurement needs.

Specifications:

PERFORMANCE SPECIFICATIONS
For zero based spans, reference conditions, silicone oil fill, SST materials, Coplanar flange (2051C) or 1/2 in. - 14 NPT (2051T) process connections,
digital trim values set to equal range points. Applicable to 4-20 mA HART output only unless otherwise noted.
Conformance To Specification (±3s (Sigma))
Technology leadership, advanced manufacturing techniques and statistical process control ensure specification conformance to at least ±3s

Competitive Advantage:

• Reference Accuracy of 0.075%
• Rangeability of 100:1
• Protocols available include 4-20 mA HART®,
FOUNDATION™ fieldbus, 1-5 Vdc HART Low
Power
• Coplanar™ platform enables integration of
primary elements, manifolds, and remote seal
solutions
• Complete pressure transmitter family to meet
your pressure, level, and flow needs
