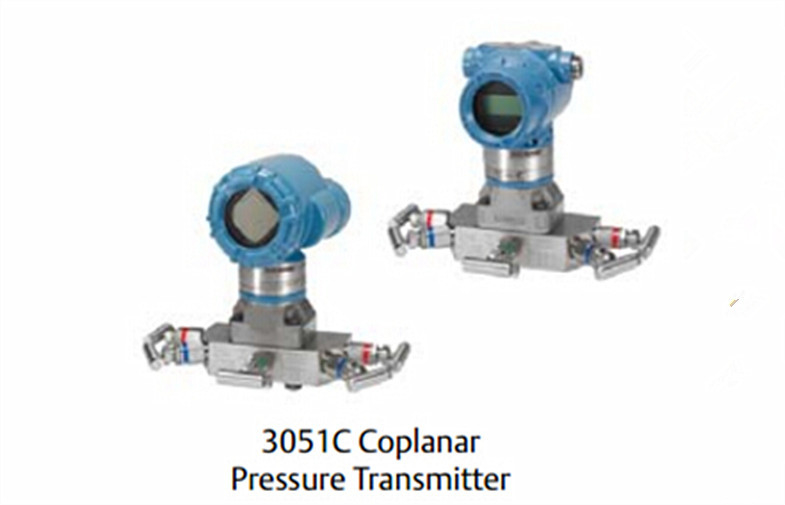

precision Rosemount 3051CA Absolute Pressure Transmitter 4-20 mA output

Rosemount 3051CA Absolute Pressure Transmitter Calibrated spans from 0.1 inH2O to 4000 psi

Quick Detail:

• Performance up to 0.04% accuracy
• Manifolds, Primary Elements and Seal Solutions
• 4-20 mA HART, 1-5 Vdc HART low power, FOUNDATION fieldbus, and
Profibus PA protocols
• Calibrated spans/ranges from 0.1 inH2O to 4000 psi
(0,25 mbar to 276 bar)
• 316 SST, Alloy C-276, Alloy 400, Tantalum, Gold-Plated Alloy 400 or
316L SST wetted materials

Description:

Rosemount 3051C Coplanar Pressure Transmitters are the industry standard for Differential,
Gage, and Absolute pressure measurement. The Coplanar Platform enables seamless
integration with manifolds, flow and level solutions. Capabilities include:
n Power Advisory can proactively detect degraded electrical loop integrity issues (Option Code
DA0)
n Local Operator Interface with straightforward menus and built-in configuration buttons
(Option Code M4)
n Scaled variable, process alerts and selectable HART® (Option Code HR5 or HR7)
n Safety Certification (Option Code QT)

Applications:

Rosemount 3051CA Coplanar Pressure Transmitters are the industry standard for Absolute pressure measurement.

Specifications:

Competitive Advantage:

· Safety Certified to IEC 61508

· Static pressure option up to 6,092 psi (420 bar)

· Process Pressure and Sensor Temperature Alerts

· User configurable alarm and saturation values

· Adjustable low flow cut-off
