Product Details:
Payment & Shipping Terms:
|
Measuring Range: | 0-3000 Kg/m3 (0-3 G/cc) | Density Accuracy: | ±1.0 Kg/m3 (±0.001 G/cc) |
---|---|---|---|
Temperature Accuracy: | BS1904, DIN 43760 Class 'B' | Safety Approvals: | ATEX, CSA, IECEx |
Display: | Two-line, LCD Screen | Outputs: | 4-20mA, HART, Modbus RS-485 ,FF |
High Light: | coriolis mass flowmeter,micromotion coriolis meter |

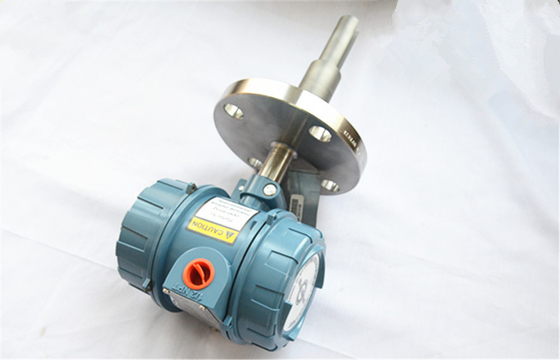

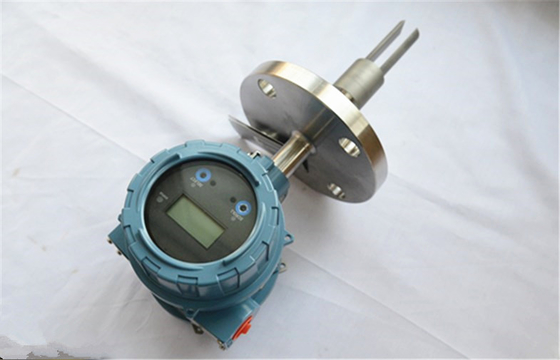

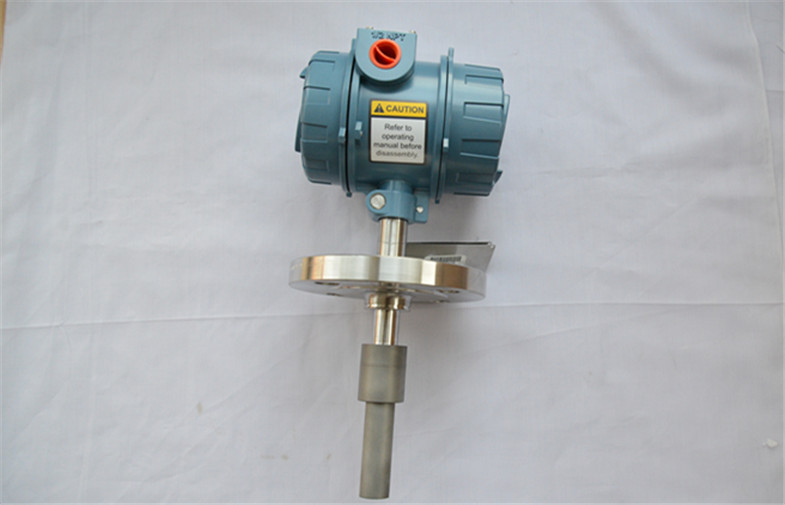

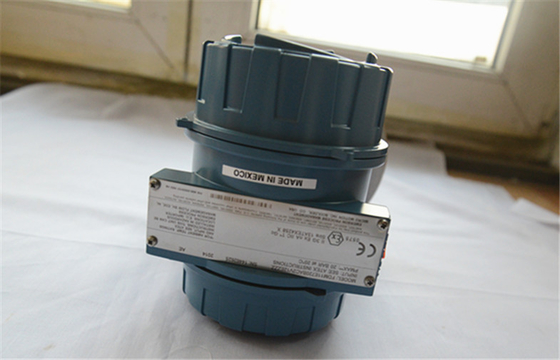

Industry Micro Motion 4 - 20 mA fork Density Meter for Liquid
Quick Detail:
Our Fork Density Meter (FDM) delivers accurate online density and concentration measurement using a direct insertion tuning fork design. This rugged and reliable meter raises the standard for inline density and concentration monitoring and enhances the interface detection, concentration control and blending operations of process fluids as diverse as refined hydrocarbons, mineral slurries and corrosive liquids such as acids and alkalis.
Description:
The Micro Motion Fork Density Meter Delivers:
Superior Measurement Capabilities
• A rugged direct insertion sensor that provides the best, real-time measurement of density (±1.0 kg/m3) and concentration (±0.1%)
• Multiple corrosion resistant materials for the most demanding process conditions
• Application flexibility with pipeline, bypass (fast) loop and tank installation support
A World-Class Leading Electronics Platform
• Local display and user interface that allows for simplified device management, minimizing maintenance requirements
• Simple integration into DCS, PLC and flow computers (Frequency/Time Period, Analog 4-20mA, HART, Modbus RS485, and FOUNDATION Fieldbus)
• Revolutionary device diagnostics and verification methods
Robust and Flexible Measurement
• Application-specific measurement and output configurations to ensure simple set-up and commissioning
• Optimized design; insensitive to vibration, temperature and pressure variations
Applications:
Pipeline & Terminals
• Interface and Product Detection
Improve cut-over accuracy and product quality determination to reduce scrap, waste or down-grading of multi-product pipelines
• Leak Detection
Improve leak detection thresholds and reduce false alarms
Refining, Chemical & Petrochemical
• Product Quality and Process Control
Optimize residence/cycle time while minimizing energy usage in condensers, contactors and reactors
• Blending and Concentration Control
Reduce waste, rework and giveaway with optimal feed and production fluid quality measurementMetals, Mining & Minerals
• Flue Gas De-Sulphurization
Minimize raw material costs for optimized emissions and taxation reduction
• Mineral Slurries
Optimize end product efficiency through characterized slurry composition
Specifications:
Density accuracy | ± 0.001g / cc (± 1.0kg / m3) (± 0.06 lb / ft3) |
Density range | 0 - 3g / cc (0 - 3000kg / m3) (0-187.4 lb / ft3) |
Repeatability | ± 0.0001g / cc (± 0.1kg / m3) (± 0.006 lb / ft3) |
Temperature Effect | ± 0.0001 g / cc / ° C |
Pressure rating | Short game: 3000psi (207bar) |
Temperature Range | Temperature: -60 ° F to + 392 ° F (-50 ° C to + 200 ° C) |
Viscosity range | Up to 500 cP |
Wetted parts | 316L stainless steel, nickel alloys, Monel 400 nickel-based alloys, titanium and zirconium |
Rod length range | 1.6 - 13ft (0.5 - 4m) |
Electronic components | Frequency output or 4-20 mA and digital communication |
Competitive Advantage:
Unique direct insertion design in lengths of up to 4 m (13 ft)Rugged, accurate density and concentration
measurement
Superior multi-variable I/O, meter health, and application capabilities
Installation flexibility and compatibility
