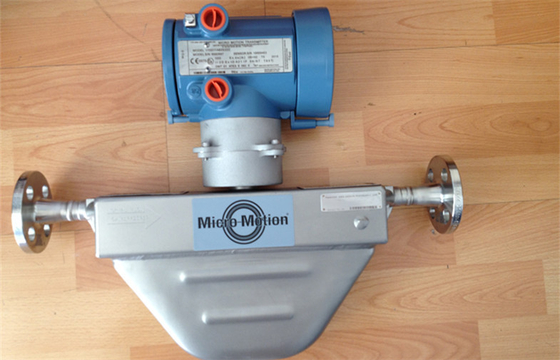

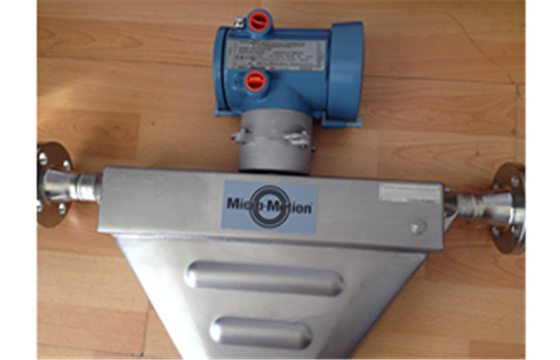

F Series Micro Motion Coriolis Meter Mass Flow / Density Meter With MVD Technology

F Series Micro Motion Coriolis Meter Mass Flow / Density Meter With MVD Technology

Quick Detail:

• Flow accuracy to ±0,10% and density accuracy to ±1,0 kg/m3 on liquids
• Self-draining
• Optional secondary containment
• High-temperature and high-pressure models available


Description:

Micro Motion F-Series meters offer highly
accurate flow and density measurement for
virtually any process fluid. F-Series meters come
with a smooth exterior finish that can easily be
kept clean, and all F-Series meters can be
installed to be self-draining.
Micro Motion F-Series meters can be purchased
with an optional secondary containment rating.
This rating is supported by a pneumatic leak test
of the sensor enclosure, along with documentation
that describes how the safety of the sensor has
been verified according to ASME B31.3
standards.


Micro Motion offers an on-line sizing program for
finding the best products to fit your application.
The sizing program allows you to specify the
parameters that matter to you, such as accuracy,
flow capacity, pressure drop, or turndown.


Applications:

Micro Motion Coriolis meters meet a vast range of application needs, ranging from extreme low-flow up to
high-flow, high-capacity lines. Cryogenic, hygienic, high-temperature, and high-pressure—Micro Motion
meters can handle them all. Micro Motion meters are available with a variety of wetted parts to ensure the
best material compatibility. Now with the industry’s only 2-wire Coriolis option, Micro Motion provides
unsurpassed simplicity of installation and application flexibility.

Coriolis meters.Coriolis meters offer dramatic
benefits over traditional volumetric measurement
technologies. Coriolis meters:

Specifications:

Competitive Advantage:

• Deliver accurate and repeatable process data
over a wide range of flow rates and process
conditions.
• Provide direct inline measurement of mass flow
and density, and also measure volume flow and
temperature—all from a single device.
• Have no moving parts, so maintenance costs
are minimal.
• Have no requirements for flow conditioning or
straight pipe runs, so installation is simplified
and less expensive.
• Provide advanced diagnostic tools for both the
meter and the process.
