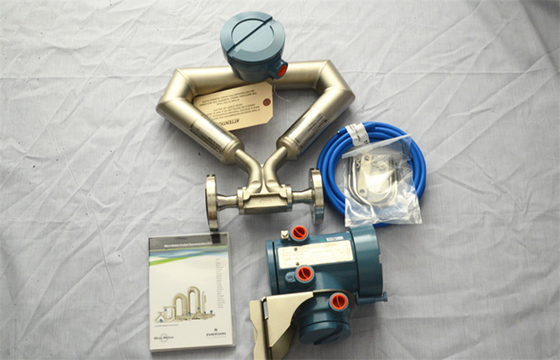

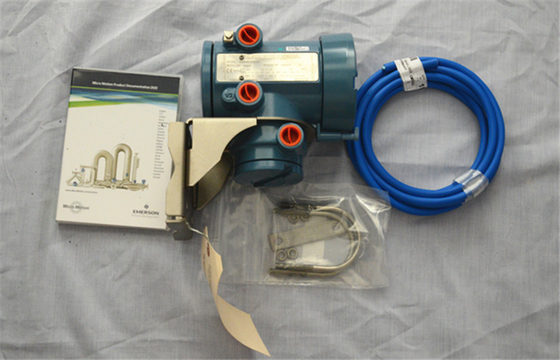

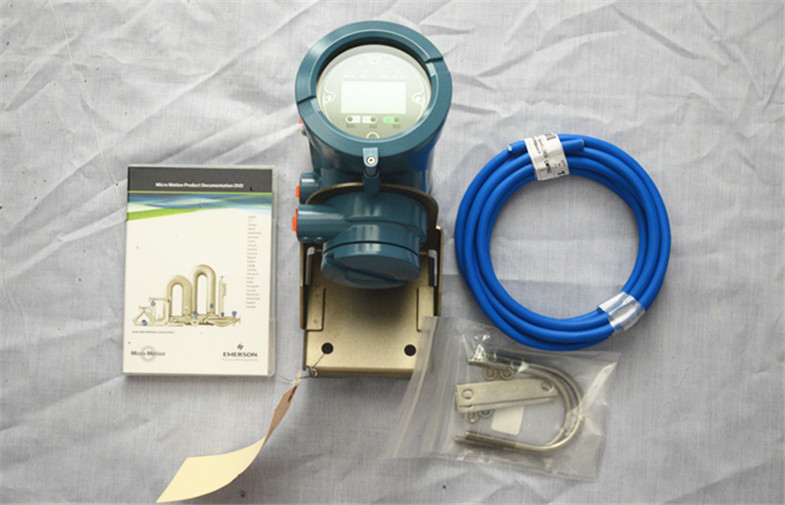

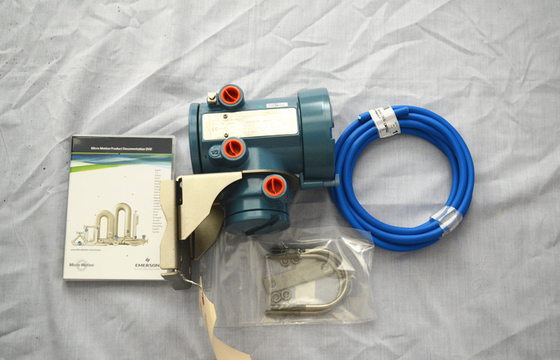

Emerson Micro Motion transmitter Series 1000 flow measurement transmitter

Emerson Micro Motion transmitter Series 1000 flow measurement transmitter


Quick Detail:

Type 1700: by HART or digital communication protocol Modbus, output in the form of ma and frequency/pulse output one of the following variables: mass flow, volume flow or standard gas volume flow
, 2700: by HART, Modbus, or FOUNDATION fieldbus PROFIBUS - PA digital communication protocol, to the output of the selected combinations (including ma, frequency and discrete I/O) at the same time the output multiple variables (including mass flow, volume flow rate, gas standard volume flow, density, temperature and driving gain)
Installed, with compact, one way to the sensor, can rotate 360 degrees;Also can through the remote installation options to four line or nine line high accurate sensors
, electronic components using MVD ™ technology
, 1, 1 area (Class I, Division 1 / Zone 1) local operator interface, supports English, French, Spanish, German
In situ instrument, self checking technology
• by SIS safety certification
, there are standard or special update rate to choose from, so as to improve the response time
Self checking, intelligent instruments may be fully check the performance of the sensor




Description:


For applications requiring only mass flow or volume flow measurement
Series 1000 transmitters are ideal for flow applications where only a single variable is needed at any given time. Series 1000
transmitters feature a milliamp and a frequency/pulse output, and HART® or Modbus® digital communications.
Series 1000 transmitters can outputoneof the following variables:
• Mass flow rate             • Volume flow rate
Series 2000 Multivariable Transmitter
For applications requiring simultaneous monitoring of multiple flow variables
Series 2000 transmitters are designed specifically for applications where multiple variables are needed simultaneously. Series 2000 transmitters feature a milliamp and a frequency/pulse output,plus HART, Modbus, FOUNDATION™Fieldbus, and Profibus-PA digital communications.

Series 2000 transmitters cansimultaneously output multiple variables, including:
• Mass flow rate            • Volume flow rate              • Density          • Temperature          • Drive gain

Technology Leadership
Emerson's world-class research and development capabilities support ongoing product development to find solutions for difficult application and process challenges.
• Unmatched flow measurement accuracy and performance over the widest flow range, in changing operating conditions, regardless of environmental effects
• Smart Meter Verification is the only diagnostic tool available to check the entire meter’s performance and integrity online, on-demand and in less than 2 minutes
• Superior gas flow measurement using Micro Motion Coriolis meters eliminate the need for pressure and temperature compensation even in the most demanding custody transfer applications
• World-leading and unmatched ±0.0001 g/cm3 density measurement accuracy and repeatability
• Most accurate, reliable magnetic flowmeter with advanced diagnostics, improves process control while delivering ongoing maintenance savings
• The only all-cast/all-weld designed Vortex meter eliminates clogging and leaking to deliver unmatched reliability
• The most flexible Coriolis EtherNet/IP solution for new and retrofit applications
• Smart Wireless THUM TM Adapter can unlock multivariable measurement, advanced diagnostics, meter verification, and totalized flow in your existing flow devices
• Process disruptions are eliminated with industry-leading flow measurement performance and accuracy in two-phase flow conditions
• World-leading and unmatched ±0.1% gas density and gas specific gravity measurement accuracy to ISO17025 accreditation standards

Applications:

Meter verification
TÜV SIS certification
Discrete batch control
Petroleum measurement
Custody transfer


Specifications:




Competitive Advantage:

• Advanced architecture with flexible
installation options
• High-speed DSP
• Extensive built-in diagnostics
• Easy configuration and set-up
• On-board meter verification
, the MVD digital processing technology, can be in gas and empty with empty batch applications provide advanced built-in diagnostic performance
In situ instrument, the real self checking can determine the operation state of the sensor, online not interrupt process at the same time, also need not auxiliary reference, so as to realize rapid, operational, and simplify the performance of the check
For bulk and shipment and gas application which has the best ability of two-phase flow measurement
, compact structure, convenient installation, low cost of wiring
