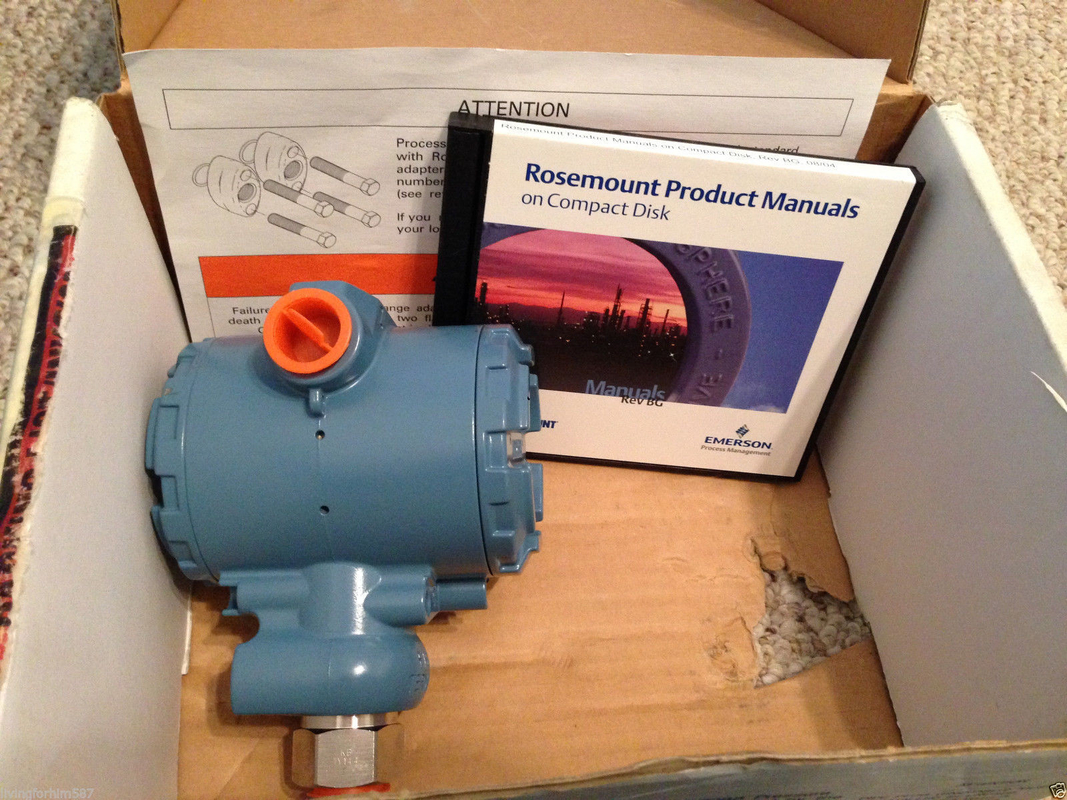

Low Power Absolute Pressure Transmitter HART 2088A

Low Power Absolute Pressure Transmitter HART 2088A

Quick Detail:

Manufactured by Rosemount
Absolute of gage pressure measurement
For pressures up to 4000 psi
Accuracy: ±0.10%
Rangeability: 20:1
Integral manifold
Stainless steel or Hastelloy wetted materials
Smart communications
External push button zero and span capabilities

Description:

The Rosemount 2088 pressure transmitter provides accurate, stable, and reliable pressure measurement

in difficult applications. The small compact design allows the Rosemount 2088 pressure transmitter to be

directly connected to a process - providing a quick, easy, and cost effective installation.

The Rosemount 2088 is a highly reliable and accurate transmitter in a lightweight, compact package.

The 2088 can be calibrated to ranges as low as 0 to 1.5 psi (0.1 bar) and as high as 0 to

4000psi (275.8 bar). It can also be used to measure negative pressure ranges. The 2088 measurement

capabilities enable reliable use in almost any application.

Reference Accuracy: ± 0.10% of Span

Rangeability: 20:1

Installed Stability of ± 0.10% of URL for 12 months

Protocols available include 4-20mA HART®and 1-5 Vdc HART Low Power

Applications:

The Rosemount 2088 pressure transmitter provides superior measurement capability that can be used for almost any line pressure or tank level applications. The Rosemount 2088 pressure transmitter is available in either gauge or absolute pressure in pressure ranges to 4,000 psi (275 bar).

Specifications:

Competitive Advantage:

· Available protocols include 4-20 mA HART and 1-5 Vdc HART Low Power

· Scaled Variable enables application specific engineering units

· Choice of Stainless Steel or Alloy C-276 wetted materials

· Lightweight, compact design for easy installation

· Internal and external button options are available to simplify commissioning and maintenance
