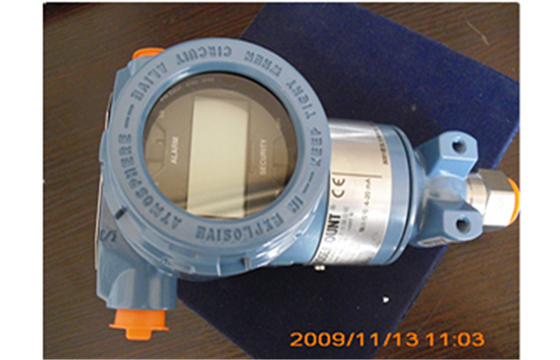

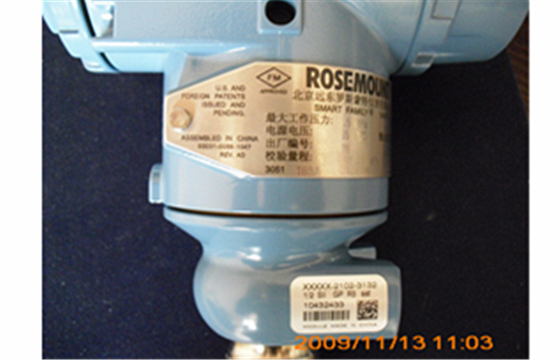

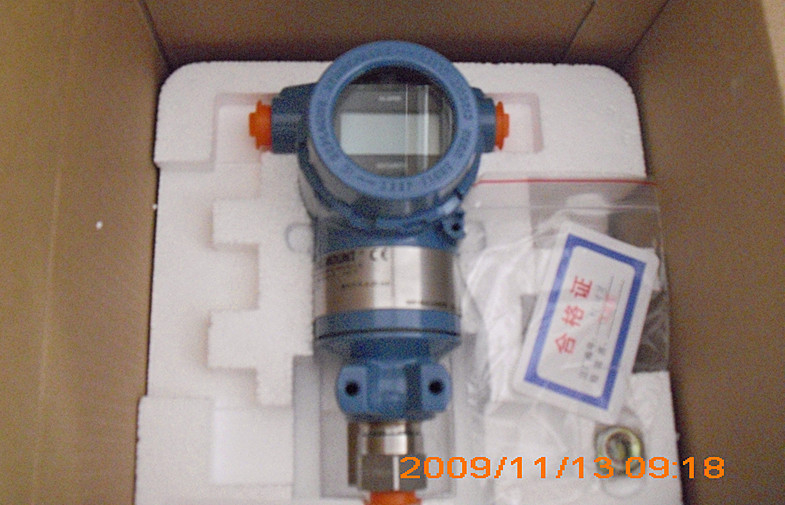

Rosemount 3051TG pressure transmitter

Rosemount 3051TG china pressure transmitter  for gauge pressure measurement

Quick Detail:

· Manufactured by Rosemount

· Calibrated spans from 0.3 to 10000 psi

· Up 0.04% accuracy (optional)

· Total performance of ±0.15%

· Installed five-year stability of 0.125%

· Unmatched Dynamic Performance

· Optional PlantWeb Functionality to increase plant productivity

· Responds up to eight times faster than the typical pressure transmitter

Description:

The Rosemount 3051T pressure transmitter combines proven sensor and electronics technologies with a single isolator design for absolute and gage pressure measurements from 0.3 to 10,000 psi. The Rosemount 3051T pressure transmitter provides a superior alternative for measuring absolute or gage pressure with the rugged, reliable performance that is characteristic of Rosemount pressure transmitters.

The Rosemount 3051T pressure transmitter utilizes advanced sensor technology to maintain a reference accuracy of 0.065% of span (up to ±0.04% with high accuracy option) resulting in total operating performance, the true measure of "real-world" transmitter performance, of ±0.15%. Additionally, the Rosemount 3051T pressure transmitter has an installed five-year stability of ±0.125% demonstrating the ability to maintain performance over a five year period under the most demanding process conditions. The high accuracy and stability of the Rosemount 3051T pressure transmitter equates to reduced variability, lower operating and maintenance costs, and improved plant safety.

The Rosemount 3051T pressure transmitter is offered with multiple process connections and is ruggedly constructed of high quality materials. A wide range of hazardous area certifications are available. Output options available to the Rosemount 3051T pressure transmitter include 4-20mA or 1-5VDC with HART protocol, Profibus, or FOUNDATION fieldbus. The Rosemount 3051T pressure transmitter offers so many options that it can be configured for any application.

Applications:

Liquid, gas which is compatible with 316L stainless steel

Marine, aviation industry

Hydraulic and pneumatic control system

Petroleum, chemical industry, metallurgy, electricity, hydrology industry process at the scene

Specifications:

Competitive Advantage:

· Manufactured by Rosemount

· Calibrated spans from 0.3 to 10000 psi

· Up 0.04% accuracy (optional)

· Total performance of ±0.15%

· Installed five-year stability of 0.125%

· Unmatched Dynamic Performance

· Optional PlantWeb Functionality to increase plant productivity

· Responds up to eight times faster than the typical pressure transmitter
