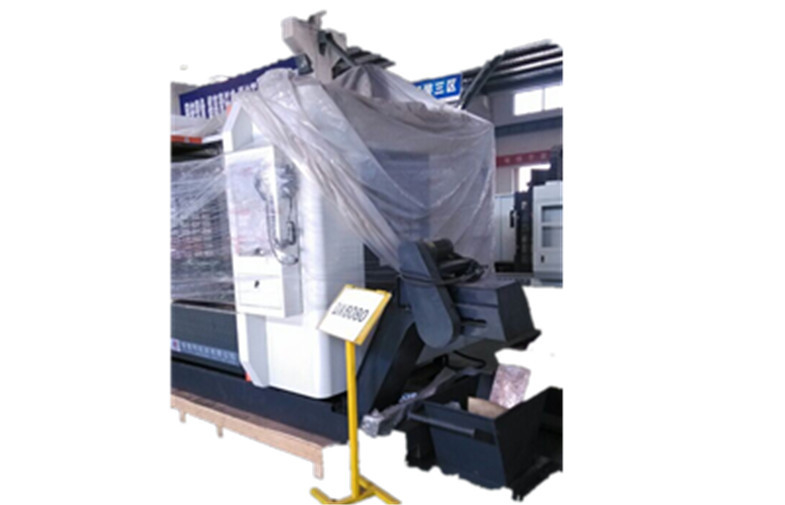

High Precision horizontal machining center / high speed cnc milling machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Spindle Power: | 5.5kw | Spindle Taper: | ER32 |
|---|---|---|---|
| X. Axis Position Accuracy: | 0.006 M / Min | Y Axis Position Accuracy: | 0.006 M / Min |
| Z Axis Position Accuracy : | 0.005 M / Min | Cutting Feed Speed: | 10 M / Min |
| High Light: | CNC machining services,precision machining center |
||
High Precision horizontal machining center / high speed cnc milling machine
Quick Detail:
1. The resin sand casting , two aging
2. Adopt electric spindle , long service life , high precision
3. Three direct axis , large transission torque , high precision
4. Suitable for mold , motor , and tool model processing
Description:
1. Engineers are available to do oversea machinery service. In some countries, we have oversea agent doing after-sale service in time and professionally.
2. 24 hours heart to heart service on-line or mobile.
3. Training in our factory and on-line are free of cost.
4. Warranty is 12 months, small broken parts are free of cost to replace, spare parts are delivered with machine for customer convenience.
5. We offer best agent price and distributer price.
Applications:
Widely used in mold , shoemaking , trademark , leather , watchmaking , mint , hardware industry and so on . In particular the need for need for high-speed machining of metals .
Specifications:
Standard Configuration Checklist
Item |
| Product Description | Standard configuration |
|
1 | System | System | LNC T515i |
|
2 | Servo drive | 6Nm/8Nm | X-- 6Nm; Y--6Nm ; Z-- 8Nm |
|
3 | Spindle | Spindle brand | Zhejiang China |
|
Spindle power | 5.5KW |
| ||
Spindle speed | 24000r/min |
| ||
Spindle structure | Spindle+ER32 collet |
| ||
4 | Guideway | X:HGH30HA2R1080ZAPⅡ distance 20 | Guideway -- ShangYin |
|
5 | Lead screw | X:R32-5T4FDIC-695-860-0.021 -- 860 | Lead screw -- ShangYin |
|
6 | Coupling | X: JM2-40-19-20 | □ R+W |
|
7 | Automatic lubrication systems | lubrication pump+ unit | Automatic lubrication |
|
8 | Cooling water system | Cooling water pump + |
| |
The main technical parameters
Specifications | Unit | DX6050 |
Work table size (L*W) | mm | 600×500 |
Max.load capacity of work table | kg | 250 |
T-slot(No.*slot width*spacing) | mm | 5-16×100 |
X axis travel | mm | 600 |
Y axis travel | mm | 500 |
Z axis travel | mm | 280 |
Distance from work table surface to spindle and face | mm | 30-330 |
Distance between two columns | mm | 660 |
Spindle taper | ER | ER32 |
Spindle speed | rpm | 24000 |
Spindle power | kw | 5.5 |
Spindle driving type | step | Hidden style |
Cutting feed speed | m/min | 10 |
X.Y.Z rapid feed speed | m/min | 15 |
X. axis position accuracy | m/min | 0.006 |
Y axis position accuracy | m/min | 0.006 |
Z axis position accuracy | m/min | 0.005 |
X axis reposition accuracy | m/min | ±0.005 |
Y axis reposition accuracy | m/min | ±0.005 |
Z axis reposition accuracy | m/min | ±0.003 |
Dimension (L*W*H) | mm | 2200×1800×2100 |
N.W. | T | 3.6 |
