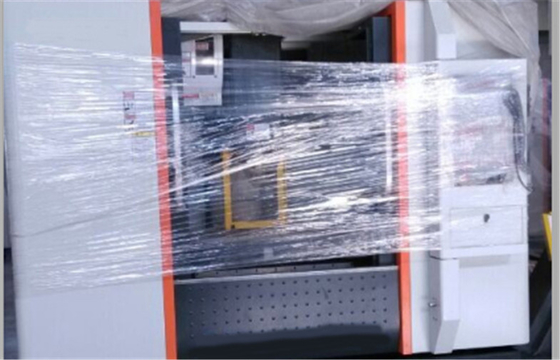

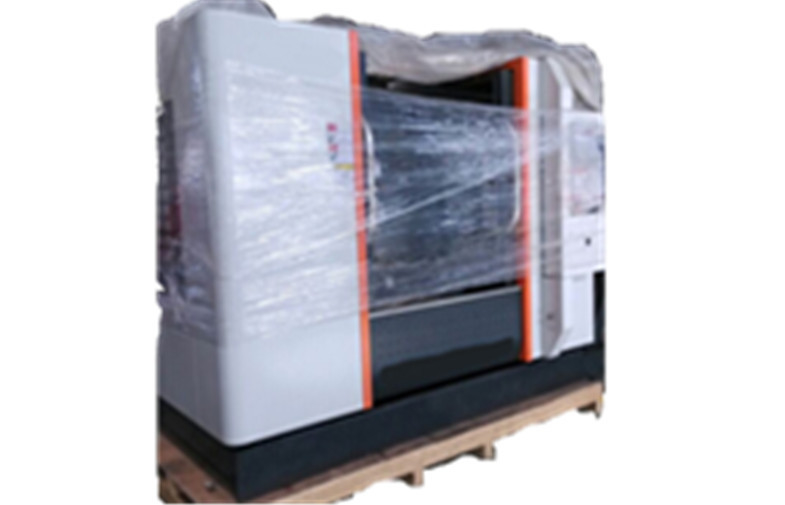

CNC Vertical Machining Center with Automation lubrication system
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Work Table Size: | 1050*500 Mm | X Axis Travel: | 800 Mm |
|---|---|---|---|
| Y Axis Travel: | 500 Mm | Z Axis Travel: | 550 Mm |
| T-slot: | 5-18*90 Mm | Spindle Tool Bar: | BT40 |
| High Light: | CNC machining services,precision machining center |
||
CNC Vertical Machining Center with Automation lubrication system
Quick Detail:
- Japanese NSK bearing
- Germany R+W coupling
- Automation lubrication system
- Chip conveyor at optional
Description:
Standard accessories
1) Automatic lubrication systems (including lubrication pump)
2) Cooling water system
3) air-cooled, a set of line (non-air-pressure,oil-water separators)
VMC 850 The parts after first clamping can complete many machining processes including milling,probing ,expending,hinging and tapping and featured by the advantages of high degree of automation, high reliability , easy and pleasant operation , nice overall shape , as well as high degree mechanical and electrical integration .Vertical Machining Center is the machine tool of a new generation by ZZGC company with introduction of the advanced technology .The distinctive hardening plastic coated hard rail guide way of the machine tool is not only suitable for processing of precision parts like plate,disc and shell,but also applicable for mould process.It has the ATC system ,fully enclosed protective shield ,automatic lubrication system,cooling system,automatic chip removal device,manual spray gun and portable MPG.
Applications:
Widely used in machining and tooling for manufacturing vertical centers , able to adapt from roughing to finishing the processing requirements , to be completed by milling , drilling , tapping , boring and many other processes .
Specifications:
|
Specifications |
Unit |
VMC850 |
|
Work table size |
mm |
1050*500 |
|
X axis travel |
mm |
800 |
|
Y axis travel |
mm |
500 |
|
Z axis travel |
mm |
550 |
|
Distance between spindle center |
mm |
550 |
|
Distance between spindle end |
mm |
105-655 |
|
T-slot |
|
5-18*90 |
|
Spindle tool bar |
|
BT40 |
|
Magazine |
|
16--Piece bamboo hat ATC |
|
Maximum tool diameter / length / weight |
|
φ100mm / 350mm / 8kg |
|
Max.diameter of cutter (adjacent non tool) |
mm |
φ150 |
|
Speed speed |
rpm |
8000 |
|
Spindle motor |
kw |
7.5/11 |
|
X.Y.Z axis servo motor |
kw |
2.0/2.0/2.0 |
|
X.Y.Z axis motor connection |
|
direct connection |
|
Max.load capacity of work table |
kg |
600 |
|
X.Y.Z rapid feed speed |
m/min |
20/20/15 |
|
X.Y.Z cutting feed speed |
mm/min |
1-10000 |
|
X.Y.Z axis position accuracy |
mm |
±0.005/300 |
|
X.Y.Z axis reposition accuracy |
mm |
±0.003 |
|
Dimension (L*W*H) |
mm |
2700 * 2250 * 2700 |
|
N.W. |
T |
6 |
Warranty
1. Engineers are available to do oversea machinery service. In some countries, we have oversea agent doing after-sale service in time and professionally.
2. 24 hours heart to heart service on-line or mobile.
3. Training in our factory and on-line are free of cost.
4. Warranty is 12 months, small broken parts are free of cost to replace, spare parts are delivered with machine for customer convenience.
5. We offer best agent price and distributer price
