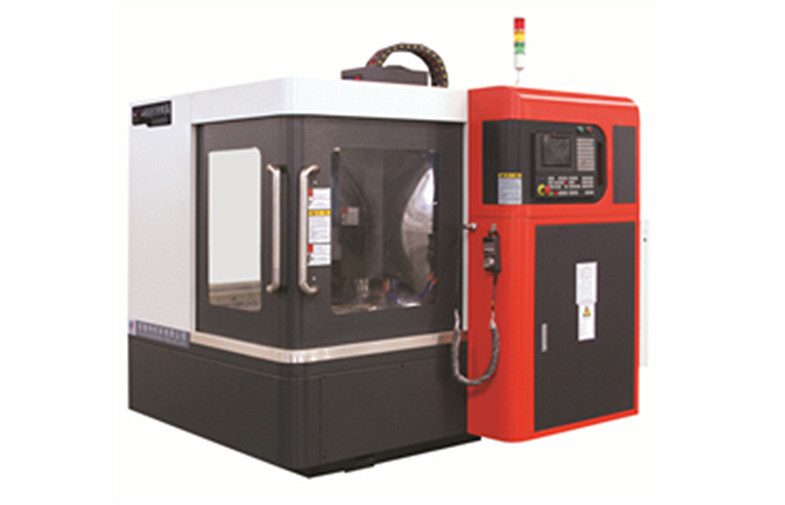

Engraving and Milling machine for mold / motor / tool model processing
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Condition: | New | Type: | Horizontal |
|---|---|---|---|
| CNC Or Not: | CNC | Automatic Grade: | Automatic |
| Max. Swing Diameter: | 350mm | Voltage: | 380v |
| Power(W): | 15kw | Dimension(L*W*H): | 4900*4500*2850mm |
| Weight: | 9500kg | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Warranty: | 12 Months | Work Table Size: | 500*500MM |
| X Axis Travel: | 900MM | Y Axis Travel: | 750MM |
| Z Axis Travel: | 1250MM | Tool Quantities: | 24 |
| Spindle Taper: | BT50 | Spindle Speed: | 8000rpm |
| Fast Feeding Speed: | 24 M/min | Net Weight: | 3.8T 4T 4.8T 5.5T |
| Machine Dimension: | 2200*1800*2100MM | ||
| High Light: | CNC machining services,precision machining center |
||
Engraving and Milling machine DX6050 / DX6080 DX1010 / DX1310 with three direct axis , large transmission torque
Quick Detail:
● The resin sand casting, two aging
● Adopt electric spindle, long service life, high precision
● Three direct axis, large transmission torque, high precision
● Suitable for mold, motor, and tool model processing
Description:
1.Warranty for this threading machine
1. engineers are available to do oversea machinery service. In some countries, we have oversea agent doing after-sale service in time and professionally.
2.24 hours heart to heart service on-line or mobile.
3. training in our factory and on-line are free of cost.
4. warranty is 12 months, small broken parts are free of cost to replace, spare parts are delivered with machine for customer convenience.
5.We offer best agent price and distributer price.
2.Customer and delivery
accept ODM, OEM,
accept FOB, CFR, CIF, EXW price,
T/T 30% as deposit and the balance before machine tools leave our factory.
normal products with standard configuration manufacturing time is 7-15 working days.
Applications:
Engraving and milling machine could be applied in mold, electrode and industry mold. It has strong superiority in
mold, shoe-making, trade mark, leather, watch-making, currency-making and small hardware industry, especially in
the high speed processing of metals.
Specifications:
| Specifications | Unit | DX6050 | DX6080 | DX1010 | DX1310 |
| Work table (L*W) | mm | 600*500 | 600*800 | 1000*1000 | 1300*1000 |
| Maximum load capacity of work table | kg | 250 | 300 | 1000 | 1500 |
| T-slot (No.* slot width *spacing) | mm | 5-14*100 | 3-14*175 | 5-18*180 | 5-18*180 |
| X axis travel | mm | 600 | 600 | 1000 | 1300 |
| Y axis travel | mm | 500 | 800 | 1000 | 1000 |
| Z axis travel | mm | 280 | 280 | 400 | 400 |
| Distance from work table surface to spindle end face | mm | 30-310 | 30-310 | 80-480 | 80-480 |
| Distance between two columns | mm | 660 | 660 | 1500 | 1800 |
| Spindle taper | ER | ER32 | ER32 | BT30(ER32 optional) | BT30(ER32 optional) |
| Spindle speed | rpm | 15,000 (2,4000 optional) | 15,000 (2,4000 optional) | 15,000 (2,4000 optional) | 15,000 (2,4000 optional) |
| Spindle power | kW | 5.5 | 5.5 | 8 | 8 |
| Spindle driving type | step | hidden style | hidden style | hidden style | hidden style |
| Cutting feed speed | m/min | 10 | 10 | 10 | 10 |
| X/Y/Z axis rapid feed speed | m/min | 15 | 15 | 15 | 15 |
| Position accuracy | mm | ±0.008/±0.008/±0.007 | ±0.008/±0.008/±0.007 | ±0.008/±0.008/±0.007 | ±0.008/±0.008/±0.007 |
| Reposition accuracy | mm | ±0.005/±0.005/±0.004 | ±0.005/±0.005/±0.004 | ±0.005/±0.005/±0.005 | ±0.005/±0.005/±0.005 |
| Dimensions (L*W*H) | mm | 2200*1800*2100 | 2500*1800*2100 | 3100*2500*2300 | 3300*3000*2400 |
| N.W. | T | 3.8 | 4 | 4.8 | 5.5 |
