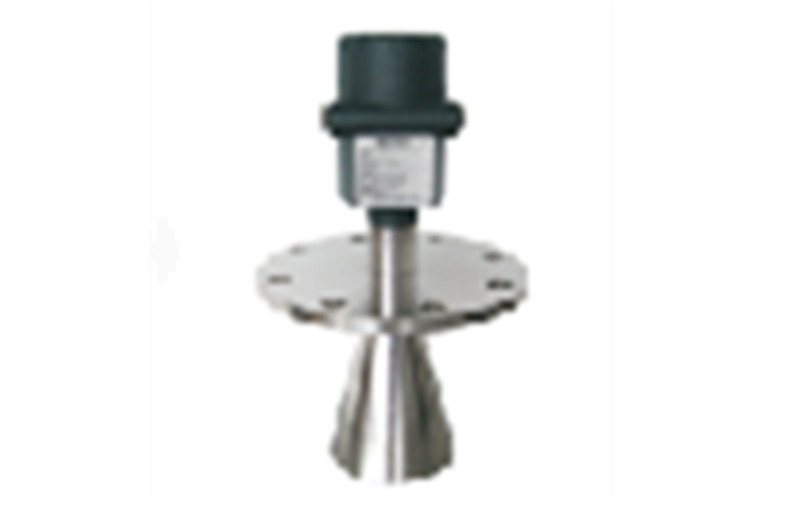

High performance radar liquid level transmitters with flange process connection

High performance radar liquid level transmitters with flange process connection

Quick Detail:

1.Used up to 6.8 GHZ transmission frequency

2.Almost not affected by corrosion, bubble
3. Maximum range:20m or 35m
4. Fetures: Integrated design, easy installation

Description:

Introduction


  High frequency radar level measurement instrument, the maximum measurement range of up to 70 meters. The antenna is further optimized, signal microprocessor model can be more high rate analysis, the instrument can be used for reactor, solid silo and some complex measurement conditions .

The principle

High frequency microwave pulse microwave pulse narrower, the downward transmission antennas, microwave reflected back after come into contact with the surface of measured medium, again by the antenna system receiving and sending them to the electronic circuit parts automatically converted into material level signal.(because microwave propagation speed, the electromagnetic wave to reach targets and the reflection back to the receiver to get back to the time is almost instantaneous)

1, scope of blind spots
2, set the range
3, high adjustment

Measurement datum is: thread bottom and flange sealing surface
Note: the use of radar thing location timing, it is important to ensure the highest level can't enter the measuring blind area .

The characteristics

1, radar level meter used up to 6.8 GHZ transmission frequency,
2, radar contact, no wear, no pollution,
3, small antenna size, ease of installation.
4, a shorter wavelength, the solid surface has a better reflection in tilt
5, the measuring blind area smaller, for a small tank measurement will obtain good effect
6, beam Angle is small, energy concentration, to enhance the ability of echo at the same time, and is helpful to avoid distractions
7, almost not affected by corrosion, bubble
8, almost not affected by water vapor in the atmosphere, temperature and pressure changes
9, serious dust will not affect the electromagnetic waves work environment
10, high signal-to-noise ratio, even in the case of volatility can obtain better performance
11, high frequency, it is the best choice for measuring solid medium and low dielectric constant

Believe you will be satisfied with our product and service if you place a trial order with us. Looking forward to establishing cooperation relationship with your esteemed company.

Applications:

1. Radar Level Meter can measure the distance, level and volume of liquid, sticky, solid.
2. Application in electric power,metallurgy, petroleum, shemical, food, medication, water, civic industry.

Specifications:

Competitive Advantage:

1.Competitive Price Offering
2.Special Time Delay Method
3.Stable And Precise Measurement In Very Short Time
