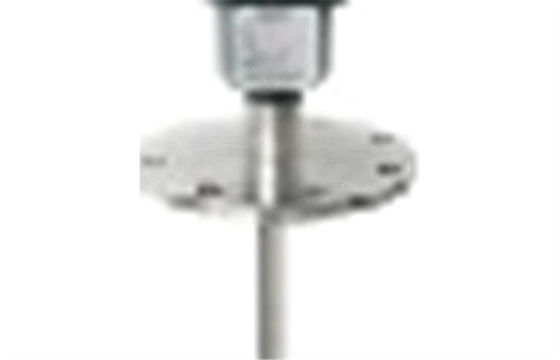

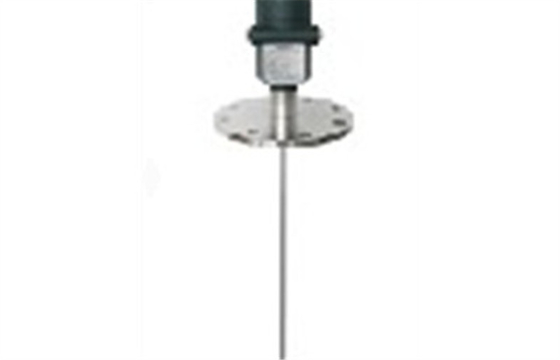

Intelligent radar level transmitter cable type with two wire 4 to 20 mA

Intelligent radar level transmitter cable type with two wire 4 to 20 mA

Quick Detail:

•  Explosion-proof certification: Exib IIC T6 Gb/ Exd IB IIC T6 Gb
•  Measuring range: 20m
•  Day line: the rod antenna (PTFE)
•  Frequency: 6.3G
•  Temperature: (-40 ~ 180) °C
•  The measurement accuracy of: ± 10mm
•  Process pressure: (-0.1 ~ 4) MPa
•  The signal output: (4 ~ 20) mA/HART
•  The scene display: four LCD
•  Power source: two line (DC24V) / four line(DC24V/AC220V)

Description:

          VT77 intelligent radar liquid level gauge is suitable for the measurement of working condition of blast furnace, thick roof tank and high install short pipe, the measuring range is 35 meters.

   Microwave emited by guided wave radar transmit through detecting element( steel rod or steel cable) and encounter the measured medium,owing to the bielectric constant change suddenly,the microwave occur changed shape that result in reflection,parts of pulse energy are reflected.transmission pulse and echo pulse time interval are proportional to measured medium.

  Micro wave pulses generated by the electronic units are emitted and received by the antenna system. The radar waves of the pulses travel at the velocity of light. The fling time is converted into level signal via the electronic units. A special time extending method can make sure the stable and accurate measurement within extremely short time.

Even under the more complicated working conditions with false echoes, the real level echoes can be recognized and identified by the latest microprocessing technology and debugging software

We anticipate intensive cooperation with yourself and your company to our mutual benefit, and hereby offer professional products, active and efficient support, and worry-free after-sales service.

  Pls contact us , if you have any questions .

Applications:

1. Radar Level Meter can measure the distance, level and volume of liquid, sticky, solid.
2. Application in electric power,metallurgy, petroleum, shemical, food, medication, water, civic industry.
3. They can work in high tempreture, high pressure, corrosion, dusty environment.

Specifications:

Competitive Advantage:

1  . Small antenna size, easy to install; Non-contact radar, no wear, no pollution.
2. Almost no corrosion, bubble effect; almost not affected by water vapor in the atmosphere, the temperature and pressure changes.
3. Serious dust environment on the high level meter work has little effect.
4. A shorter wavelength, the reflection of solid surface inclination is better.
5. Beam angle is small, the energy is concentrated, can enhance the ability of echo and to avoid interference.
6. The measuring range is smaller, for a measurement will yield good results.
7. High signal-to-noise ratio, the level fluctuation state can obtain better  performance.
8. High frequency, measurement of solid and low dielectric constant of the best choice.
