Industrial 5 way valve manifolds high pressure , NPT / BSP / ISO / DIN Standard
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | manifold valve,valves manifold |
||
|---|---|---|---|
Industrial 5 way valve manifolds high pressure , NPT / BSP / ISO / DIN Standard
Quick Detail:
1. Prime,High Quality
2. Standards:NPT,BSP,ISO,DIN
4. Certificates:ISO9001:2008, CE
5. Brand Name: FD-LOK
6. Place of Origin: Zhejiang, China (Mainland)
Description:

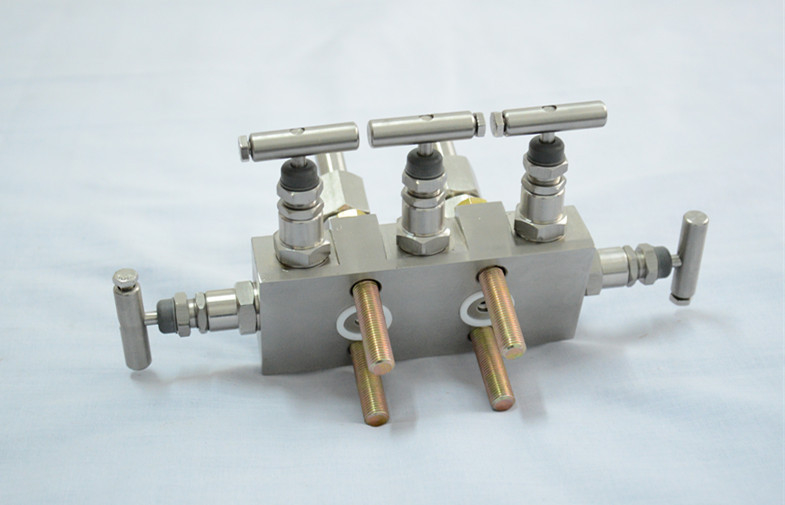

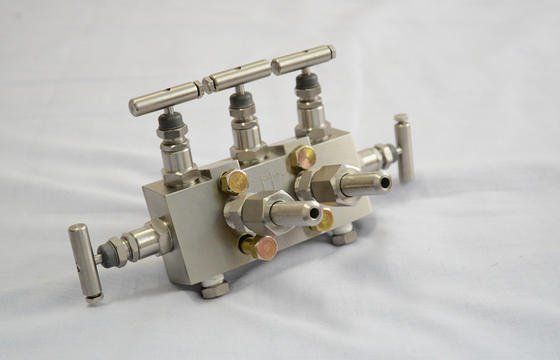

5 way valves manifold with high pressure used of Industrial
This Series of 5 valve manifolds combine valves into one unitised block to perform isolation, bleed and calibration of pressure transmitters, gauges and switches. Process, Instrument and Vent connections can be provided in a variety of sizes
| Working Temp | 0-250degree | Testing Pressure | 42(MPa) |
| Testing Pressure | 60(MPa) | Norminal Dia: | 4.7(mm) |
| Main Material | S.S 316 | Press Rating |
6000PSI |
Five valve manifolds are the most commonly used manifolds. They may be provided with test ports on the process sides and drain ports on the instrument side for drawing of the process and instrument lines respectively.
1. Press up to 6000psig (414bar) for standard stainless steel body
2. Temperature for PTFE packing from -65°F to 450°F (-54°C to 232°C)
Temperature for Grafoil packing from -65°F to 1200°F (-54°C to 649°C)
3. Packing below stem thread isolates the thread lubricant from the media
4. Back seating design protects the packing in fully open position
5. Non-rotating stem tip
6. 100% factory tested
7. Orifice:0.157" (4.0mm),CV:0.35
If you have any question PLease contact us. SKYPE :susan86861 .
Applications:
Five valve manifolds are the most commonly used manifolds. They may be provided with test ports on the process sides and drain ports on the instrument side for drawing of the process and instrument lines respectively.
Specifications:
|
1.Material: |
SS304, SS316,SS304L,SS316L,SS410,SS416.etc. |
|
2.Size: |
1/8"-2", as your request. |
|
3.Logo: |
Roke or as your request. |
|
4.MOQ: |
20pcs, open for your sincere. |
|
5.Sample Time/charge |
(1) 3-5days----For customized. (2) 1day----For existing. as your design
|
|
6.OEM Accepted: |
Yes |
|
7.Certification available: |
Yes |
|
8.Packing Details: |
(1) as your detail request. (2) normally carton size ---- 21*16*14CM/31*21*16CM/36*45*50CM; (3) normally wooden box size ---- 38*27*17CM; (4) normally 1piece/opp, 10-20pcs/carton
|
|
9.Production Capacity: |
30,000pcs Per month. |
|
10.Payment Term: |
(1) L/C,T/T,D/P,D/A,PAYPAL,WESTERN UNION,MONEY GRAM (2) We also can provide a monthly statement payment services.
|
Competitive Advantage:
- Professional: We are professional manufacturer of valves.Ensure our valves is quality controlled and reliable
- Quality Control: We have been engaged in valve design for many year and can guarantee best quality
- Experienced Sales Team: Our sales team is experienced, and they all know our product well.
- About Price: we provide very reasonable and competitive price for you
