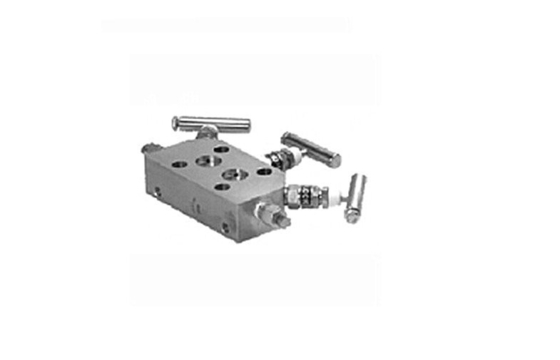

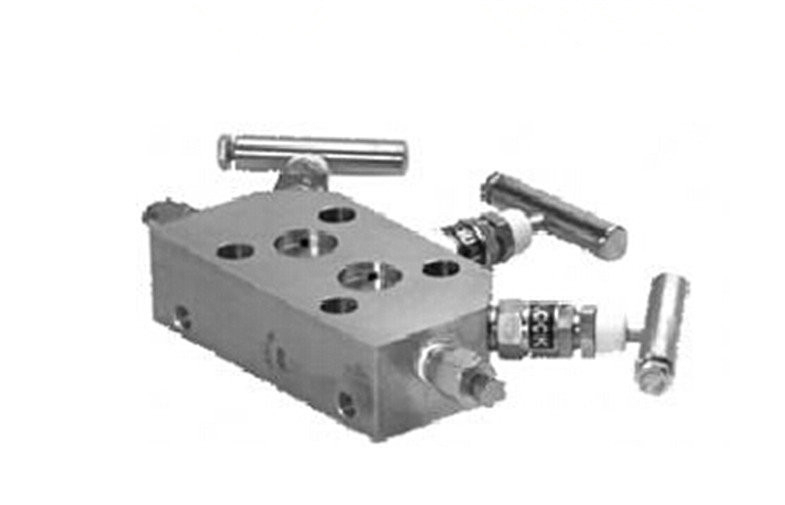

Rosemount Valve Manifolds / 305 Integral Manifold Compact lightweight

Rosemount Valve Manifolds / 305 Integral Manifold Compact lightweight

Quick Detail:

• Factory assembled, leak-tested, and calibrated
• Full breadth of offering including integral, conventional, and inline designs
• Integral design enables “flangeless” valve integration
• 2, 3, and 5 valve configurations
• Compact, lightweight design
• Easy in-process calibration
• Direct-mount capability

Description:

Factory assembled, leak-tested, and calibrated

 Rosemount manifolds and transmitters can be pre-assembled at the factory, resulting in an integrated assembly that is easier to order, install, operate, and maintain.

Full breadth of offering

The Rosemount manifold product offering has a variety of process connections, platforms, and styles for use in any application.

Integral manifold design enables “flangeless” valve integration

Rosemount integral manifolds are assembled directly to the transmitter sensor body, eliminating the need for the transmitter flange. This results in a compact design that has 50% fewer leak points, requires less hardware, and is lighter and more streamlined compared to a traditional transmitter / flange / manifold interface.

Rosemount quality

Rosemount manifolds are designed and built to the same exceptional quality standards as Rosemount transmitters. From basic to demanding applications, Rosemount manifolds provide industry leading reliability at an exceptional value.

Applications:

Rosemount integral manifolds are assembled directly to the transmitter sensor body, eliminating the need for the transmitter flange. This results in a compact design that has 50% fewer leak points, requires less hardware, and is lighter and more streamlined compared to a traditional transmitter / flange / manifold interface.

Specifications:

Competitive Advantage:

 • Assembles directly to transmitter, eliminating need for flange

 • 2, 3, and 5-valve configuration

 • Available in Coplanar ™ and traditional styles

• Compact, lightweight assembly

• Factory assembled, seal-tested and calibrated

• 50% fewer leak points than conventional transmitter / flange / manifold interface
