Water Analysis Instruments Rosemount 1066 Two - Wire Liquid Analytical Transmitter for pH / ORP , Resistivity


Quick Detail:

· Manufactured by Rosemount Analytical

· Large easy-to-read display

· HART® version 7 and FOUNDATION® fieldbus communication

· Intuitive menu screens

· SMART enabled

· Two 4-20mA current outputs

· Polycarbonate. NEMA 4X, IP66

· Temp Range: -4 to 149°F (-20 to 65°C)

· Quick start programming

· Accepts PG 13.5 or1/2" conduit fitting


Description:

The Rosemount Analytical 1066 Liquid Analytical Transmitter is a loop-powered analytical unit that serves industrial, commercial and municipal applications with the widest range of liquid measurement inputs available for a two-wire liquid transmitter.

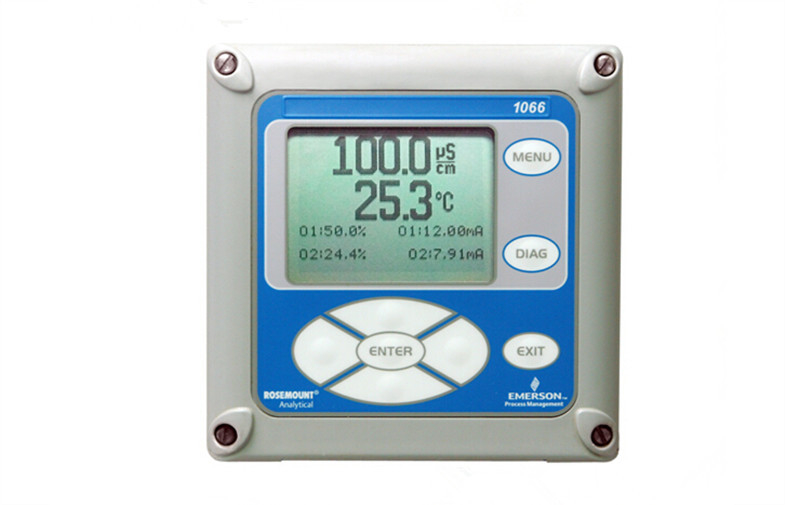

The 1066 SMART transmitter supports continuous measurement of one liquid analytical input. The design supports easy internal access and wiring connections. The large display gives excellent visibility for live measurements and displayed parameters. Conveniently, live process values are always displayed during programming and calibration routines.
The high-contrast LCD provides live measurement readouts in large digits and shows up to four additional variables or diagnostic parameters. The display parameters can be customized to meet user requirements.
Menu screens for calibrating and programming are simple and intuitive. Plain language prompts and help screens guide the user through the procedures. All menu screens are available in eight languages. Live process values are displayed during programming and calibration.
The transmitter continuously monitors itself and the sensor for problems. A display banner on the screen alerts Technicians to Fault and/or Warning conditions. The dedicated Diagnostic key is available for immediate access to specific fault and warning messages and troubleshooting help screens. Extensive diagnostic data is available for pH including Glass Impedance, Reference Impedance, Slope and Offset.


Applications:


· Controlling / Monitoring Chlorination of Cooling Water

· Sulfuric Acid Manufacturing

· Interface Detection and Level Control in Separators


Specifications:

Case: Polycarbonate. IP66 (CSA, FM), NEMA 4X (CSA)
Dimensions: Overall 155 x 155 x 131mm (6.10 x 6.10 x 5.15 in.). Cutout: 1/2 DIN 139mm x 139mm (5.45 x 5.45 in.)
Conduit openings: Six. Accepts PG13.5 or 1/2 in. conduit fittings
Display: Monochromatic graphic liquid crystal display. No backlight. 128 x 96 pixel display resolution.
Active display area: 58 x 78mm (2.3 x 3.0 in.). All fields of the main instrument display can be customized to meet user requirements.
Ambient temperature and humidity: -20 to 65°C (-4 to 149°F), RH 5 to 95% (non-condensing).
Storage Temperature: -20 to 70°C (-4 to 158°F)
RFI/EMI: EN-61326





Competitive Advantage:

VARIOUS MEASUREMENTS available with options for pH/ORP, Resistivity/Conductivity, % Concentration, Total Chlorine, Free Chlorine, Monochloramine, Dissolved Oxygen, and Ozone.
SMART-ENABLED pH capability eliminates field calibration of pH probes through automatic upload of calibration data and history. pH probe changes are literally plug and play using SMART pH sensors with VP cables.
TWO 4-20 mA ELECTRICALLY ISOLATED OUTPUTS are included in HART® units, giving the ability to transmit the live measurement value and the process temperature reported from the sensor.
INPUT DAMPENING is automatically enabled to suppress noisy process readings. Default input filtering averages readings for settings between one and four seconds.
HART® V7 DIGITAL COMMUNICATION is standard on Model 1066. Model 1066 HART units communicate with the Model 475 HART® hand-held communicator and HART monitoring applications such as AMS™ Intelligent Device Manager.
QUICK START PROGRAMMING screens appear the first time the unit is powered. The instrument prompts the user to configure the sensor loop in a few quick steps for immediate commissioning.
AUTO DIAGNOSTICS allows the transmitter continuously monitors itself and the sensor for problems. A display banner on the screen alerts Technicians to Fault and/or Warning conditions. The dedicated Diagnostic key is available for immediate access to specific fault and warning messages and troubleshooting help screens.
AUTO TEMPERATURE COMPENSATION automatically recognizes Pt100, Pt1000 or 22k NTC RTDs built into the sensor. Temperature compensation algorithms are available and selectable as needed to ensure accurate live measurements.
SMART WIRELESS THUM Adapter COMPATIBILITY enables wireless transmissions of process variables and diagnostics from hard to-reach locations. A 250 Ohm load resistor is integrated in-circuit on the main circuit board and a dedicated THUM terminal block is provided for easy wiring connection. When commissioned with the THUM Adapter, 1066 HART units will communicate with all other wireless devices on the Emerson wireless network.
