Water Analysis Instruments Rosemount Analytical 5081 Two - Wire Transmitter for measurement of pH / ORP , Conductivity

Quick Detail:

• · Manufactured by Rosemount Analytical
• · Measures pH, ORP, conductivity, resistivity, oxygen, chlorine, and ozone in a variety of process liquids
• · Compatible with most Rosemount Analytical sensors
• · Choice of HART or FOUNDATION Fieldbus communications protocol
• · Large, easy to read two-line display shows the process measurement and temperature
• · Simple menu structure
• · Robust NEMA 4X and NEMA 7B enclosure
• · Optional intrinsically safe design allows the transmitter to be used in hazardous environments (with appropriate safety barriers)
• · Non-volatile memory retains program settings and calibration data during power failures

Description:

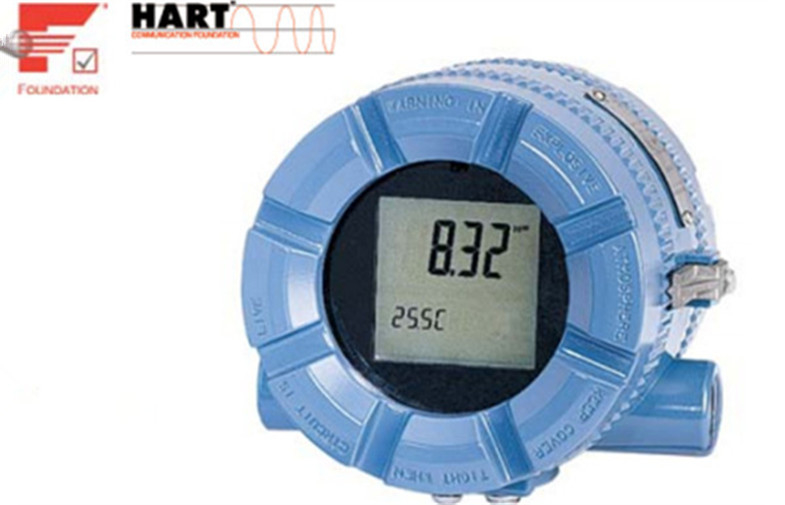

The Rosemount Analytical Model 5081 family of transmitters can be used to measure pH, ORP, conductivity (using either contacting or toroidal sensors), resistivity, oxygen, free chlorine, total chlorine, and ozone in a variety of process liquids. The 5081 is compatible with most Rosemount Analytical sensors. With a rugged, weatherproof, corrosion-resistant enclosure (NEMA 4X and IP65) of epoxy-painted aluminum, the 5081 meets NEMA 7B explosion-proof standards making it possible to locate the transmitter close to the sensor even in the harshest environments.

The Rosemount Analytical 5081 transmitter is simple to set-up and operate. A large, easy to read two-line display shows the process measurement and temperature. The 5081 includes the HART or Foundation Fieldbus digital communication protocols which allows users to set-up, configure, read process variables, and troubleshoot problems via PC or HART communicator. Additionally, an optional handheld infrared remote controller can also be used for programming and calibrating the transmitter. The remote controller works from as far away as six feet.

Models of the Rosemount Analytical Xmt family of transmitters:

· 5081–A:

Amperometric transmitter measures dissolved oxygen (ppm and ppb level), free chlorine, total chlorine, and ozone

· 5081–P:

pH/ORP transmitter

· 5081–C:

Contacting conductivity transmitter measures conductivity, resistivity, or custom curve variable

· 5081–T:

Toroidal conductivity transmitter measures conductivity, percent concentration, or custom curve variable

Applications:

· Digester Control in the Kraft Process

· Conductivity Measurement in White Liquor

· Common Conductivity Applications in the Pulp and Paper Industry

· Measurements of Chlorine Dioxide Bleaching Used in Pulp Mills

· pH Measurement in Deinking Mills (Secondary Fiber)

· Paper Mills Cuts Costs on Effluent by 60%

· Continuous Neutralization of Acid/Alkaline Industrial Waste

· API Separators

· Sour Water Stripping

· Conductivity Measurement in Oil Drilling

· Copper Flotation

· Titanium Manufacturing

· On-Line Electrode Impedance Measurement

· Sulfuric Acid Manufacturing

· pH Measurement in Corn Wet Milling

Specifications:

Housing: Cast aluminum with epoxy coating. NEMA 4X (IP65) and NEMA 7B. Neoprene O-ring cover seals. 160.5 mm x 175.3 mm x 161.3 mm (6.3 in. x 6.9 in. x 6.4 in.)

Dimensions: See drawing.

Conduit Openings: ¾-in. NPT

Ambient Temperature: -4 to 149°F (-20 to 65°C)

Storage Temperature: -22 to 176°F (-30 to 80°C)

Relative Humidity: 0 to 95% (non-condensing)

Display: Two-line LCD; first line shows process variable (pH, ORP, conductivity, % concentration, oxygen, ozone, or chlorine), second line shows process temperature and output current. For pH/chlorine combination, the second line can be toggled to show pH. Fault and warning messages, when triggered, alternate with temperature and output readings.

First line: 7 segment LCD, 0.8 in. (20 mm) high.
Second line: 7 segment LCD, 0.3 in. (7mm) high.

Display board can be rotated 90 degrees clockwise or counterclockwise.
During calibration and programming, messages and prompts appear in the second line.

Temperature resolution: 0.1°C

Competitive Advantage:

VARIOUS MEASUREMENTS including pH, ORP, Contacting or Toroidal Conductivity, Dissolved Oxygen (ppm & ppb), Free Chlorine, Total Chlorine, Ozone.

CHOICE OF COMMUNICATION PROTOCOL with HART® or FOUNDATION® fieldbus.

LARGE, EASY-TO-READ two-line display shows the process measurement and temperature.

ROBUST NEMA 4X ENCLOSURE and epoxy-painted aluminum makes this model weatherproof and corrosion-resistant (NEMA 4X and IP65.)

INTRINSICALLY SAFE DESIGN allows the transmitter to be used in hazardous environments (with appropriate safety barriers.)

NON-VOLATILE MEMORY retains program settings and calibration data during power failures.

HART® (model option -HT) and FOUNDATION® fieldbus (model option -FF) options are available. Digital communications allows access to AMS™ (Asset Management Solutions) which is used to set up and configure the transmitter, read process variables, and troubleshoot problems from a personal computer or host anywhere in the plant.

HANDHELD INFRARED REMOTE CONTROLLER or the HART® Model 275 communicator can also be used for programming and calibrating the transmitter. The remote controller works from as far away as six feet.
