Blue Protective Rubber Boot emerson usb hart 475 field communicator
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Weight: | App. 1.65 Lb (0.75 Kg) W/battery | Memory Internal Flash: | 32 MB |
|---|---|---|---|
| Outside: | Full-color Graphical Interface | System Card: | 1 GB Secure Digital Card |
| Microprocessor: | 80 MHz Hitachi SH3 | Battery Charger: | Min DIN 6-pin Jack |
| High Light: | hart 475 field communicator,475 hart communicator |
||

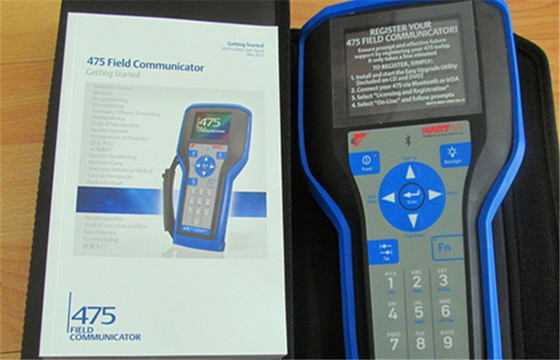

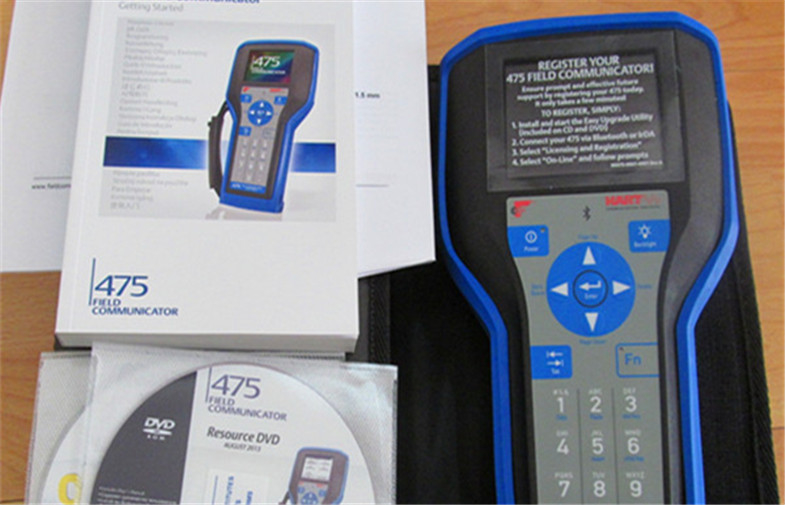

Blue Protective Rubber Boot emerson usb hart 475 field communicator
Quick Detail:
1. An innovative full-color graphical interface
2. Powerful diagnostics from devices in the field
3. Quick boot up and fast opera
Description:
Full-color graphical user interface supports graphs, charts, gauges, and pictures for quicker diagnosis
· Gain powerful device diagnostics in the field to enable troubleshooting
· Efficiently and consistently manage configurations through easy transfer between the communicator and your PC
· Long-lasting Lithium-Ion power module delivers days – not hours – of power
· Universal support for HART, WirelessHART, and FOUNDATION fieldbus devices
· ValveLink Mobile application delivers advanced field diagnostics for Fisher FIELDVUE digital valve controllers
· Localized language support for English, German, and Russian
· Easy Upgrade delivers the ability to keep your system software and device drivers updated through the web
· Bluetooth communication speeds transfer of information. See list of countries with Bluetooth approvals.
· Host System Interoperability gives you flexibility
See the Difference :
The touch screen display uses transflective technology, making it easy to read in both bright sunlight and normal lighting. To make sure all conditions are covered, a multi-level backlight is included, allowing bright, crisp display even in plant areas with dim light. The touch screen display and large physical navigation buttons provide for efficient use both on the bench and in the field.
The full color graphics capability is provided as standard with every 475 Field Communicator. It uses powerful EDDL technology to allow you to read data from field devices in a graphical manner. Charts, graphs, gauges, and product images are just a few of the ways in which important device data can be displayed using the 475 Field Communicator’s color LCD display.
The weight of the 475 Field Communicator is evenly distributed for comfortable one-handed operation in the field. It runs on Windows CE, a robust, real-time operating system. The 475 Field Communicator has plenty of memory to allow for future expansion. It has 32 MB of application memory and 1 GB of memory on its System Card.
Easy Upgrade Keeps Your Communicator Current .
The 475 Field Communicator is user upgradeable via the Internet. Avoid the time delays of sending your communicator to a service center for upgrades. With the Easy Upgrade option, you can download new device drivers, functionality, or licenses directly to your 475 Field Communicator. Keeping your 475 Field
Communicator updated is easy.New HART and FOUNDATION fieldbus devices, as well as functional updates to existing devices, are introduced continually by device vendors. Keeping up-to-date with the required Device Descriptions (DDs) for all the devices in your plant can be a real challenge.
Intrinsically Safe
The 475 Field Communicator meets the Intrinsic Safety requirements of the listed regulatory agencies and standards. All of the available Hazardous Locations approvals are provided in a single model option (see Ordering Information). CENELEC/ATEX Factory Mutual (FM) Canadian Standards Association (CSA) FISCO IECEx
Rugged and Reliable
It’s called “Field Communicator” or a reason. Some tasks just have to be performed at the device in the field. The 475 Field Communicator is designed for tough use in your plant or mill. Its large keys and physical navigation buttons allow for one-handed operation, even with your work gloves on. The rugged display is designed to take the knocks and shocks from normal use in the plant. The 475 Field Communicator’s Protective Rubber Boot provides added protection in the field and in your toolbox. Both the rubber boot and 475 housing are designed in accordance with Intrinsic Safety standards to limit the build up of static electrical energy. The 475 Field Communicator is designed, manufactured, and tested to very demanding specifications. It is ready to go wherever you need to go to get the job done.
PHYSICAL
Weight
Approximately 1.65 lb. (0.75kg) with battery
Display
1/4 VGA (240 by 320 pixels) color, 3.5 in. (8.9 cm) transflective display with touch screen
Anti-glare coated
Keypad
25 keys including 4 action keys, 12 alphanumeric keys, tab key, function key, backlight key, power key,
and 4 cursor-control (arrow) keys;membrane design with tactile feedback
ENVIRONMENTAL
Usage
10° C (14° F ) to +50° C (122° F )
0% to 95% RH (non-condensing) for 0° C (32° F) to +50° C (122° F )
Charge
10° C (32° F ) to +40° C (104° F )
Storage With Batteries
-20° C (-4° F ) to +55° C (131° F )
Storage Without Batteries
-20° C (-4° F ) to +60° C (140° F )
Enclosure Rating
IP51 (from front)
Shock
Tested to survive a 1-meter drop test onto concrete
EASY UPGRADE REQUIREMENTS
Usage
PC with Internet access
CD Rom drive
IrDA port (or adapter) or Bluetooth (or adapter)
SD Card Reader (required for some upgrades)
Windows XP (SP2 or SP3) or Windows Vista Business (SP1)
POWER SUPPLY / CHARGER
Battery
Rechargeable Lithium-Ion power module Battery Operating Time
20 hours – continuous use
40 hours – typical use
80 hours – standby mode
Applications:
- Create a quality segment
- Detect power supply problems
- Run valve diagnostics
- Locate incorrect terminations and faulty devices without dragging a laptop into the plant.
Specifications:
|
merson Process Management 475 Field Communicator Specifications |
||
|
Microprocessor |
80 MHz Hitachi SH3 |
|
|
Memory internal flash |
32 MB |
|
|
System card |
1 GB secure digital card |
|
|
RAM |
32 MB |
|
|
Weight |
App. 1.65 lb (0.75 kg) w/battery |
|
|
Display |
1/4 VGA (240 x 320 px) color, 3.5 in (8,9 cm) transreflective display w/touchscreen, anti-glare coat |
|
|
Keypad |
25 keys including 4 action keys, 12 alphanumeric keys, tab key, function key, backlight key, power key, and 4 cursor-control (arrow) keys; membrane design with tactile feedback |
|
|
Battery |
Rechargeable lithium-ion power module |
|
|
Battery operating time |
20 hours - continuous use |
|
|

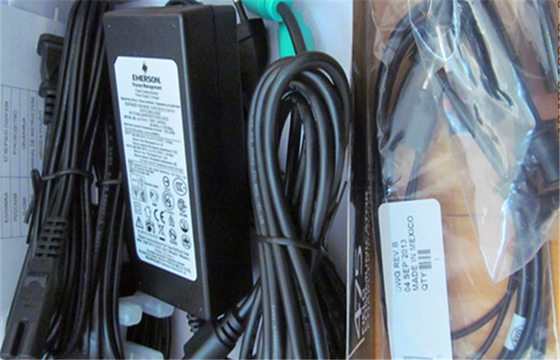

Battery charger options |
Input voltage 100-240 VAC, 50-60 Hz |
|
|
Battery charger |
Min DIN 6-pin jack |
|
|
HART and Fieldbus |
Three 4mm banana plugs (one common to HART and Foundation fieldbus) |
|
|
IrDA Port |
IrDA (Infrared Data Access) port supporting up to 115 Kbps |
|
|
Bluetooth |
Up to 32.8 ft (10 m) communication distance |
|
Competitive Advantage:
- Long-lasting Lithium-Ion power module for days – not hours – of battery life
- Universal support for HART, WirelessHART, and FOUNDATION fieldbus devices
- Localized language versions of user interface in English, German, Russian, French, Portuguese, Japanese, and Chinese
