Intelligent Emerson 475 Field communicator has bluetooth / Easy-upgrade option
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Weight: | App. 1.65 Lb (0.75 Kg) W/battery | Memory Internal Flash: | 32 MB |
|---|---|---|---|
| Outside: | Full-color Graphical Interface | System Card: | 1 GB Secure Digital Card |
| Microprocessor: | 80 MHz Hitachi SH3 | Battery Charger: | Min DIN 6-pin Jack |
| High Light: | hart 475 field communicator,475 hart communicator |
||

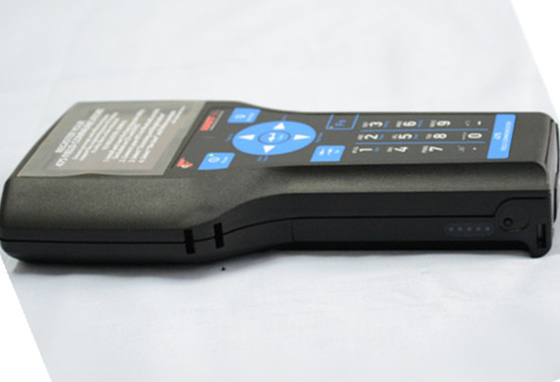

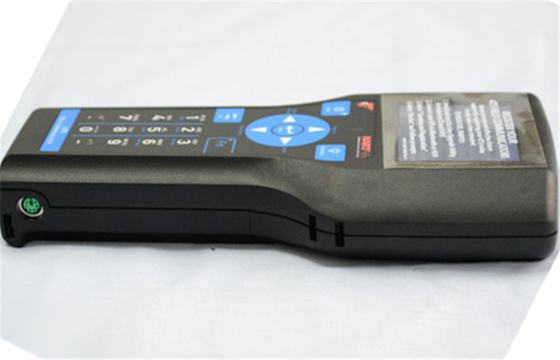

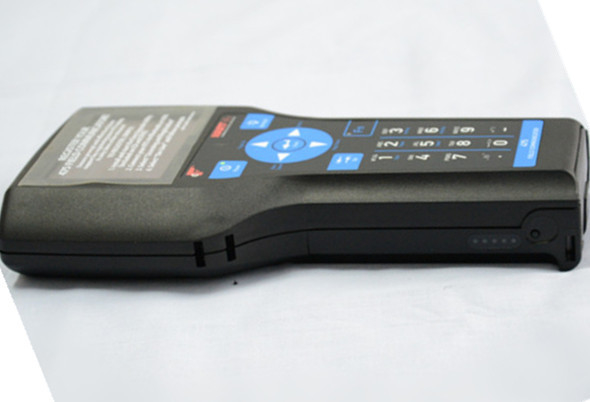

Intelligent Emerson 475 Field communicator has bluetooth / Easy-upgrade option
Quick Detail:
- Universal – HART and FOUNDATION fieldbus devices
- User upgradeable
- Intrinsically safe
- Rugged and reliable
- Interfaces with AMS Suite: Intelligent Device Manager
- Graphical interface
- 80 MHz Hitachi SH3 microprocessor
- Bluetooth communication: 32.8 ft. (10m) max communication distance
- 32 MB memory Internal Flash / RAM
- Battery: rechargeable Lithium-Ion power module
- 20 hours; continuous use
- 40 hours; typical use
- 80 hours; standby mode
- 25 button key pad
- 1/4 VGA (240 by 320 pixels) color, 3.5" transflective, touchscreen display
Description:
Rosemount 475 Field Communicator features field diagnostics, Bluetooth, Long-lasting Lithium-Ion battery.
Important note: It is strongly advised to proceed communication with our technical unit for selection of specifications on 475 Field Communicator in terms of communication protocol, FM & EX certification, bluetooth, Easy-upgrade option, etc.
•Full-color graphical user interface
•Powerful field diagnostics
•Bluetooth® communication
•Long-lasting Lithium-Ion power module
•Universal support for HART® and FOUNDATIONTM fieldbus devices
The 475 Field Communicator builds on the industry-leading technology of the 375 Field Communicator while adding innovative new capabilities including color display, Bluetooth communication, and advanced field diagnostics.What you get is the most powerful handheld available – universal, user upgradeable, intrinsically safe, rugged and reliable. Only the 475 Field Communicator can deliver all this in a single handheld communicator.
The 475 Field Communicator is designed to simplify your work in the field. The intuitive full color user interface allows you to leverage the same practices for both HART and FOUNDATION fieldbus devices. It includes a larger touch screen than PDAs or Pocket PCs, supports HART versions 5, 6, and 7 (including Wireless HART™) devices, and allows you to upgrade your 475 Field Communicator onsite using the Internet.
See the Difference :
The touch screen display uses transflective technology, making it easy to read in both bright sunlight and normal lighting. To make sure all conditions are covered, a multi-level backlight is included, allowing bright, crisp display even in plant areas with dim light. The touch screen display and large physical navigation buttons provide for efficient use both on the bench and in the field.
The full color graphics capability is provided as standard with every 475 Field Communicator. It uses powerful EDDL technology to allow you to read data from field devices in a graphical manner. Charts, graphs, gauges, and product images are just a few of the ways in which important device data can be displayed using the 475 Field Communicator’s color LCD display.
The weight of the 475 Field Communicator is evenly distributed for comfortable one-handed operation in the field. It runs on Windows CE, a robust, real-time operating system. The 475 Field Communicator has plenty of memory to allow for future expansion. It has 32 MB of application memory and 1 GB of memory on its System Card.
Easy Upgrade Keeps Your Communicator Current .
The 475 Field Communicator is user upgradeable via the Internet. Avoid the time delays of sending your communicator to a service center for upgrades. With the Easy Upgrade option, you can download new device drivers, functionality, or licenses directly to your 475 Field Communicator. Keeping your 475 Field
Communicator updated is easy.New HART and FOUNDATION fieldbus devices, as well as functional updates to existing devices, are introduced continually by device vendors. Keeping up-to-date with the required Device Descriptions (DDs) for all the devices in your plant can be a real challenge.
Intrinsically Safe
The 475 Field Communicator meets the Intrinsic Safety requirements of the listed regulatory agencies and standards. All of the available Hazardous Locations approvals are provided in a single model option (see Ordering Information). CENELEC/ATEX Factory Mutual (FM) Canadian Standards Association (CSA) FISCO IECEx
Rugged and Reliable
It’s called “Field Communicator” or a reason. Some tasks just have to be performed at the device in the field. The 475 Field Communicator is designed for tough use in your plant or mill. Its large keys and physical navigation buttons allow for one-handed operation, even with your work gloves on. The rugged display is designed to take the knocks and shocks from normal use in the plant. The 475 Field Communicator’s Protective Rubber Boot provides added protection in the field and in your toolbox. Both the rubber boot and 475 housing are designed in accordance with Intrinsic Safety standards to limit the build up of static electrical energy. The 475 Field Communicator is designed, manufactured, and tested to very demanding specifications. It is ready to go wherever you need to go to get the job done.
SPECIFICATIONS
PROCESSOR AND MEMORY
Microprocessor
80 MHz Hitachi® SH3
Memory Internal Flash: 32 MB
System Card: 1 GB secure digital card
RAM: 32 MB
PHYSICAL
Weight
Approximately 1.65 lb. (0.75kg) with battery
Display
1/4 VGA (240 by 320 pixels) color, 3.5 in. (8.9 cm) transflective display with touch screen
Anti-glare coated
Keypad
25 keys including 4 action keys, 12 alphanumeric keys, tab key, function key, backlight key, power key,
and 4 cursor-control (arrow) keys;membrane design with tactile feedback
ENVIRONMENTAL
Usage
10° C (14° F ) to +50° C (122° F )
0% to 95% RH (non-condensing) for 0° C (32° F) to +50° C (122° F )
Charge
10° C (32° F ) to +40° C (104° F )
Storage With Batteries
-20° C (-4° F ) to +55° C (131° F )
Storage Without Batteries
-20° C (-4° F ) to +60° C (140° F )
Enclosure Rating
IP51 (from front)
Shock
Tested to survive a 1-meter drop test onto concrete
EASY UPGRADE REQUIREMENTS
Usage
PC with Internet access
CD Rom drive
IrDA port (or adapter) or Bluetooth (or adapter)
SD Card Reader (required for some upgrades)
Windows XP (SP2 or SP3) or Windows Vista Business (SP1)
POWER SUPPLY / CHARGER
Battery
Rechargeable Lithium-Ion power module Battery Operating Time
20 hours – continuous use
40 hours – typical use
80 hours – standby mode
Applications:
- Configure field devices or perform diagnostics for effective troubleshooting in the field.
- Create a quality segment
- Detect power supply problems
- Run valve diagnostics
- Locate incorrect terminations and faulty devices without dragging a laptop into the plant.
Specifications:
| Model | Product Description |
| 475 | Field Communicator (1) |
| Code | Communication Protocol |
| H | HART |
| F | HART and FOUNDATION fieldbus (2) |
| Code | Battery Type |
| P | Rechargeable Lithium-Ion Power Module |
| Code | Power Supply/Charger |
| 1 | Power Supply and Charger NiMH/Li-Ion (US/UK/EU connection types included) (3) |
| 9 | Not included (4) |
| Code | Language |
| E | English |
| D | German |
| J | Japanese |
| R | Russian |
| Code | Product Certifications |
| KL | ATEX, FM, CSA and IECEx Intrinsically Safe (includes FISCO as applicable) |
| NA | No Approval |
| Code | Easy Upgrade |
| U | Easy Upgrade (3 year) Option (5) |
| 9 | Not Included |
| Code | Standard Options |
| GM | Graphics (included at No Charge) (6) |
| Device Configuration Management (included at No Charge) (7) | |
| Code | Bluetooth |
| T | Bluetooth function |
| 9 | No Bluetooth Communication (8) |
| Code | Options |
| A | Spare Rechargeable Lithium-Ion Power Module (9) |
| S | Protective Rubber Boot with Stand |
Competitive Advantage:
Made in Germany
The 475 Field Communicator supports all HART®, FOUNDATION™ fieldbus, and Wireless HART™ devices and allows you to upgrade your HART 475 Field Communicator onsite using the Internet.
