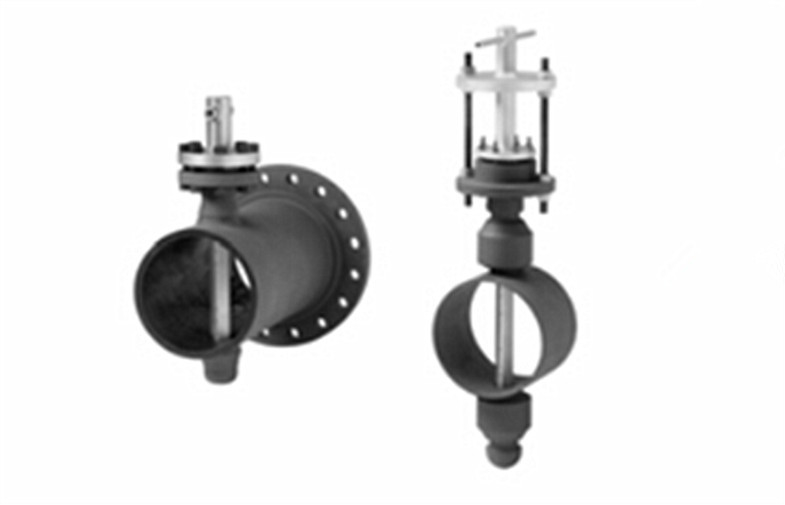

Annubar Industry leading integrated DP Flow meter Rosemount 585
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | rosemount annubar flow meter,Annubar Flow meter |
||
|---|---|---|---|
Rosemount 585 Annubar Primary Element utilizes a solid sensor construction for severe service applications
Quick Detail:
· Industry leading integrated DP Flowmeters
· Energy Savings gained through minimal permanent pressure loss
· Real-time mass and energy flow measurements available with integral temperature design
· Flo-tap design of the 485 and 585 allow installation without system shutdown
Description:
Rosemount 585 Annubar Primary Element utilizes a solid sensor construction that
offers capabilities for severe service applications.
• Main Steam Line mounting hardware available
• Symmetrical sensor design allows bi-directional flow measurement
• Available in 4 to 96-in. (50 - 2400 mm) line sizes
Applications:
Rosemount 585 Annubar Primary Element utilizes a solid sensor construction that
offers capabilities for severe service applications
Specifications:
| Primary Element |
] |
] |
| Accuracy | ±0.75% of flow rate | ±1.50% of flow rate |
| Repeatability | ±0.1% | ±0.1% |
| Service | Liquid, Gas, Steam | Liquid, Gas, Steam |
| Temperature Limits |
Direct mount: Remote mount:
|
Direct mount: Remote mount:
|
| Pressure Limits | Direct mount: up to 600# ANSI (1440 psig at 100ºF (99 bar at 38ºC)) Remote mount: up to 2500# ANSI (6000 psig at 100ºF (416 bar at 38ºC)) |
Flanged with Opposite Side Support SST, Alloy C-276, Alloy 800H : Up to 2500# ANSI Flange Kynar: Up to 150# ANSI Flange Main Steam Annubar 3788 psig at 1100°F (261 bar at 593°C) with Chrome-Moly F-91 mounting Gear-Drive Flo-tap SST: Up to 600# ANSI Flange Maximum insertion: 1440 psig |
| Line Sizes | • Sensor Size 1: 2-in. to 8-in. (50 to 200 mm) • Sensor Size 2: 6-in. to 96-in. (150 to 2400 mm) • Sensor Size 3: 12-in. to 96-in. (300 to 2400 mm) |
• Sensor Size 11: 4-in. to 24-in. (102 to 610 mm) • Sensor Size 22: 6-in. to 36-in. (152 to 914 mm) • Sensor Size 44: 10-in. to 96-in. (254 to 2438 mm) |
| Flow Turndown | 10:1 or better | 10:1 or better |
Competitive Advantage:
1. SOLID SENSOR CONSTRUCTION
The solid bar stock design of the 585 Annubar sensor along with the variety of sensor materials available enables maximum strength.
2. SYMMETRICAL SENSOR DESIGN
The Rosemount 585 eliminates the need for two flowmeter assemblies to measure bi-directional flow. Options for dual direct mount transmitters make installation simple and cost effective.
