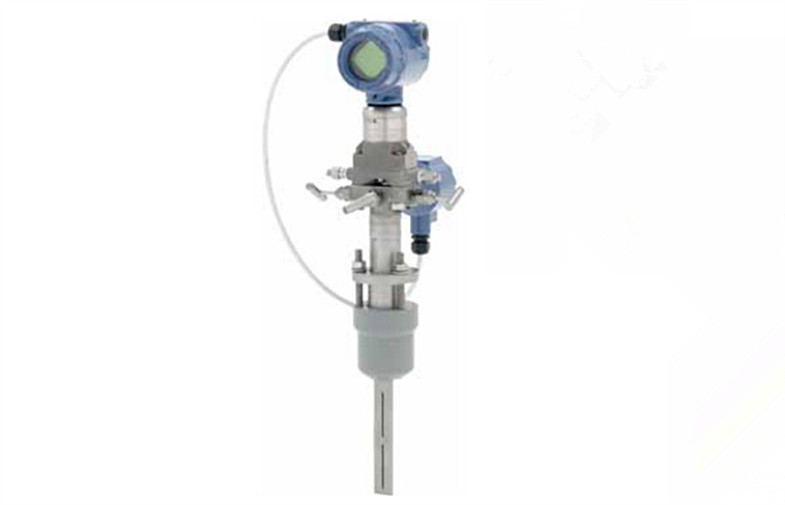

professional high performance Annubar Flowmeter Rosemount 3051SFA
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | rosemount annubar flow meter,annubar flow meters |
||
|---|---|---|---|
Rosemount 3051SFA Annubar Flowmeter reduce permanent pressure loss by creating less blockage in the pipe
Quick Detail:
Annubar flowmeters reduce permanent pressure loss by creating less blockage in the pipe
Ideal for large line size installations when cost, size and weight of the flowmeter are concerns
Annubar offers best-in-class Flowmeter performance, flexibility, reliability and more advantages that save time and money.
Description:
Better measurement begins by selecting the best flow technology for each application. Annubar® technology has been specified for over 35 years in applications requiring performance, flexibility, reliability and lower total cost of ownership. The innovative technology of the Annubar sensors offers more advantages that save time and money.
Features of the Rosemount Annubar Flowmeter include:
· Industry leading integrated DP Flowmeters
· Energy Savings gained through minimal permanent pressure loss
· Real-time mass and energy flow measurements available with integral temperature design
· Flo-tap design of the 485 and 585 allow installation without system shutdown
Applications:
Pak-Lok assembly
This popular, easy-to-use mechanism utilizes the latest patented compression design to firmly secure the Annubar sensor to the opposite wall of the pipe. This assembly can be used with the 485.
Flanged assembly
The rugged structural requirements of high-pressure applications are met with the flanged assembly. This assembly can be used with the 485 and 585.
Flange-Lok assembly
Combines the Pak-Lok compression sealing mechanism with a mounting flange for convenient installation with a sing pipe penetration. This assembly can be used with the 485.
Flo-Tap assembly
The Flo-Tap Annubar assembly can be hot-tapped without interrupting process flow. There is no need to shut down your process to install a flowmeter. This assembly can be used with the 485 and 585.
Compact assembly
Combines the Annubar sensor with 405 Compact wafer for simple installation between raised-face flanges.
Specifications:
| Fully Integrated Flowmeter | | Rosemount 3051SFA Measurement Type D |
| Accuracy | •Mass flow up to 0.8% of mass flow rate, 14:1 turndown •Classic MV up to ±0.85 % of flow rate, 8:1 flow turndown | •Volumetric flow up to 0.8% of volumetric flow rate, 14:1 turndown •Classic MV up to ±0.85% of volumetric flow rate, 8:1 turndown |
| Repeatability | ± 0.1 % | ± 0.1 % |
| Output | •4-20mA signal based on HART® Communication •WirelessHART with Smart Wireless THUM adapter | •4-20mA signal based on HART® Communication •WirelessHART •FOUNDATION™ fieldbus |
| Long Term Stability | Up to 15-year stability | Up to 15-year stability |
| Warranty | Up to 15-year limited warranty | Up to 15-year limited warranty |
| Diagnostics | •User-writable process temperature sensor limits •Sensor Temperature as an output •Instant Flow Verification | Advanced HART Diagnostic Suite |
| Line Size | 2-in. to 8-in. (50 to 200 mm) – Sensor Size 1 6-in. to 36-in. (150 to 900 mm) – Sensor Size 2 12-in. to 72-in. (300 to 1800 mm) – Sensor Size 3 | 2-in. to 8-in. (50 to 200 mm) – Sensor Size 1 6-in. to 36-in. (150 to 900 mm) – Sensor Size 2 12-in. to 72-in. (300 to 1800 mm) – Sensor Size 3 |
Competitive Advantage:
· Industry leading integrated DP Flowmeters
· Energy Savings gained through minimal permanent pressure loss
· Real-time mass and energy flow measurements available with integral temperature design
· Flo-tap design allow installation without system shutdown.
