radar level transmitter with stainless steel cable

radar level transmitter with stainless steel cable

Quick Detail:

• -40ºC to 80ºC operating temperature
• 100% stainless steel 316L isolation.
• Wide variety of pressure ranges and electrical outputs
• Low cost and compact package
• stainless steel with rigid and robust construction.
• The protection cap with a small hole
• The exquisite sealing technology
• a waterproof cable with vent hose
• 0.25%,0.50% accuracy

Description:

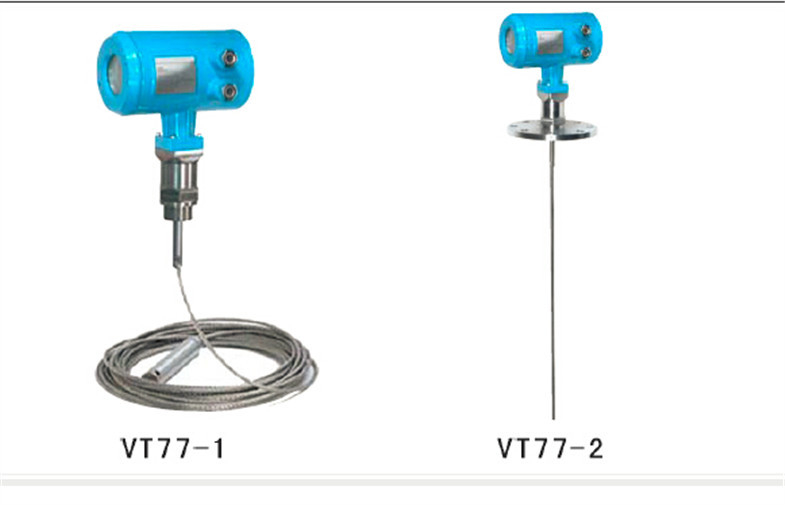

VT77 series Guided wave radar is measuring instrument based on the principle of time travel,

the radar waves travel at the speed of light, the running time can be through the electronic components

are converted into level signals. Probe a high frequency pulse and along the cable or rod probe

propagation, when pulse meets the material surface is reflected back by the receiver instrument within

 the receiving and the distance signal into a signal.

Input

The reflected impulse signal is transmitted along the proble to the circuit of the gauge . The microwave processor processes this signal , and recognizes the wave echo of the microwave impulse from the material surface . The correct wave echo signal is recognized by the intelligent softwave , the distance from the material surface D is proportional to the flying time of the impulse T:

D=C×T/2

C is the velocity of light .

As the distance of the empty tank E is known , so

L=E-D

Output

By inputting empty tank height E(zero point) ,full tank height (full measuring range) and some application parameter are set .With the application parameters , the transmitter will automatically adapt itself to the measuring enviroment, corresponding 4-20mA output .

Measuring Distance

The following table indicates the relations between mediums and measuring distance

Applications:

Used for grain bin,oil/ fuel/water/powder tank, liquid

Specifications:

Competitive Advantage:

1.Competitive Price Offering
2.Special Time Delay Method
3.Stable And Precise Measurement In Very Short Time
