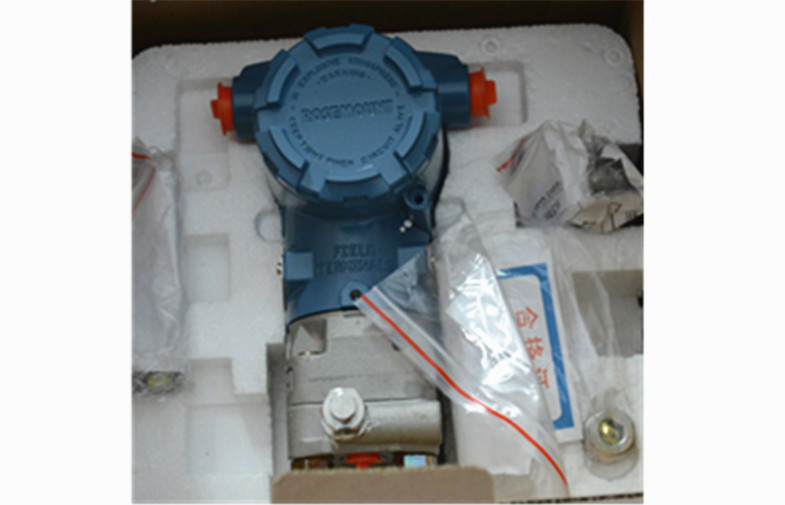

Rosemount 3051CG Gauge Pressure Transmitter with Coplanar platform

Rosemount 3051CG Gauge Pressure Transmitter with Coplanar platform

Quick Detail:

Industry’s best total performance, a flexible Coplanar platform, and installed
five-year stability has made Rosemount 3051 the standard for Differential,
Gage, and Absolute pressure measurement. Select from the following
capabilities for seamless integration:
• Performance up to 0.04% accuracy
• Manifolds, Primary Elements and Seal Solutions
• 4-20 mA HART, 1-5 Vdc HART low power, FOUNDATIONfieldbus, and
Profibus PA protocols
• Calibrated spans/ranges from 0.1 inH2O to 4000 psi
(0,25 mbar to 276 bar)
• 316 SST, Alloy C-276, Alloy 400, Tantalum, Gold-Plated Alloy 400 or
316L SST wetted materials

Description:

The Rosemount 3051C smart pressure transmitter is capable of differential, gage, or absolute pressure measurement. Utilizing advanced capacitance sensor technology (piezoresistive sensors for absolute pressure models) the Rosemount 3051C smart pressure transmitter is accurate up to ±0.04% resulting in total operating performance, the true measure of "real-world" transmitter performance, of ±0.15%.

Additionally, the Rosemount 3051C smart pressure transmitter has an installed five-year stability of ±0.125% demonstrating the ability to maintain performance over a five year period under the most demanding process conditions. The high accuracy and stability of the 3051C equates to reduced variability, lower operating and maintenance costs, and improved plant safety.

The Rosemount 3051C smart pressure transmitter can utilize either traditional flanges or Rosemount's versatile Coplanar ™ platform designed to enable the best process connection for pressure, flow, and level applications. Right out of the box, the solution arrives factory calibrated, pressure-tested, and ready to install. The Rosemount 3051C smart pressure transmitter is also available in a number of materials and a wide range of hazardous area certifications are available.

Output options available to the Rosemount 3051C smart pressure transmitter include 4-20mA or 1-5VDC with HART protocol, Profibus, or FOUNDATION fieldbus. The Rosemount 3051C smart pressure transmitter offers so many options that it can be configured for any application.

Applications:

The Rosemount 3051CG smart pressure transmitter combines advanced technology with the versatile Coplanar ™ process connection to create a new standard in pressure measurement technology. Even under the most demanding conditions, the performance specifications of the 3051C provide unmatched long-term stability and reliability.

Specifications:

Competitive Advantage:

• Manufactured by Rosemount
• Performance up to 0.04% accuracy
• Total performance of ±0.15%
• Installed five-year stability of 0.125%
• Unmatched Dynamic Performance
• Coplanar platform enables integrated pressure, flow, and level solutions
• Optional PlantWeb Functionality to increase plant productivity
• Responds up to eight times faster than the typical pressure transmitter
