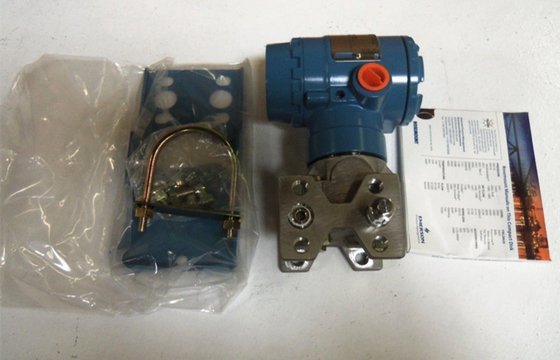

Accuracy 0.075% Rosemount 2051CG Gauge Pressure Transmitter 4-20 mA output
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Type: | Coplanar Pressure Transmitter | Measurement Type: | Gage |
|---|---|---|---|
| Output: | Hart, FF, PROFIBUS PA Protocol | Process Flange Type: | Coplanar |
| Flange Material: | SST | Isolating Diaphragm: | 316L SST |
| High Light: | pressure transmitter rosemount,rosemount gauge pressure transmitter |
||
Accuracy 0.075% Rosemount 2051CG Gauge Pressure Transmitter 4-20 mA output
Quick Detail:
· Manufactured by Rosemount
· Calibrated spans from 0.3 to 10000 psi
· Up 0.075% accuracy
· Total performance of ±0.15%
· Installed five-year stability of 0.125%
· Unmatched Dynamic Performance
· Optional PlantWeb Functionality to increase plant productivity
· Responds up to eight times faster than the typical pressure transmitter
Description:
1. Product decription
The Rosemount 2051CG pressure transmitter is one member of the pressure transmitter series of
Rosemount company,prividing a reliable differential, gage, and absolute pressure measurement with a
variety of output protocols, materials and process connections.
2. Product feature
Performance of 0.075% accuracy, optional 0.065%
Two-year stability of 0.10%, optional five-year stability
Coplanar platform enables integrated manifold, primary element and remote seal solutions
Calibrated spans/ranges from 0.5 inH2O to 2000 psi(1,2 mbar to 138 bar)316L SST, Alloy C-276 and
tantalum process wetted parts
Recommended replacement for the Rosemount 1151
Applications:
The Rosemount 2051 family of pressure transmitters empowers you to measure pressure with confidence.
The 2051 provides a reliable differential, gage, and absolute pressure measurement with a variety of output protocols, materials and process connections. Meet your pressure, level, and flow application needs with its flexible Coplanar™ platform so that you can lower project and ongoing maintenance costs.
Specifications:
| output: | 4-20 mA with digital signal based on HART Protocol; Low Power, 1-5 V dc with digital signal based on HART Protocol; Low power, 0.8-3.2 V dc with digital signal based on HART Protocol, optional |
| range: | 0-0.3 to 0-10,000 psi |
| accuracy: | 1-5: +/-0.075% of span |
| power: | 4-20 mA: 10.5-55 V dc with no load Low Power: 6-12 V dc with no load |
| materials: | Sensor Wetted Parts: SST, Hastelloy, Monel, Tantalum, Gold Plated SS, Gold Plated Monel |
| fluid: | Sensor fill fluid: Silicone, Inert (Halocarbon) |
| mounting: | Coplanar and Traditional flanges and Adapters: Cadmium and Nickel-plated CS, 316 SST |
Competitive Advantage:
- Manufactured by Rosemount
- Reference Accuracy of 0.075%, optional 0.065%
- Two-year stability of 0.10%, optional five-year stability
- Rangeability of 100:1
- Calibrated spans/ranges from 0.5 inH2O to 2000 psi (1,2 mbar to 276 bar)
- Protocols available include 4-20 mA HART, FOUNDATION fieldbus, 1-5 Vdc HART Low Power
- 316L SST and Hastelloy C-276 process wetted parts
- Coplanar platform enables integration of primary elements, manifolds, and diaphragm seal solutions
