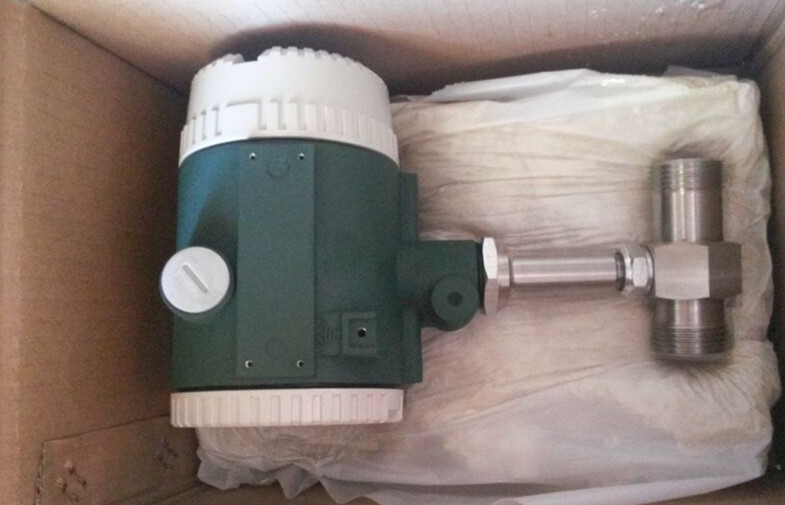

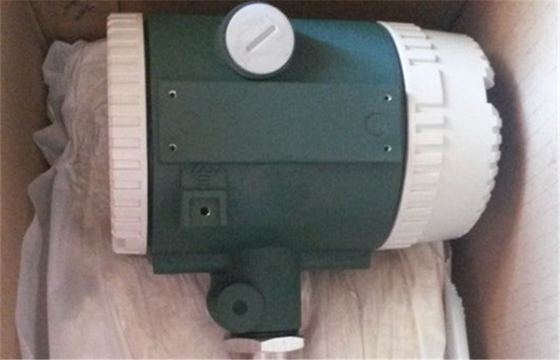

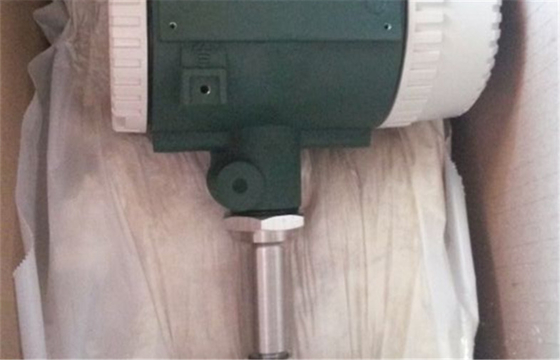

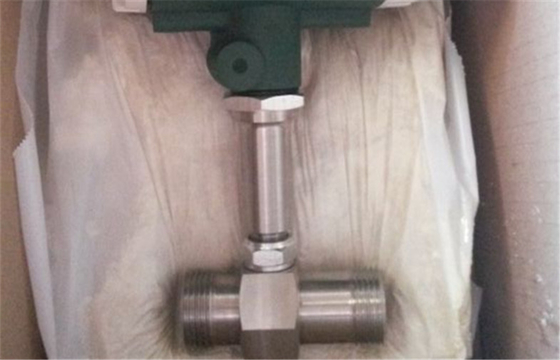

high Accuracy Fuel oil Turbine Flow Meter with 4 - 20 ma 5~24VDC

Fuel oil Turbine Flow Meter with 4 - 20 ma

Quick Detail:

1. Hi-Accuracy 1.0%,0.5%,0.2% optional.

2. Wearable Tungsten carbonized shaft and bearing,be the same with medium of sully.

3. Erode-resistant be the same with sea water,ammonia,saline,etc.

4. Bi-direction Pulse,4~20mADC,total and rate display in the field.

5. Power supply 5~24VDC

6. Explode-proof Ex d11 BT4/Ex ib 1

7. spectrum 2,4,6,10,15,25,40,50,80,100,150,200,300mm

8. Structure : simply firm and convenient to dismount

Description:

Turbine flow sensor based on the principle of moment balance belongs to the speed type flow meter. Sensor has the advantages of simple structure light high precision good reproducibility responsive installation and maintenance convenient use etc are widely used in petroleum chemical industry metallurgy water supply paper making and other industries is an ideal instrument to flow metering and energy saving.

In-line high-performance turbine flow meter transducer adapts to measure the liquid rate and total flowrate of low viscosity. It can be widely used in the fields of Petrol, Chemical industry, Metallurgy, Scientific research for measuring or control. Several output and display methods can be selected.

We have senior engineers, with more than 10 years experience on the industry technology, and devote themselves to the strict QC and the thoughtful services, besides, we can talk about the client's special demand efficiently to ensure their satisfaction.

We anticipate intensive cooperation with yourself and your company to our mutual benefit, and hereby offer professional products, active and efficient support, and worry-free after-sales service.

If you have any inquiries, contact us freely.

Parts Materials List:

1.Nominal diameter----DN300mm~DN3000mm

2.Measurement pipe’s material---carbon steel,316 stainless steel

3.Transducer’s material---ABS

4.Electrode’s material--- stainless steel molybdenum, Hastelloy B, Hastelloy C, titanium

5.Accuracy--- -1.5---+1.5

6.Medium temperature--- -10°C---+80°C

7.Environment temperature--- -25°C---60°C

8.Relative humidity---5%---95%

9.Atmospheric pressure--86—106KPa

11.Shell protection grade---transducer IP65 or IP68

12.Connection type--flange connection

13.Explosion-proof sign--ExmIIT4,ExmdIIBT4

We have senior engineers, with more than 10 years experience on the industry technology, and devote themselves to the strict QC and the thoughtful services, besides, we can talk about the client's special demand efficiently to ensure their satisfaction.

We anticipate intensive cooperation with yourself and your company to our mutual benefit, and hereby offer professional products, active and efficient support, and worry-free after-sales service.

If you have any inquiries, contact us.  SKYPE :susan86861 .

Applications:

They are engaged in industries of oil

Specifications:

Competitive Advantage:

Turbine flowmeter
Temperature: -20C~120C
Output: 4~20mA, Pulse(Standard), RS485/RS232
Accuracy: +/-0.5% of full scale
