professional Absolute and Gauge Pressure Transmitter Rosemount 2051CG
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Type: | Gauge Pressure Transmitter | Accuracy: | 0.075% |
|---|---|---|---|
| Rangedown: | 100:1 | Range: | 0.5 To 2000 Psi |
| Stability: | Two Years Of 0.10% Stability | Material: | 316 L Stainless Steel And Alloy |
| High Light: | gage pressure transmitter,pressure transmitter rosemount |
||

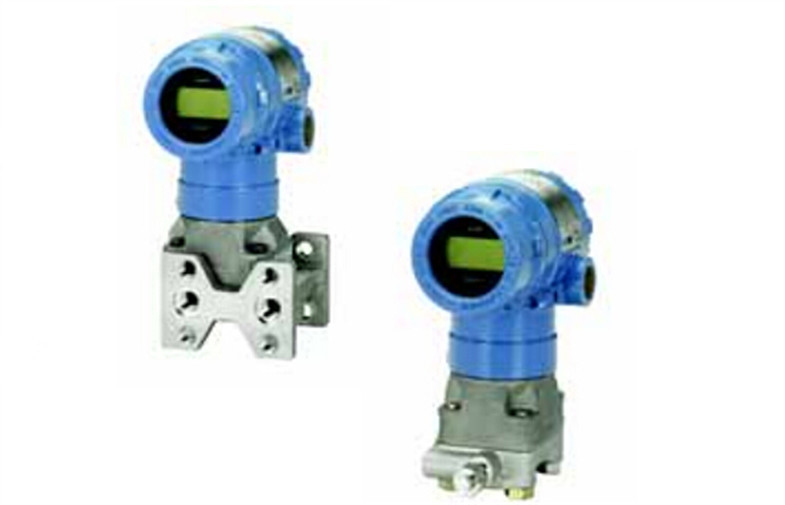

professional Absolute and Gauge Pressure Transmitter Rosemount 2051CG
Quick Detail:
• Performance of 0.075% accuracy, optional 0.065%
• Two-year stability of 0.10%,optional five-year stability
• Coplanar platform enables integrated manifold, primary element and remote seal solutions
• Calibrated spans/ranges from 0.5 inH2O to 2000 psi(1,2 mbar to 138 bar)
• 316L SST, Alloy C-276 and tantalum process wetted parts
Description:
Rosemount 2051 series pressure transmitter is specially designed for a wide range of application requirements.
It provides reference for accuracy of 0.075%, 100:1 range than, 2 years of stability.
Using strong commonality of common graphic platform design, the pressure,
Connection is the best process flow and level measurement applications.
2051 series pressure transmitter can provide comprehensive differential pressure,
Gage pressure and absolute pressure measuring scheme, thus satisfies the customer the pressure,
Liquid level and flow measurement requirements.
1. Product decription
The Rosemount 2051CG pressure transmitter is one member of the pressure transmitter series of
Rosemount company,prividing a reliable differential, gage, and absolute pressure measurement with a
variety of output protocols, materials and process connections.
2. Product feature
Performance of 0.075% accuracy, optional 0.065%
Two-year stability of 0.10%, optional five-year stability
Coplanar platform enables integrated manifold, primary element and remote seal solutions
Calibrated spans/ranges from 0.5 inH2O to 2000 psi(1,2 mbar to 138 bar)316L SST, Alloy C-276 and
tantalum process wetted parts
Recommended replacement for the Rosemount 1151
Applications:
Rosemount 2051CG Pressure transmitters provide reliable Gage pressure measurement.
Specifications:
| output: | 4-20 mA with digital signal based on HART Protocol; Low Power, 1-5 V dc with digital signal based on HART Protocol; Low power, 0.8-3.2 V dc with digital signal based on HART Protocol, optional |
| range: | 0-0.3 to 0-10,000 psi |
| accuracy: | 1-5: +/-0.075% of span |
| power: | 4-20 mA: 10.5-55 V dc with no load Low Power: 6-12 V dc with no load |
| materials: | Sensor Wetted Parts: SST, Hastelloy, Monel, Tantalum, Gold Plated SS, Gold Plated Monel |
| fluid: | Sensor fill fluid: Silicone, Inert (Halocarbon) |
| mounting: | Coplanar and Traditional flanges and Adapters: Cadmium and Nickel-plated CS, 316 SST |
Competitive Advantage:
- Manufactured by Rosemount
- Reference Accuracy of 0.075%, optional 0.065%
- Two-year stability of 0.10%, optional five-year stability
- Rangeability of 100:1
- Calibrated spans/ranges from 0.5 inH2O to 2000 psi (1,2 mbar to 276 bar)
- Protocols available include 4-20 mA HART, FOUNDATION fieldbus, 1-5 Vdc HART Low Power
- 316L SST and Hastelloy C-276 process wetted parts
- Coplanar platform enables integration of primary elements, manifolds, and diaphragm seal solutions
