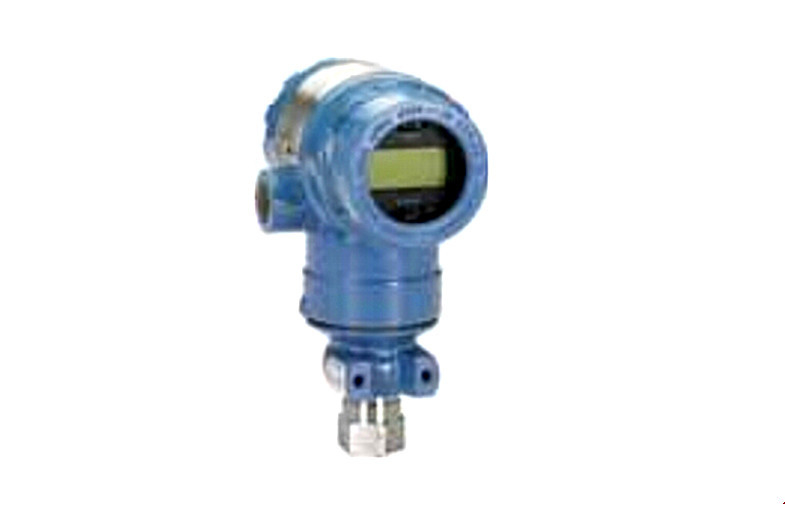

Rosemount 2051TG Gauge Pressure Transmitter with accuracy 0.065%

Rosemount 2051TG Gauge Pressure Transmitter with accuracy of 0.065% and 5 year stability

Quick Detail:

• Reference Accuracy of 0.075%
• Rangeability of 100:1
• Protocols available include 4-20 mA HART® FOUNDATION™fieldbus, 1-5 Vdc HART Low Power
• Coplanar™ platform enables integration of primary elements, manifolds, and remote seal solutions
• Complete pressure transmitter family to meet your pressure, level, and flow needs

Description:

The Rosemount 2051T pressure transmitter offers absolute or gage pressure measurements to 10,000 psi with advanced capabilities designed to meet a wide range of applications and to easily integrate into existing or new installations.

The versatile Rosemount 2051T pressure transmitter has a standard reference accuracy of 0.075% along with 100:1 rangedown and extended two-year stability of 0.10% to provide confidence in your pressure measurements. For applications demanding even more precision, an enhanced accuracy of 0.065% with 5-year stability is available as an option.

The Rosemount 2051T pressure transmitter is available with a range of process connections and features 316L stainless steel and Hastelloy ® C-276 process wetted parts. The Rosemount 2051T pressure transmitter is also available with a wide range of hazardous area certifications.

Output options available to the Rosemount 2051T pressure transmitter include 4-20mA HART, Low Power HART, or FOUNDATION fieldbus output protocols. The Rosemount 2051T pressure transmitter offers so many options that it can be configured for any application.

Applications:

Rosemount 2051T In-line Pressure transmitters provide reliable Gage and
Absolute pressure measurement in a compact in-line design.

Specifications:

Competitive Advantage:

• Manufactured by Rosemount
• Reference Accuracy of 0.075%, optional 0.065%
• Two-year stability of 0.10%, optional five-year stability
• Rangeability of 100:1
• Pressure ranges of 30, 150, 800, 4000and 10,000 psi
• Protocols available include 4-20 mA HART, FOUNDATION fieldbus, 1-5 Vdc HART Low Power
• 316L SST and Hastelloy C-276 process wetted parts
