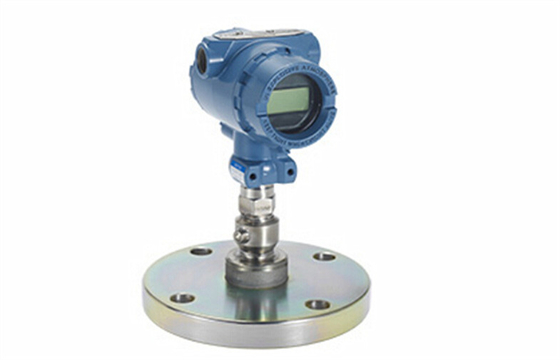

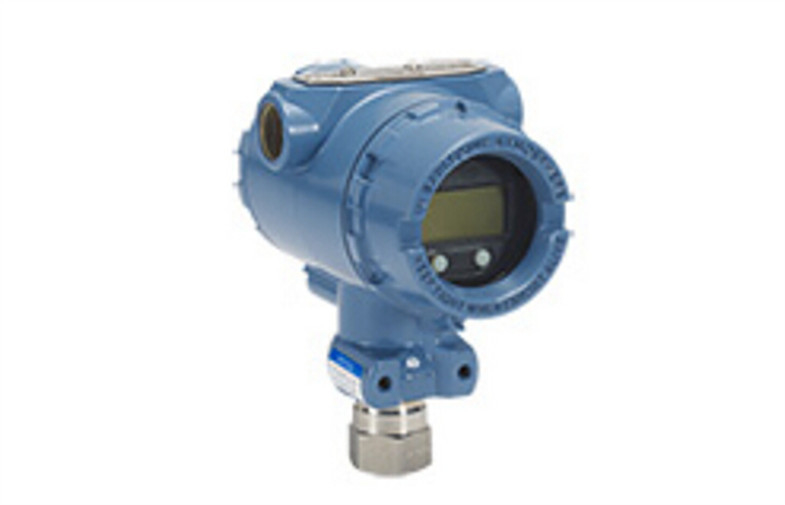

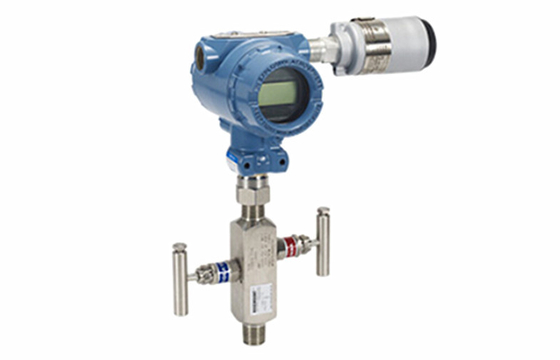

Smart Stable Gauge Pressure Transmitter Hart protocol Rosemount 2088

Smart Stable Gauge Pressure Transmitter Hart protocol Rosemount 2088

Quick Detail:

1.   Performance of 0.065% with High Accuracy option
2.   Lightweight, compact design for cost-effective installation
3.   Protocols available include 4-20 mA HART® and 1-5 Vdc HART Low Power
4.   Absolute and gage pressure ranges up to 4,000 psi (276 bar)
5.   Rangeability of 50:1

Description:

The Rosemount 2088 pressure transmitter provides accurate, stable, and reliable pressure measurement in difficult applications. The small compact design allows the Rosemount 2088 pressure transmitter to be directly connected to a process - providing a quick, easy, and cost effective installation.

The Rosemount 2088 pressure transmitter provides superior measurement capability that can be used for almost any line pressure or tank level applications. The Rosemount 2088 pressure transmitter is available in either gauge or absolute pressure in pressure ranges to 4,000 psi (275 bar). The Rosemount 2088 pressure transmitter utilizes a solid-state, polysilicon pressure sensor with a choice of either 316L or Hastelloy C-276 isolating diaphragms. The low oil fill of this design has very little temperature effect and outstanding accuracy.

The Rosemount 2088 pressure transmitter is suitable for almost any location in which value is a priority. Its patented piezoresisitive silicon sensor, dual-compartment housing, and compact, lightweight design adds up to a reliable, convenient, an economical installation wherever it is applied. The Rosemount 2088 pressure transmitter is designed with reliability, long-term performance, and maintainability in mind.

Applications:

Proven Reliability for Gage and Absolute
Applications

1.  Available protocols include 4-20 mA HART® and 1-5 Vdc HART Low Power
2.  Fully Configurable LCD to display process variable, percent of range, and diagnostic messages
3. Lightweight, compact design enables easy installation
4. Choice of Stainless Steel or Alloy C-276 wetted materials

Specifications:

Competitive Advantage:

• Manufactured by Rosemount
• Absolute of gage pressure measurement
• For pressures up to 4000 psi
• Accuracy: ±0.10%
• Rangeability: 20:1

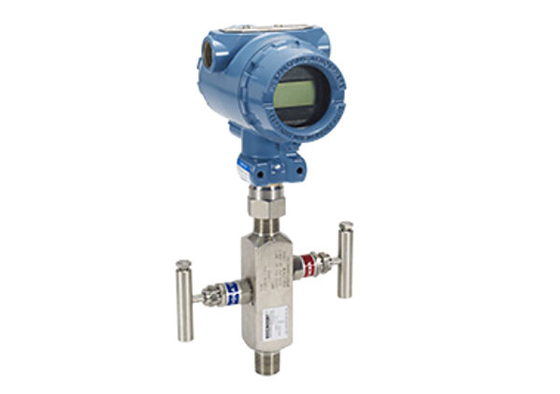

• Integral manifold
• Stainless steel or Hastelloy wetted materials
• Smart communications
• External push button zero and span capabilities
