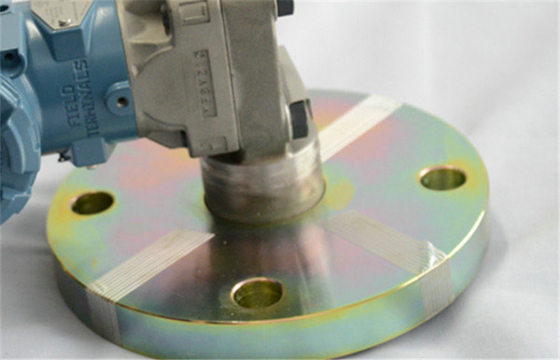

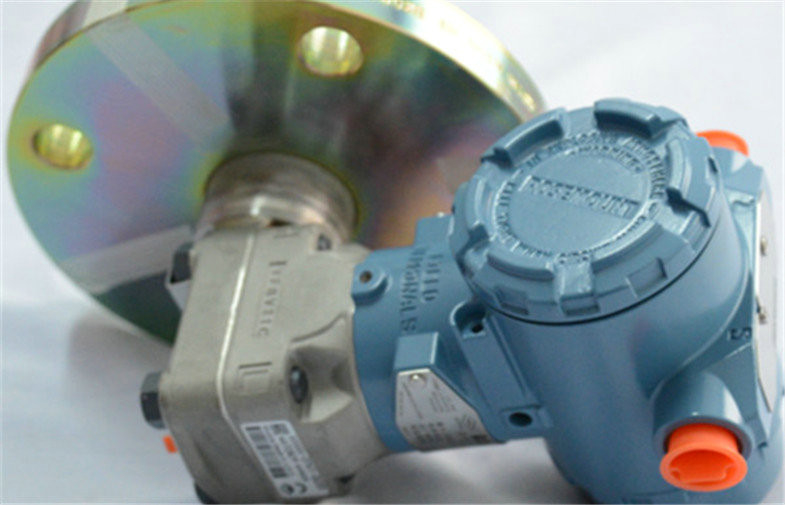

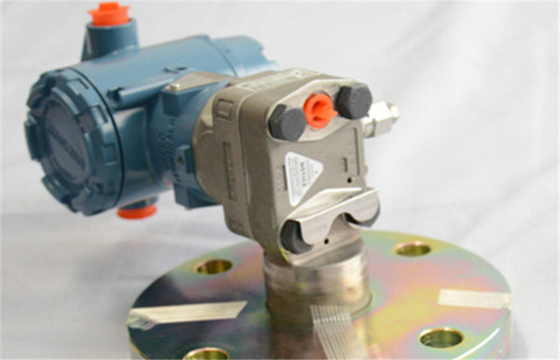

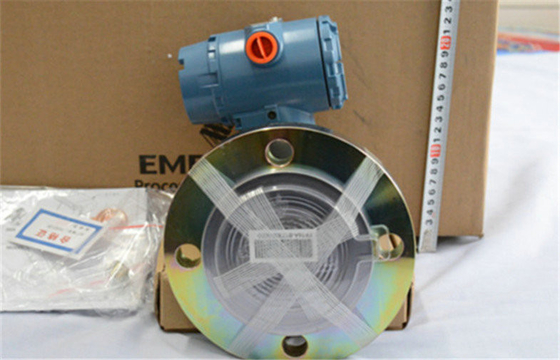

3051L Rosemount precision Rosemount Level Transmitter for tank configurations

3051L Rosemount  Level Transmitter provides precision level and specific gravity measurement for tank configurations

Quick Detail:

• Compact and lightweight for easy installation and maintenance
• Remote seal option provides flexible measurement capability
• 100:1 rangeability
• Up to 0.075% accuracy
• Flush and extended diaphragms
• Multiple fill fluids and wetted materials available

Description:

The Rosemount 3051L liquid level transmitter provides precision level and specific gravity measurement for a wide variety of tank configurations. Based on proven capacitance cell technology, the Rosemount 3051L liquid level transmitter is designed for applications requiring the highest levels of accuracy and performance, such as inventory control, material balance, and head box.

With many diaphragm and flange options to fit all process and installation needs, the Rosemount 3051L liquid level transmitter is engineered to be the perfect fit for nearly any application. The Rosemount 3051L liquid level transmitter offers accuracy up to 0.075% of span and 100:1 rangeability. A welded fill fluid system provides best-in-class system reliability. The Rosemount 3051L liquid level transmitter is configurable with multiple wetted materials and fill fluids. A wide range of options and hazardous area approvals are also available. Output options available to the Rosemount 3051L liquid level transmitter include 4-20mA or 1-5VDC with HART protocol, Profibus, or FOUNDATION fieldbus.

Applications:

With many diaphragm and flange options to fit all process and installation needs, the Rosemount 3051L liquid level transmitter is engineered to be the perfect fit for nearly any application. The Rosemount 3051L liquid level transmitter offers accuracy up to 0.075% of span and 100:1 rangeability. A welded fill fluid system provides best-in-class system reliability. The Rosemount 3051L liquid level transmitter is configurable with multiple wetted materials and fill fluids. A wide range of options and hazardous area approvals are also available. Output options available to the Rosemount 3051L liquid level transmitter include 4-20mA or 1-5VDC with HART protocol, Profibus, or FOUNDATION fieldbus.

Specifications:

Rosemount 3051L Liquid Level Transmitter

Competitive Advantage:

1. The Industry Standard in Performance and Reliability The 3051C coplanar sensor delivers best-in-class performance in over 4 million installations around the world

2. Fully Integrated Level Solution The 3051L design offers an out-of-the-box ready level solution to eliminate on-site assembly, testing, and calibration

3. Tuned-System™ Assembly Provides Optimized Performance Tuned-System assemblies can reduce temperature effects by 10-20% and improve response time by over 80%

4. Optimized Seal System Construction Rosemount Seal Systems are constructed for reliability, high performance and flexibility to ensure a quality product that meets your standards
