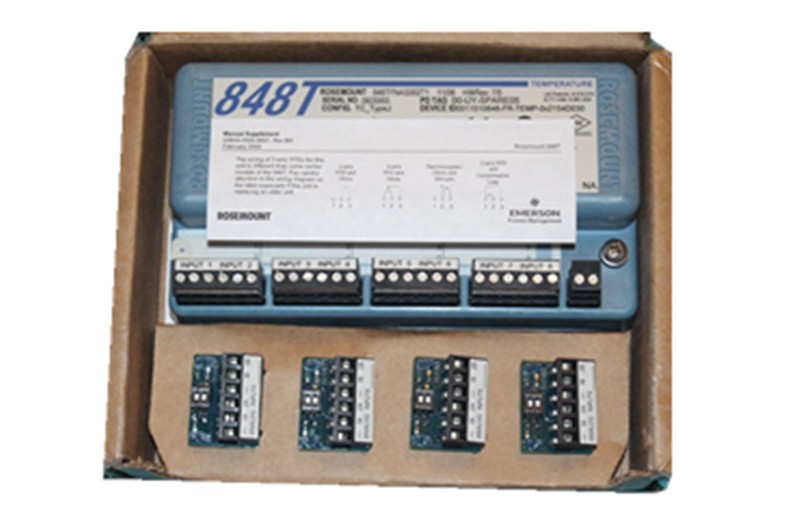

High Density Temperature Measuring Instruments Rosemount 848T

High Density Temperature Measuring Instruments Rosemount 848T

Quick Detail:

· High density applications

· Multi-sensor measurement capabilities

· Accuracy:

o ±0.30°C (±0.54°F) for Pt100 RTD

o ±0.70°C (±1.26 °F) for Type J Thermocouple

· Measurement validation diagnostic option

· Approximately 1.5 seconds to read all 8 inputs

· 0–99% non-condensing relative humidity

· Transmitters are tested to high pipeline vibration

Description:

The Rosemount 848T Foundation Fieldbus Temperature Transmitter simplifies and reduces the cost of a plant's process control architecture. It replaces traditional temperature monitoring methods (wired direct, low cost single input transmitters, and multiplexers) with an intrinsically safe, eight input transmitter that mounts close to the process. The industry first Measurement Validation Diagnostic available on the Rosemount 848T Fieldbus transmitter provides insight into your process and can identify measurement abnormalities before they become a major issue, saving your time and money associated with process shutdowns and helping you run your process more efficiently. The 848T also comes with a new Device Dashboard, which gives users a clear view of everything needed to evaluate, diagnose, and configure the 848T. The new interface leverages Human Centered Design principles to create a streamlined, easy and efficient user experience, eliminating the complexities, and allowing the user to realize the benefits of FOUNDATION fieldbus.

Applications:

• Chemical Manufacturer Avoids Shutdowns by Using Fieldbus Technology
• Rosemount Temperature Transmitter Prove Best Practice on Project in India
• Biotech Company Reduces SIP Cycle Time by 20%, Leading to Minimized Product Contamination
• Glass Furnace Temperature Upgrade Saves $31,000 and Reduces Maintenance
• Pharmaceutical Company Saves Commissioning Time and Costs
• Temperature Instruments Secure Critical Start-Up Deadline on Lube Oil Project
• Pulp and Paper Mill Saves on Installation Costs
• Bearing Monitoring Prevents Costly Refinery Shutdown
• Sugar Plant Improves Safety, Productivity with Insights Provided by Temperature Technologies

Specifications:

Competitive Advantage:

· Four independently configurable RTD, thermocouple, ohm, millivolt and 4 - 20 mA signals

· Lowers installed cost by eliminating long wire runs to the control room

· Dependable performance by enhancing measurement reliability for trustworthy data

· Simplified installation and configuration practices for faster start-ups

· Fully compatible with WirelessHART networks with greater than 99% data reliability

· Eight user configurable alerts for advanced measurement monitoring

· Temperature sensor diagnostics for continuous monitoring of sensor integrity

· Type 4x, IP66 housings allows for installation in harsh process environments

· Best ambient temperature compensation reduces measurement error in harsh applications, especially for wide fluctuations of ambient temperature
